T300 Series Clothes Dryer (Condenser)
4. Use the long fixing lever, Part no. C 2627, or a long screwdriver to
slacken the drive belt as in Figure 5-12 and remove it from the drive
pulley.

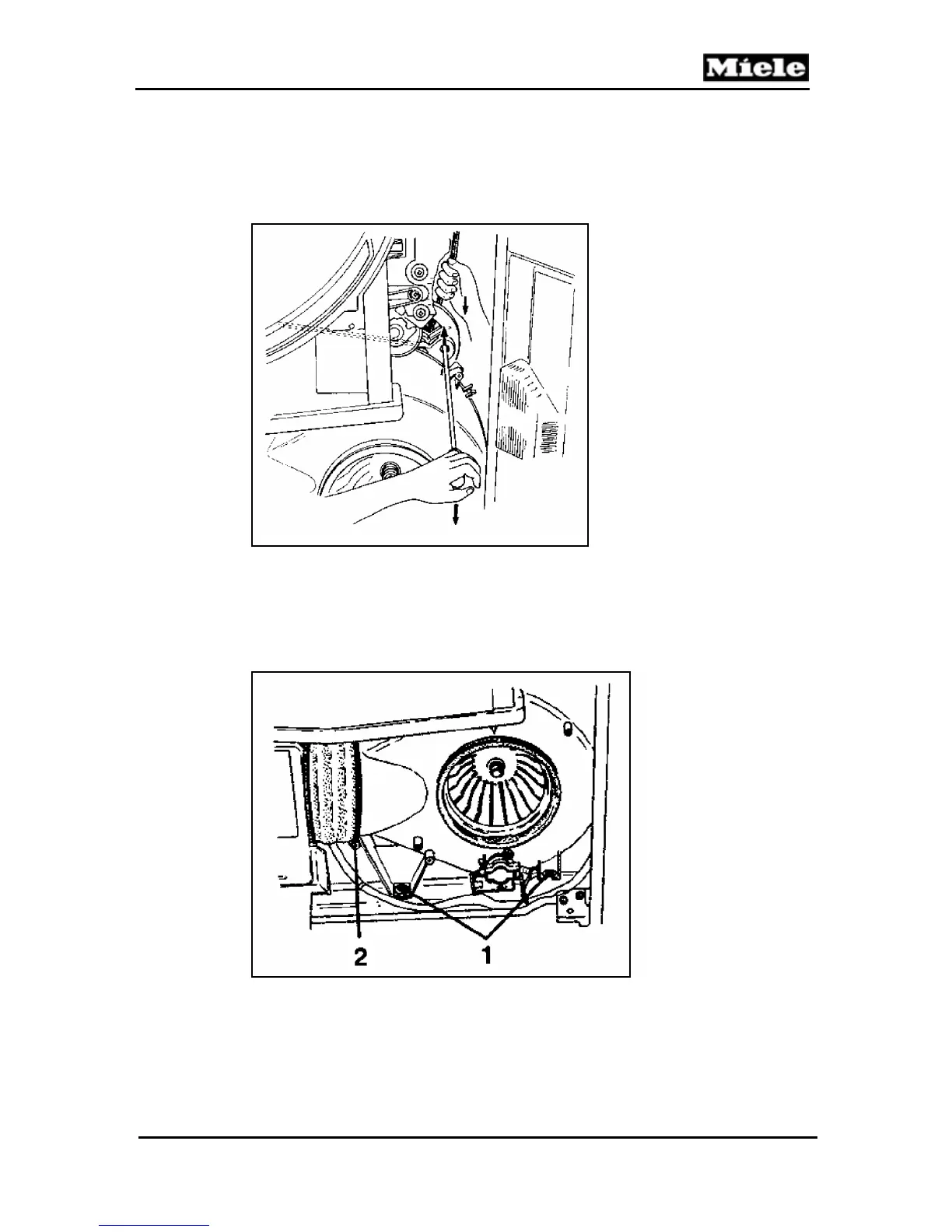

Figure 5-12: Removing the Drive Belt
5. Remove the two screws (refer to Figure 5-13 – Removing the Pump).
6. Loosen the clip; refer to Figure 5-13, Item 2, disconnect the hose and
remove the pump.
Figure 5-13: Removing the Pump
