Miele T300 - T 368 C, T 369 C-2 with EF 202 (Tester A5300)

Technical Information
T300 Series Clothes Dryer (Condenser)
6.2.3 T 368 C, T 369 C-2 with EF 202 (Tester A5300)
1. Open the front panel – Refer to Section 5.2.
2. Connect the 7-pole plug on the test module to the 7-pole socket
(service connection) on the electronic unit (refer to Figure 6-1 –
Connecting the 7-Pole Plug, Item 1). If necessary, remove the
electronic unit’s top retaining screw (Figure 6-1, Item 2), but ensure
that the connections are not loosened.

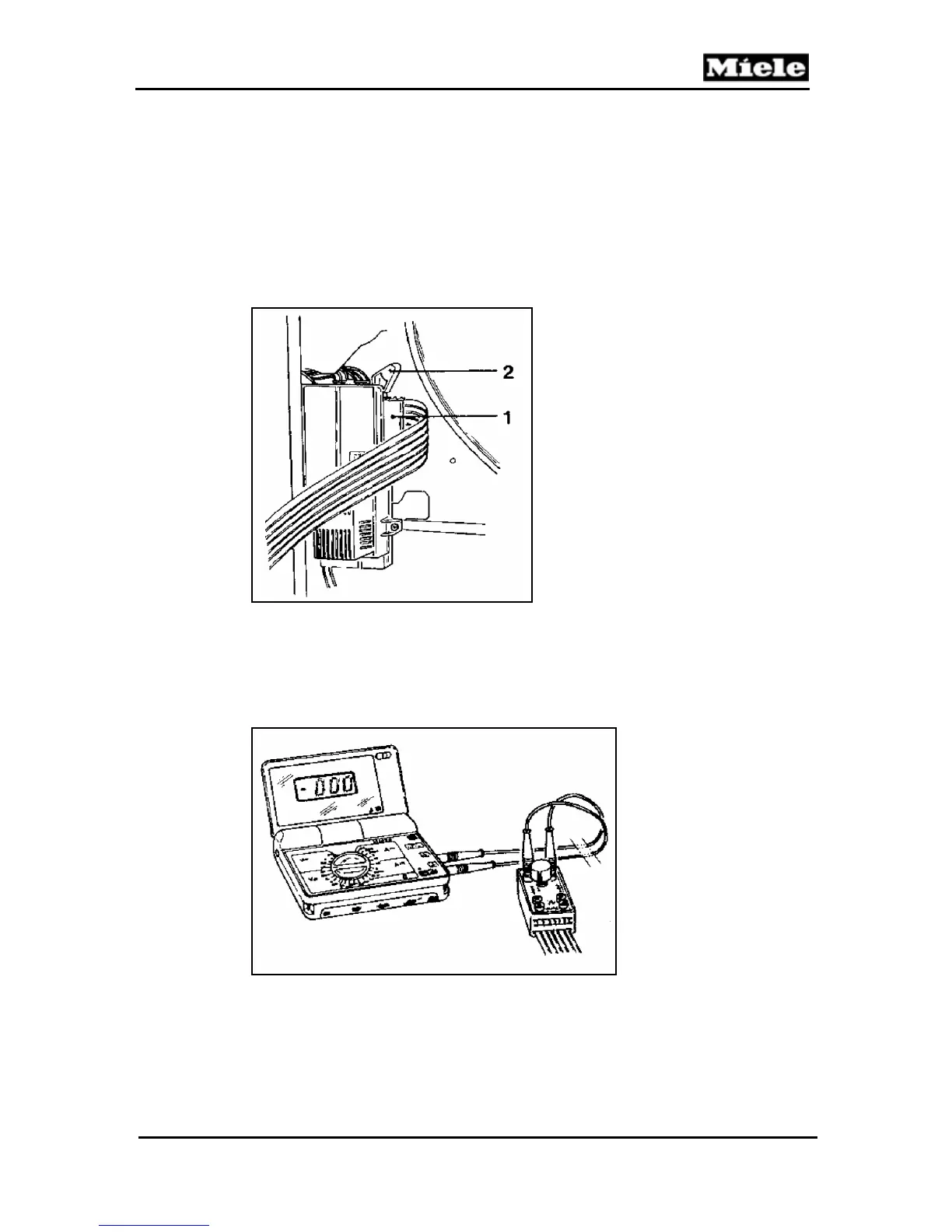

Figure 6-1: Connecting the 7-Pole Plug
3. Connect a multimeter to the test module by plugging into the sockets
near the rotary knob (refer to Figure 6-2 – Connecting a Multimeter).
4. Refer to Table 6-5 – Test Chart when carrying out the tests.
Figure 6-2: Connecting a Multimeter
53
