Miele T300 - T 377 C, T 378 C; Figure 5-5: Electrical Components (T 377 C, T 378 C)

Technical Information
T300 Series Clothes Dryer (Condenser)
5.3.4 T 377 C, T 378 C
b1/2 On/Off Switch k1 Capacitor for m2
b1/3 Door Contact – Switch A k2 Capacitor for m3
b1/3 Door Contact – Lock B k3 Suppressor
b1/3 Door Contact – Light C m1 Timer Motor
b2 Level Switch m2 Drum Drive Motor
b4 Temp. Regulator m3 Fan Motor
b5 Temp. Limiter m4 Condensate Pump
b6 Temp. Limiter P Timer
d1 Relay – Step/Level r1 Heater Bank
d2 Relay – Cutout u1 Electronic Unit
h1 Buzzer u2 Residual Moisture Sensor
h2 Level Indicator Lamp
h3 Drum Lighting

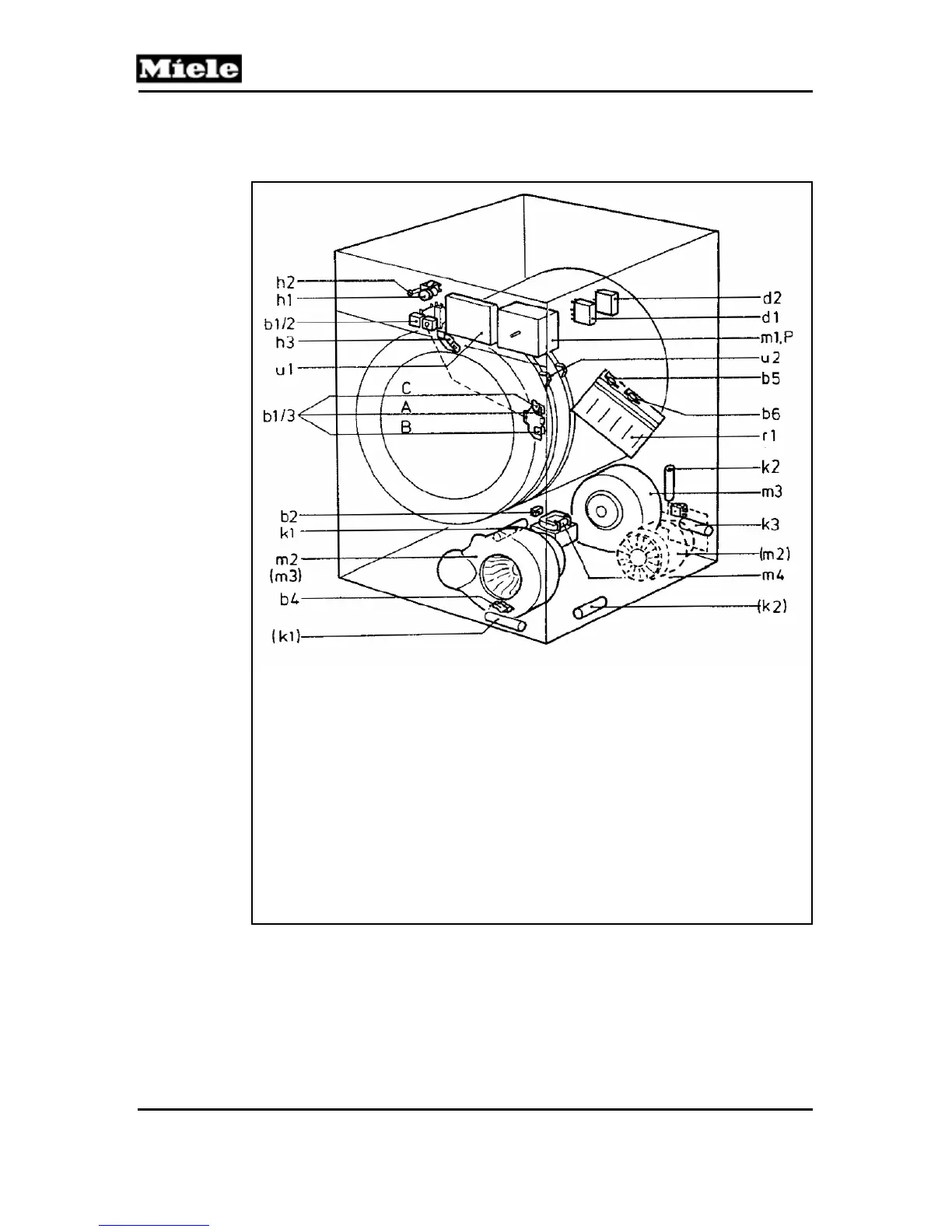

Figure 5-5: Electrical Components (T 377 C, T 378 C)
