Miele T300 - Figure 5-4: Electrical Components (T 369 C-2)

Technical Information
T300 Series Clothes Dryer (Condenser)
5.3.3 T 369 C-2
b1/1 Switch Light h3 Drum Lighting
b1/2 On/Off Switch k1 Capacitor for m2
b1/3 Door Contact – Switch A k2 Capacitor for m3
b1/3 Door Contact – Lock B k3 Suppressor
b1/3 Door Contact – Light C m1/1 Timer Motor - Transport
b2 Level Switch m1/2 Timer Motor - Reversal
b3 Temp. Selector Switch m2 Drum Drive Motor
b4 Temp. Regulator m3 Fan Motor
b5 Temp. Limiter m4 Condensate Pump
b6 Temp. Limiter P Timer
c1 Door Lock Relay r1 Heater Bank
h0 Indicator Lamp u1 Electronic Unit
h1 Buzzer u2 Residual Moisture Sensor
h2 Level Indicator Lamp

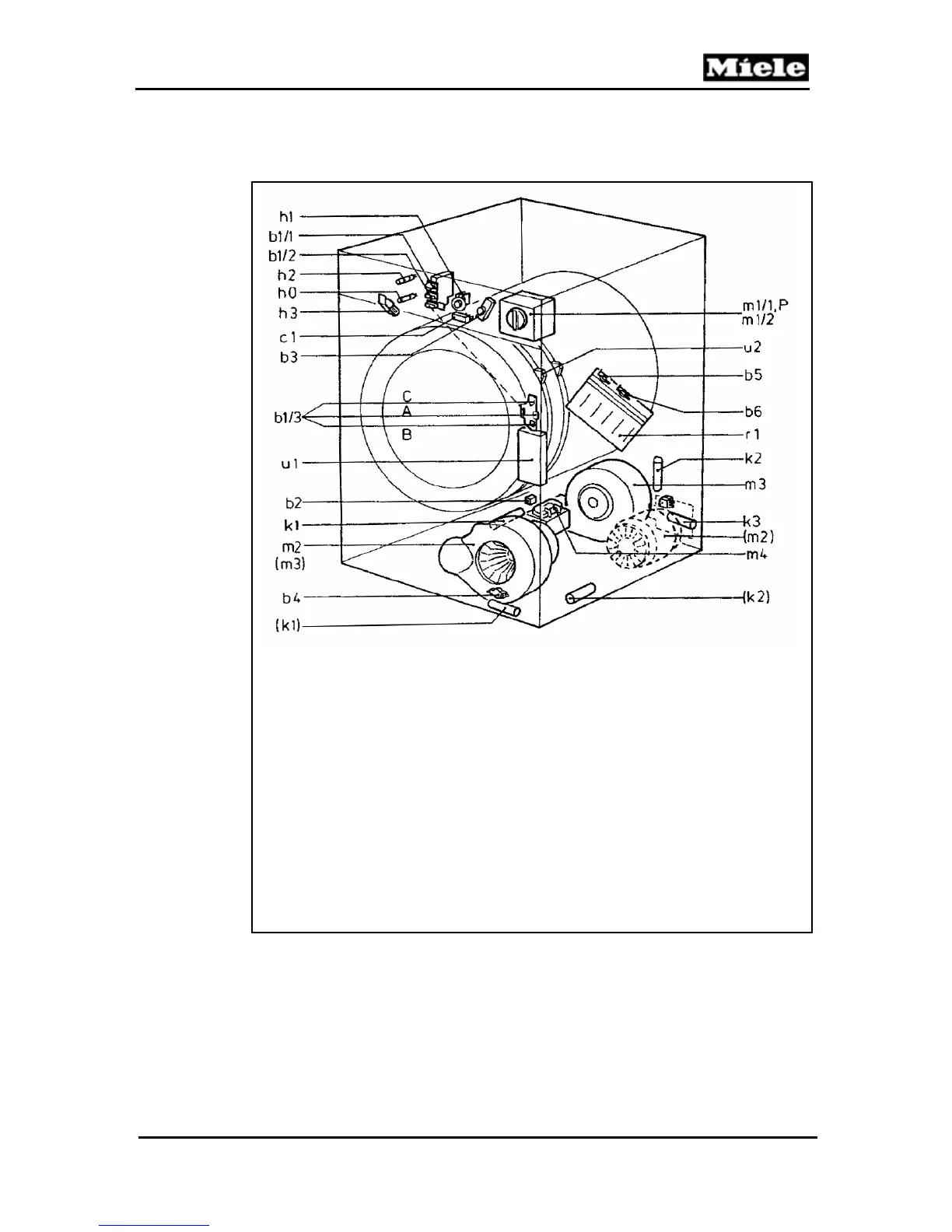

Figure 5-4: Electrical Components (T 369 C-2)
