Miele T300 - Drum Drive Motor; Removal

Technical Information
T300 Series Clothes Dryer (Condenser)
5.10 Drum Drive Motor
5.10.1 Removal

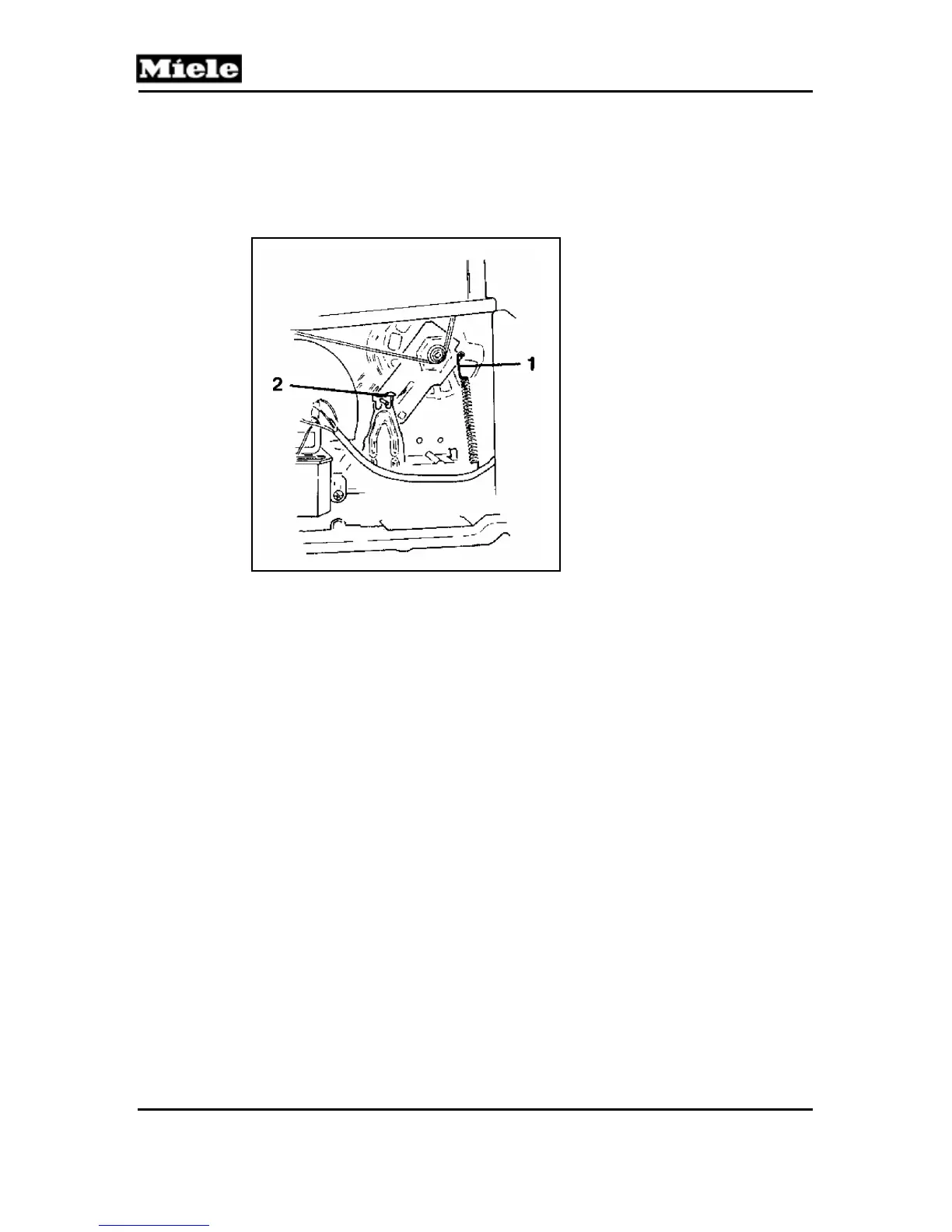

Figure 5-16: Drum Drive Motor Removal
1. Open the front panel – refer to Section 5.2.1.
2. Remove the fan unit – refer to Section 5.6.1.
3. Unclip the spring; refer to Figure 5-16 – Drum Drive Motor Removal,
Item 1, and release the drive belt from the pulley.
4. Remove the pivot bolt retainer (refer to Figure 5-16, Item 2).
5. Lift the motor slightly and withdraw the bolt.
36
