Miele T300 - T 377 C, T 378 C with EPW 304

Technical Information
T300 Series Clothes Dryer (Condenser)
6.2.2 T 377 C, T 378 C with EPW 304
Prior to testing ensure that the address inputs are correct. For measuring,
connect one magnetic lead to the rear panel and the other to one of the
ribs.

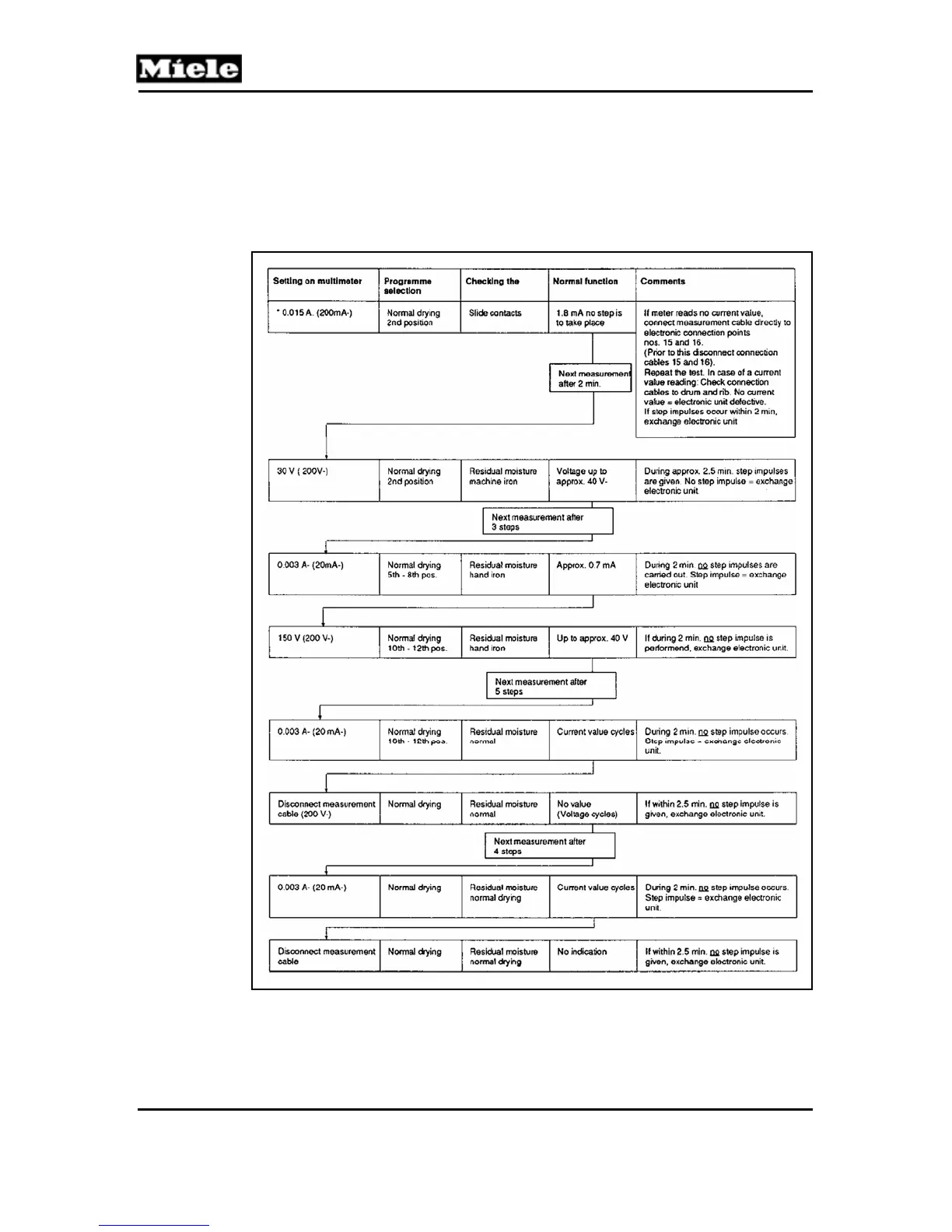

Table 6-4: T 377 C, T 378 C with EPW 304
* Measuring device. Elavi 5 (Measured values in brackets refer to
Metrawatt)
52
