Technical Information
T300 Series Clothes Dryer (Condenser)
5.4 Heater Bank
5.4.1 Heater Bank – Removal (Machine Nos. without a Prefix)

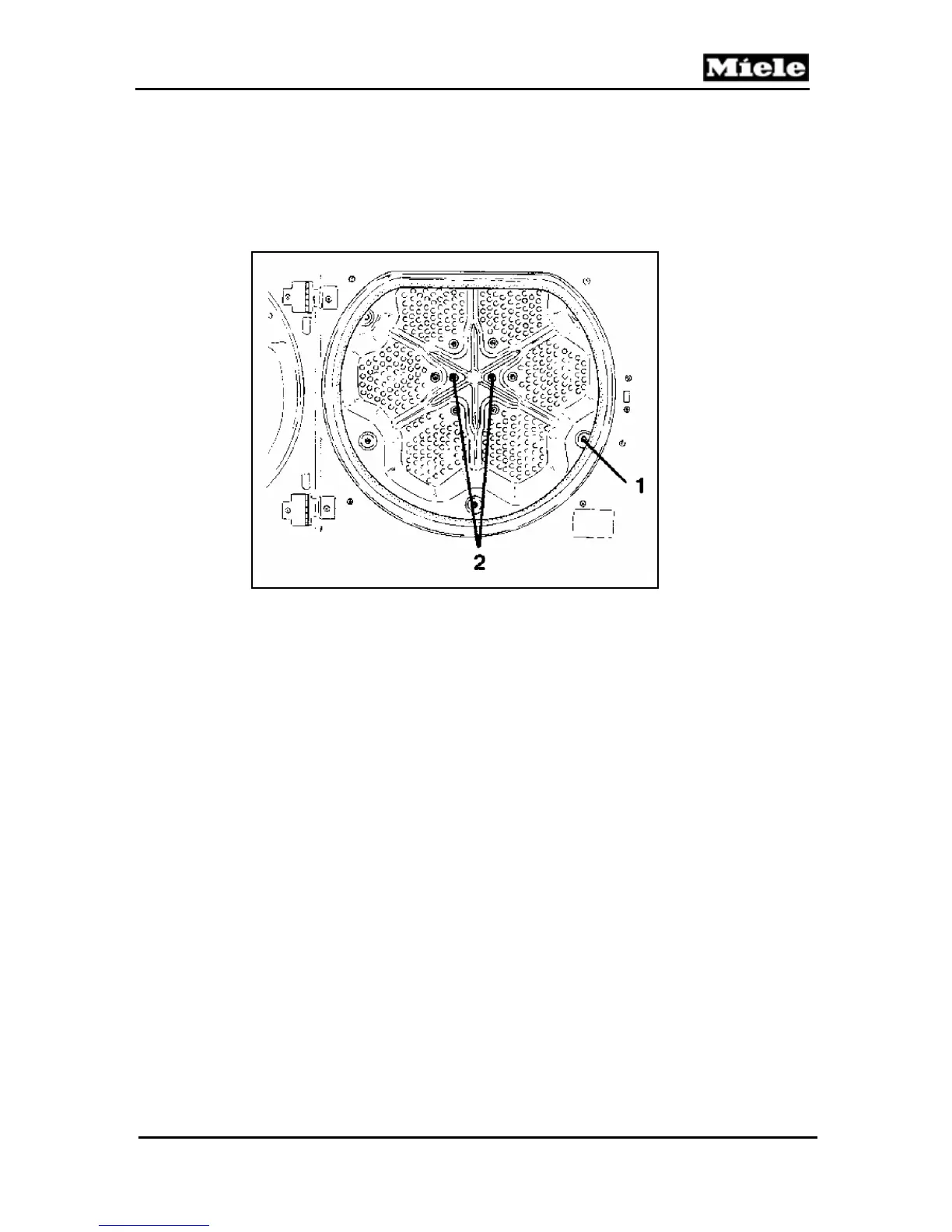

Figure 5-6: Heater Bank Removal 1
1. Remove the six screws on the rear inside panel of the drum (refer to
Figure 5-6 – Heater Bank Removal 1, Item 1).
2. Unscrew the two screws in the central bearing, (refer to Figure 5-6 –
Heater Bank Removal 1, Item 2).
3. Open the rear panel of the drum and lay it against the side. Refer to
Figure 5-7 – Heater Bank Removal 2.
4. Turn the retaining screws, refer to Figure 5-7 – Heater Bank Removal
2, Item 1, one turn to release the heater bank and remove it by pulling
upwards.
27
