Technical Information
T300 Series Clothes Dryer (Condenser)

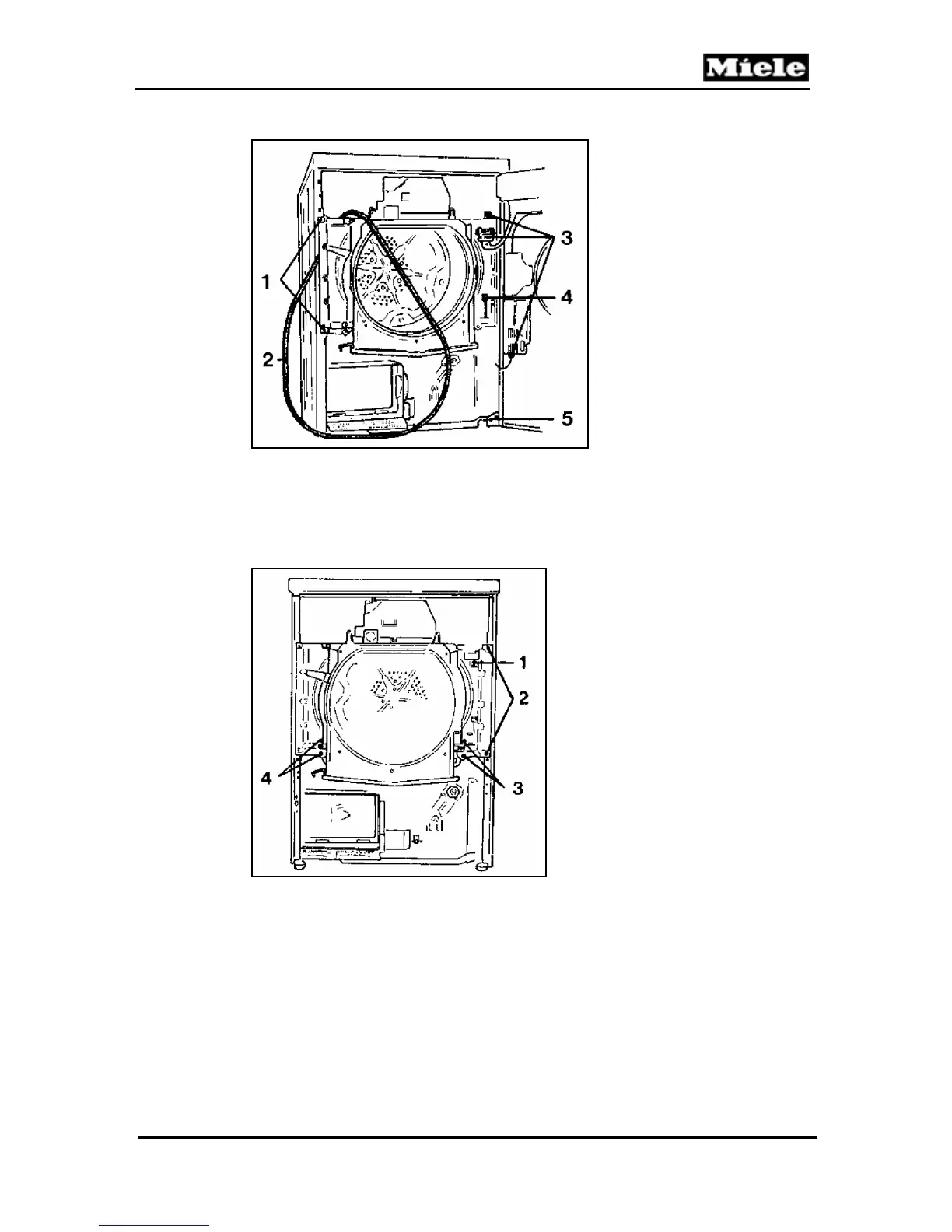

Figure 5-22: Drum Drive Belt Replacement 2
11. Disconnect the earthing wire (refer to Figure 5-22, Item 4).
12. Unscrew the lower hinge (refer to Figure 5-22, Item 5) and remove the
front panel.
Figure 5-23: Drum Drive Belt Replacement 3
13. Remove the screws (refer to Figure 5-23 – Drum Drive Belt
Replacement 3, Item 2) and ease open the bearing ring panel.
14. Slide the new belt through the gap between the bearing ring panel
and the appliance casing. Refit the bearing ring panel and screw it
tightly into place.
15. Slide the belt into position on the drum and then onto the drive pulley.
16. Replace removed parts in reverse order.
41
