Miele T300 - Cooling Fan Removal (Machine Nos. with Prefix 10; or 11;)

Technical Information
T300 Series Clothes Dryer (Condenser)
5.11.2 Cooling Fan Removal (Machine Nos. with Prefix 10/… or 11/…)
From Machine no: 11/8285912 T 368 C
10/8273006 T 369 C-2
10/8341291 T 377 C
10/8341312 T 378 C

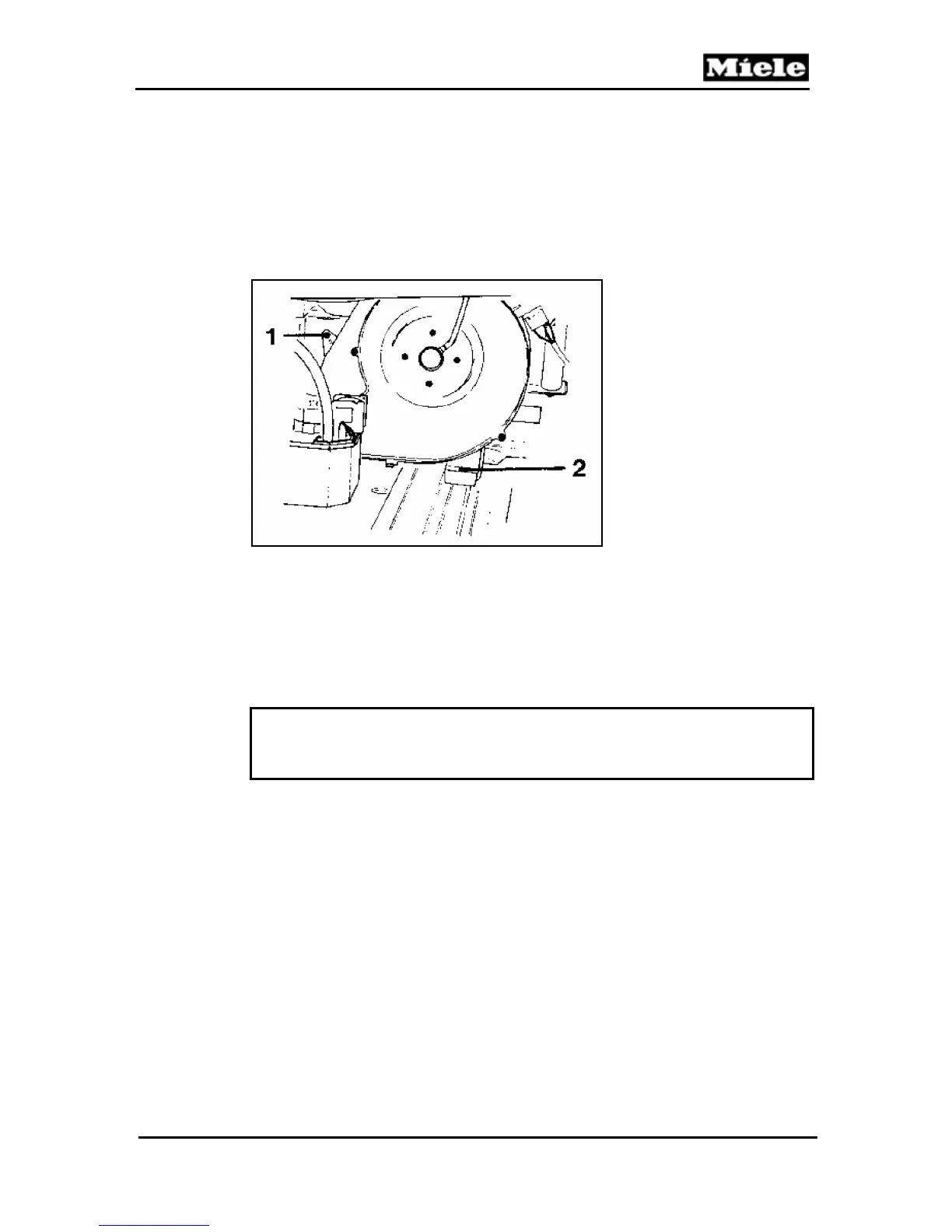

Figure 5-20: Cooling Fan Removal (Machine Nos. with Prefix 10/… or 11/…)
1. Open the front panel – Refer to Section 5.2.1.
2. Remove the fan unit – Refer to Section 5.6.1.
3. Remove screws (refer to Figure 5-20 – Cooling Fan Removal, Items 1
and 2).
4. Remove the fan.
Note:
When refitting the fan, ensure that the lower edge of the seal is correctly
located and projects in the condenser box.
39
