Miele T300 - Fan Unit; Removal (Machine Nos. Without Prefix)

Technical Information
T300 Series Clothes Dryer (Condenser)
5.6 Fan Unit
5.6.1 Removal (Machine Nos. without Prefix)

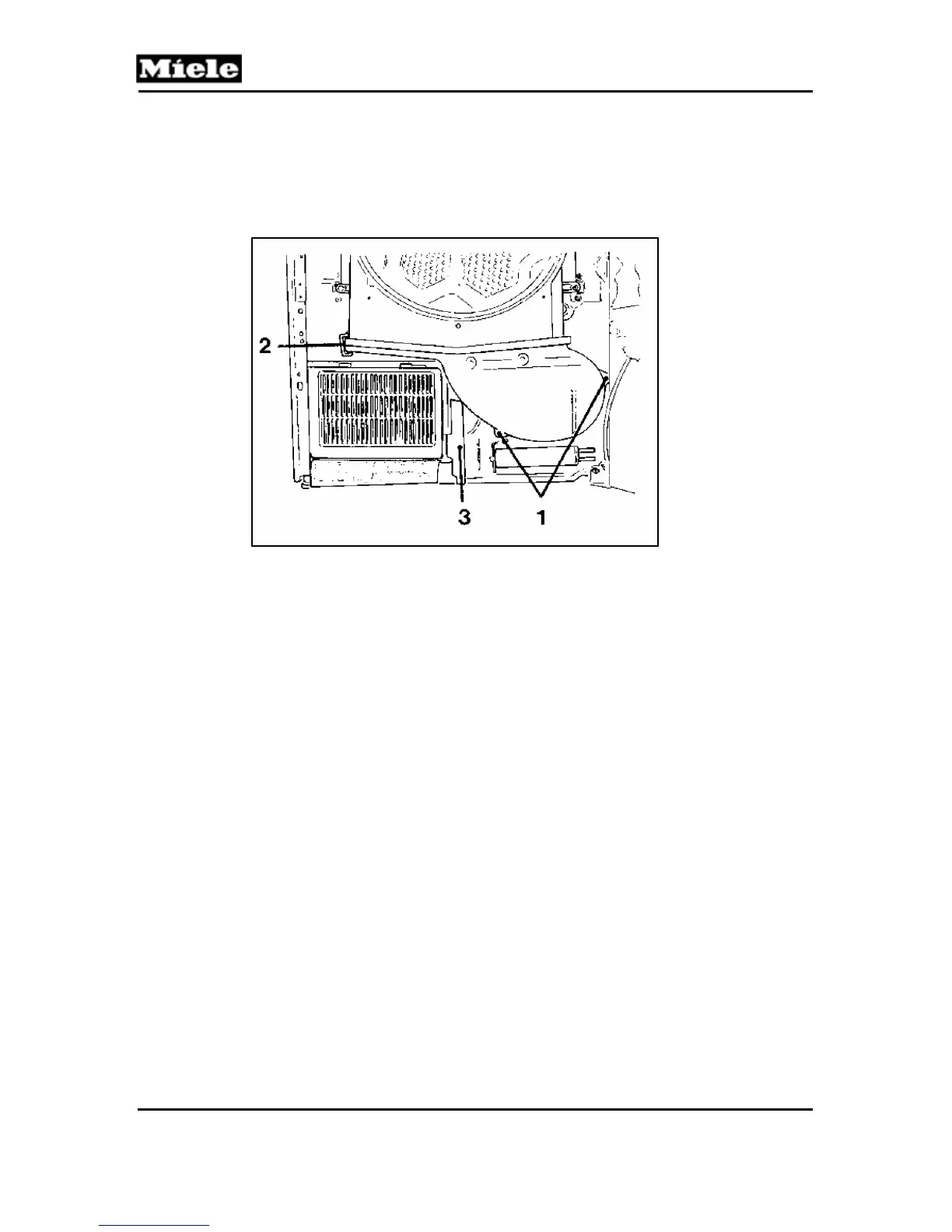

Figure 5-9: Fan Unit Removal 1
1. Open the Front Panel – refer to Section 5.2.1.
2. Remove the Plastic Plate (refer to Figure 5-9 – Fan Unit Removal 1,
Item 1).
3. Release the clip (refer to Figure 5-9, Item 2).
4. Remove the two screws on the vent duct (refer to Figure 5-9, Item 3).
5. Remove the exhaust vent duct by sliding it forward and down.
6. Loosen the two screws; refer to Figure 5-10 – Fan Unit Removal 2,
Item 1, by one turn.
7. Remove the two screws (refer to Figure 5-10, Item 2).
8. Loosen the clip; refer to Figure 5-10, Item 3, disconnect the hose and
remove the pump.
