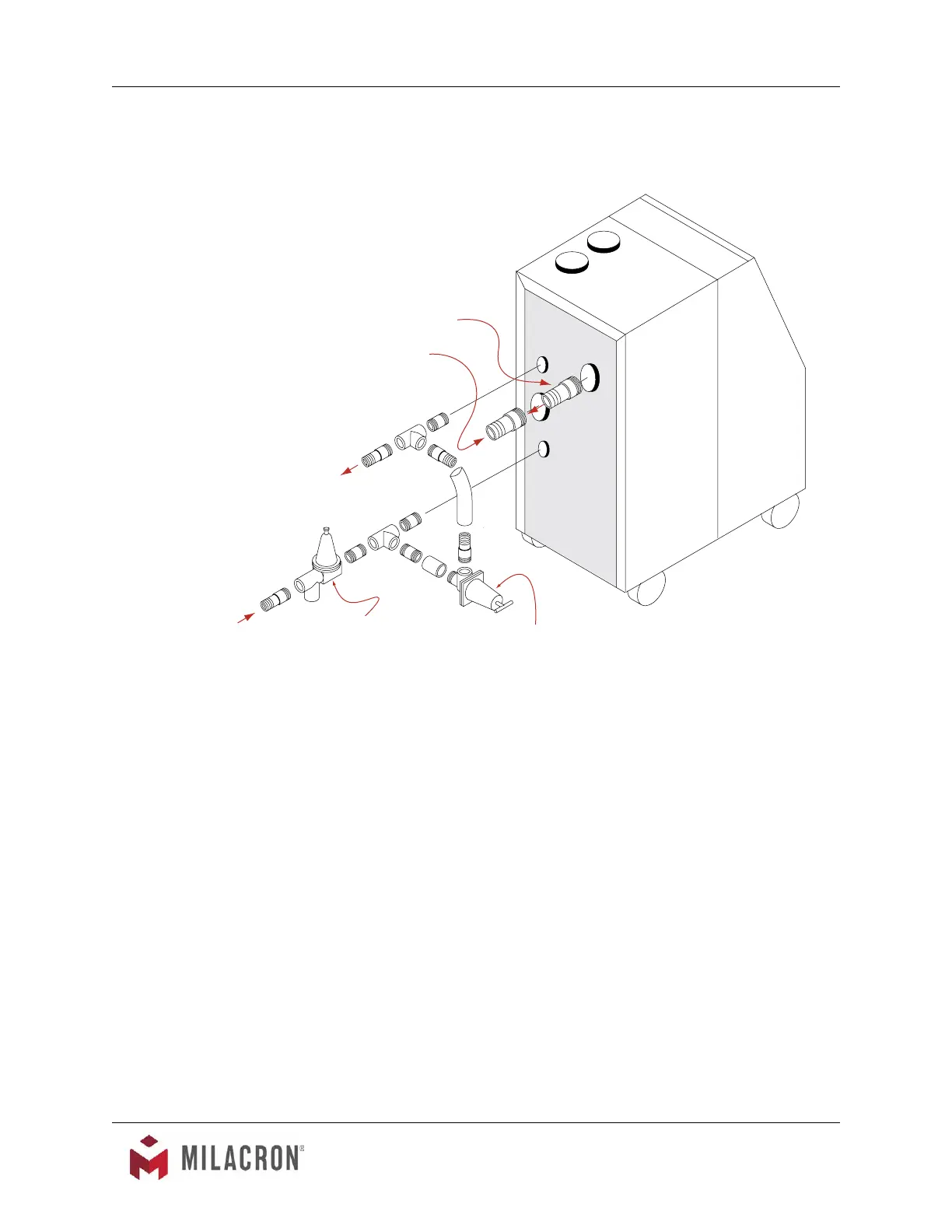

7.3 REGULATOR/BYPASS INSTALLATION
WATE
R
SUPPL
Y
PRESSURE REGULATOR VALVE
TYPE: WATTS U5B 1/2"
25-75psi RANGE.
BYPASS VALVE
TYPE: WATTS BP-30 1/2"
45-100psi RANGE.
DRAIN
FROM PROCESS
TO PROCESS
