MILACRON MFC-G - AVT Valve Components

Temperature Control Units : MFC with G Series Instrument
Page: 89
Milacron Process Support Business
4165 Halfacre Road Batavia, Ohio 45103
Phone: 513-536-2584
www.milacron.com
8.8 AVT
TM

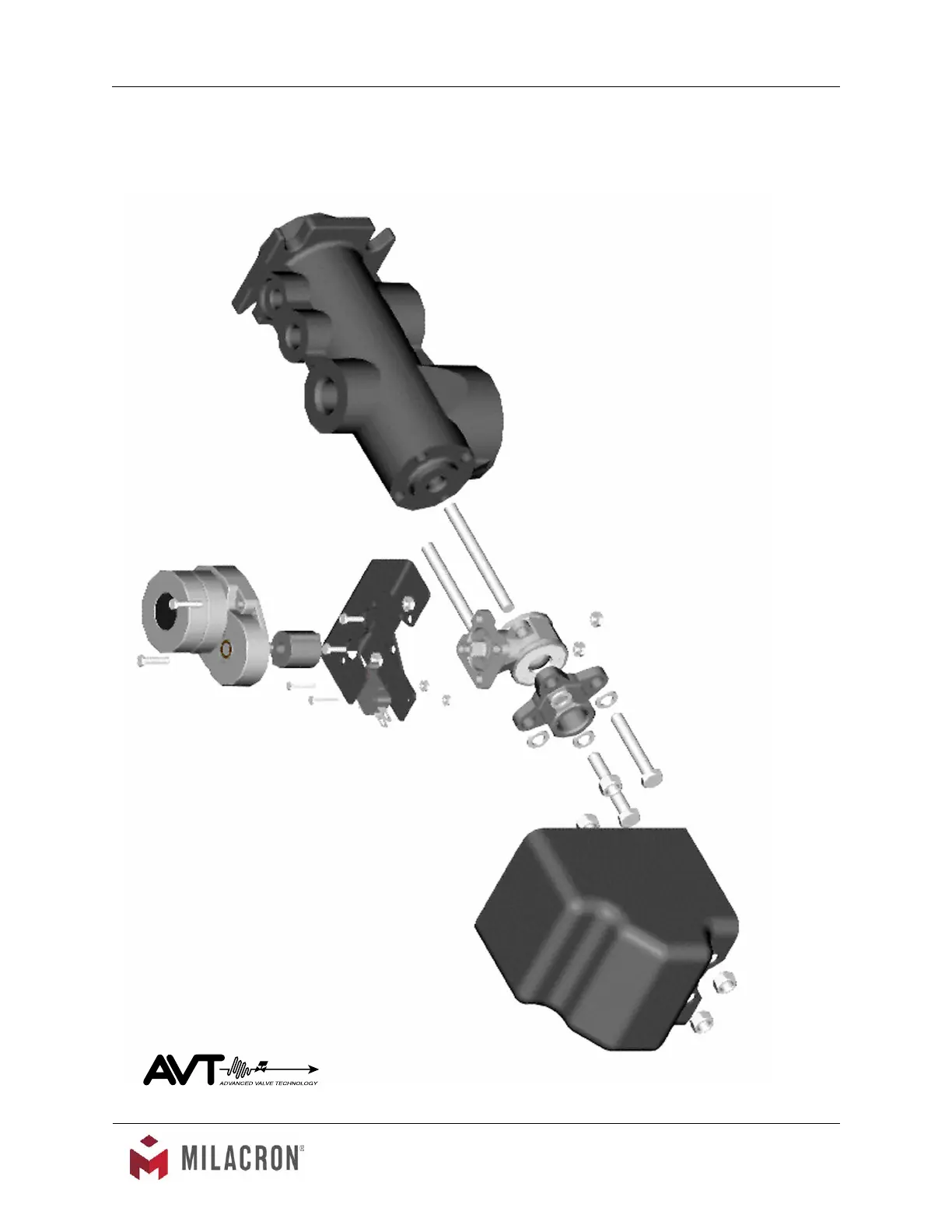

VALVE COMPONENTS
#8-32
Lock Nut
Motor
Bracket
#8-32 x 1/2” Hex
Head Screw
Valve
Coupling
#8-32 x 3/4” Hex Head Screw
Gear Box
#4-40 x 3/4” Hex Head Screw
Home Switch
#4-40 Lock Nut
5/16-18 x 2”
Hex Head Screw
5/16 Lock
Washer
#8-32
Lock Nut
#5/16-18 x 3-3/8”
Threaded Rod
Valve
Motor
Valve
Body
Cooling
Cylinder
