Invision 352 MPa
SECTION 6 − GMAW/GMAW-P/FCAW OPERATION

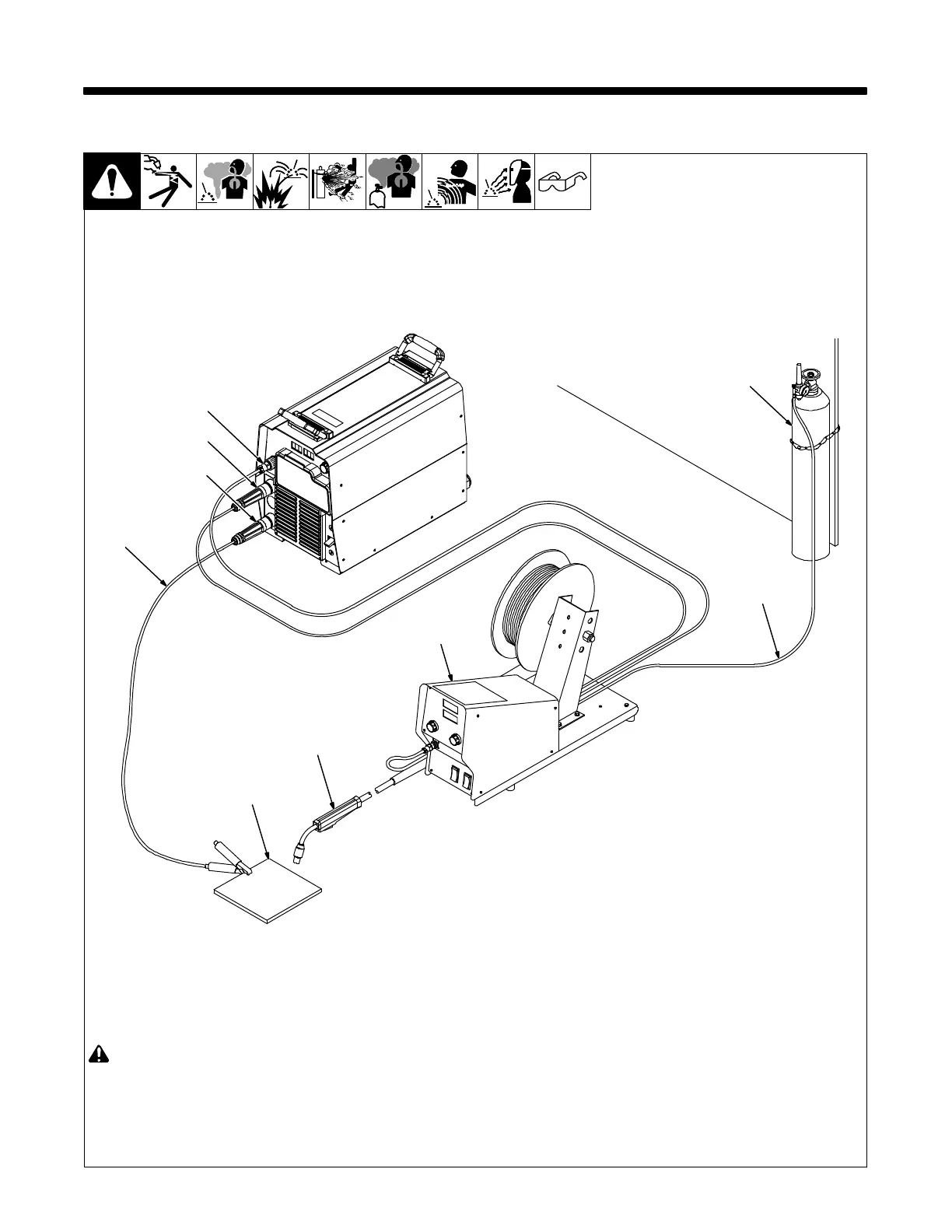

6-1. Typical Connection For Remote Control Feeder GMAW/GMAW-P/FCAW Process
! Turn off power before making
connections.
1 Remote 14-Receptacle
2 Positive (+) Weld Output Terminal
3 Negative (−) Weld Output Terminal
4 Ground Cable to Workpiece
5 Workpiece
6 Gun
7 Synergic Wire Feeder
8 Gas Hose
9 Gas Cylinder
Use of shielding gas is dependant on Wire
Type.
 The connection diagram illustrates
DCEP (reverse polarity) suitable for all
wires except self-shielded FCAW. The
majority of self-shielded FCAW wires
require DCEN (straight polarity).
2
3
4
5
1
6
7
8
9
805058-B
