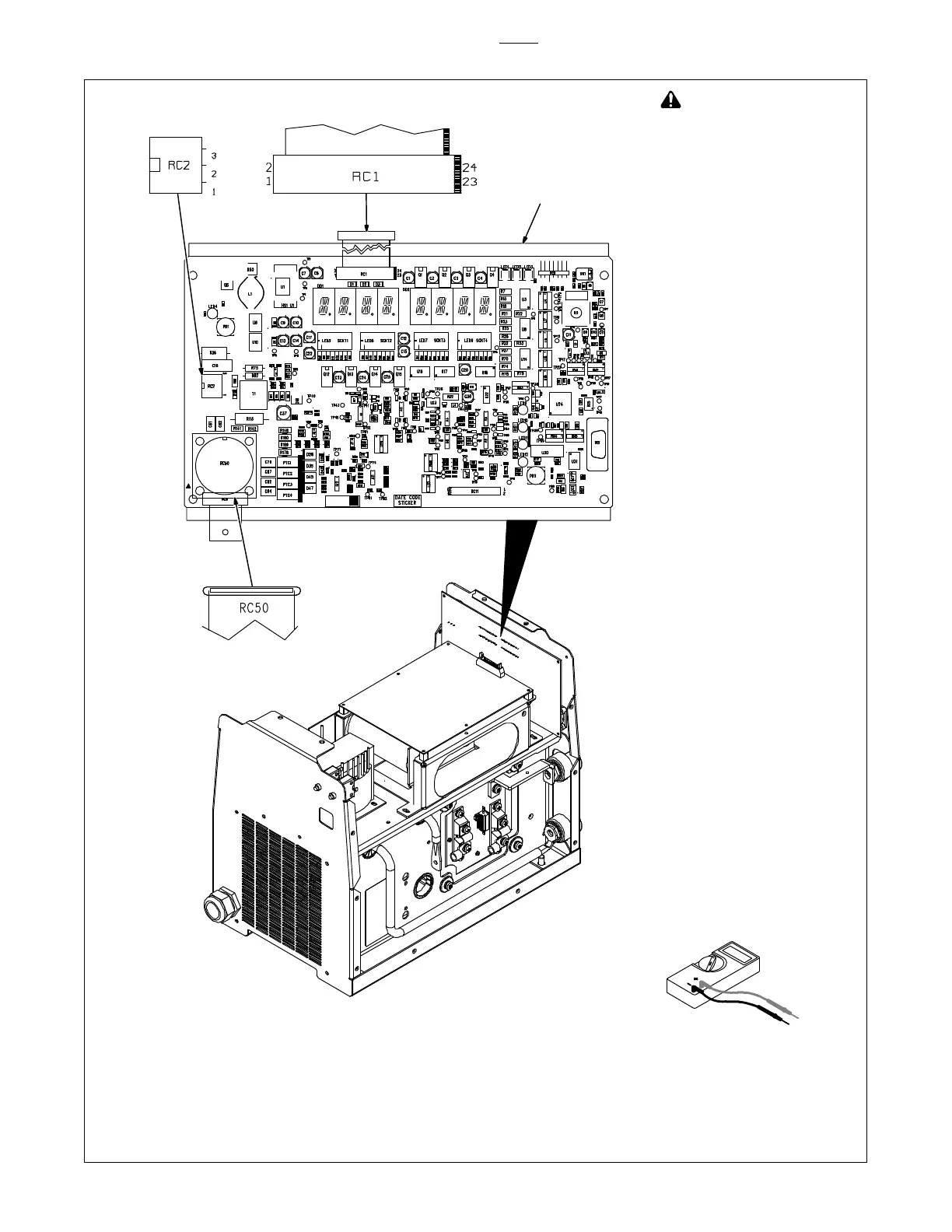

8-31. Front Panel/Display Board PC3 Testing Information (Use with Section 8-32)
Ref. 243612-C / 805137-A
! Measure voltage of input
capacitors according to
Section 8-3, and be sure
voltage is near zero before
touching any parts.
Be sure plugs are secure before ap-
plying power. See Section 8-32 for
specific values during testing.
1 Front Panel/Display Board
PC3
No testing required for remain-
ing plugs and receptacles.
Test Equipment Needed:
1
