Complete Parts List is available at www.MillerWelds.com
OM-262506 Page 31

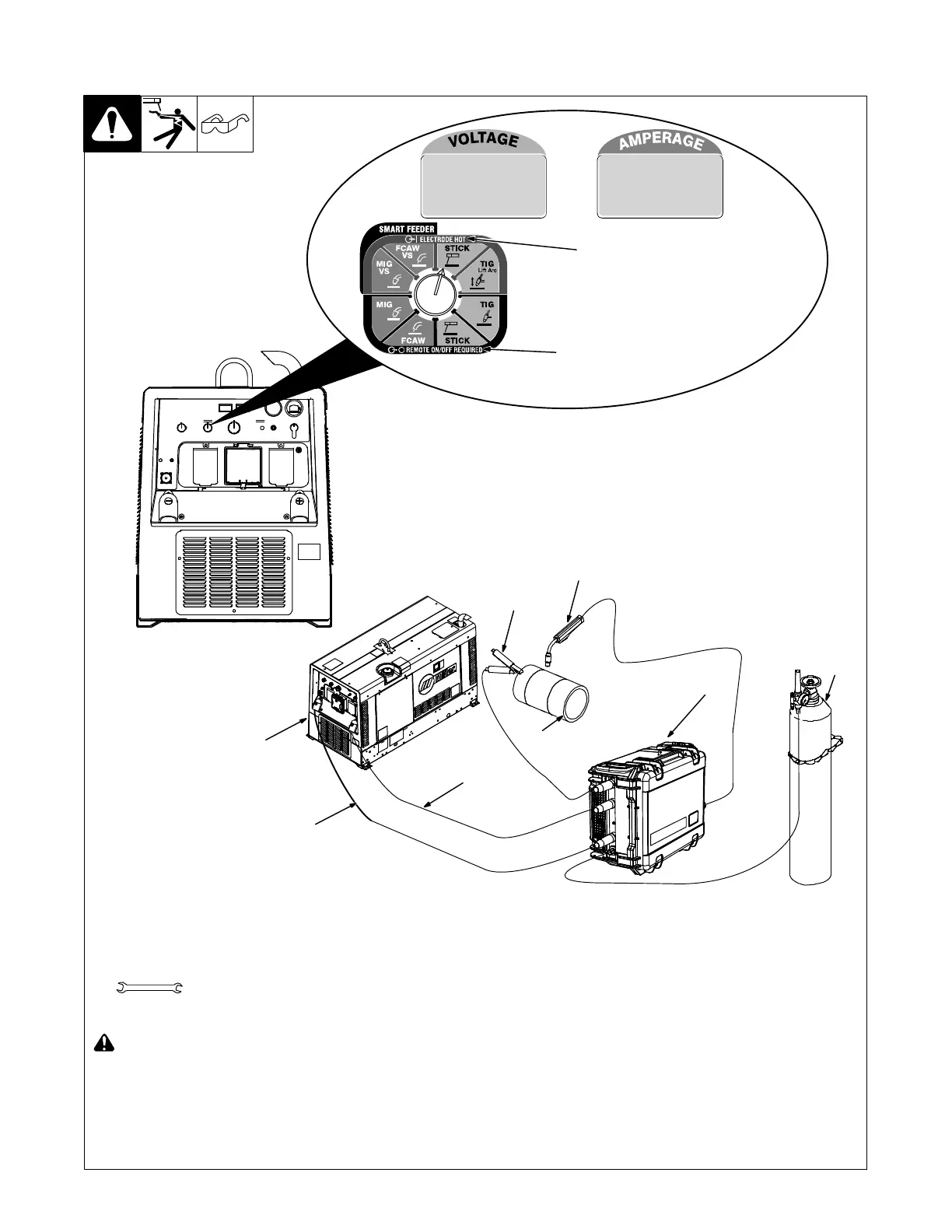

B. Big Blue 350 PipePro SF Models
239 430-B / 273 318-A / 907 428
Smart Feeder will connect.
Smart Feeder will connect when
remote contactor is ON.
VRD Switch inside unit
MUST be OFF to connect
in STICK.
! Stop engine.
NOTICE − Do not exceed machine duty
cycle.
See Section 5-14 for proper cable size.
1 Welding Generator
2 Weld Cable
3 Work Cable
4 Weldment
5 Welding Gun
6 Work Clamp
7 Smart Feeder
8 Gas Cylinder
For MIG and FCAW welding Direct Current
Electrode Positive (DCEP), connect work
cables to Negative (−) terminals and wire
feeder cables to Positive (+) terminals.
Be sure Process Selector switches are
set correctly. See Section 6-3.
Tools Needed:
3/4 in.
Optional Weld Selector
switch shown.
Direct Current Electrode
Positive (DCEP) connec-
tions are shown.
3
1
2
4
5
6
7
8
Ac.c flashes when the
Smart Feeder is not weld-
ing or when the In Use light
on the smart feeder is OFF.
Ac.c
