Miller PipePro Series - Export Auxiliary Power Receptacles

 Complete Parts List is available at www.MillerWelds.com
OM-262506 Page 43
! Use GFCI protection when operating
auxiliary equipment. If unit does not
have GFCI receptacles, use GFCI-
protected extension cord. Do not
use GFCI receptacle to power life
support equipment.
! Unplug power cord before attempt-
ing to service accessories or tools.

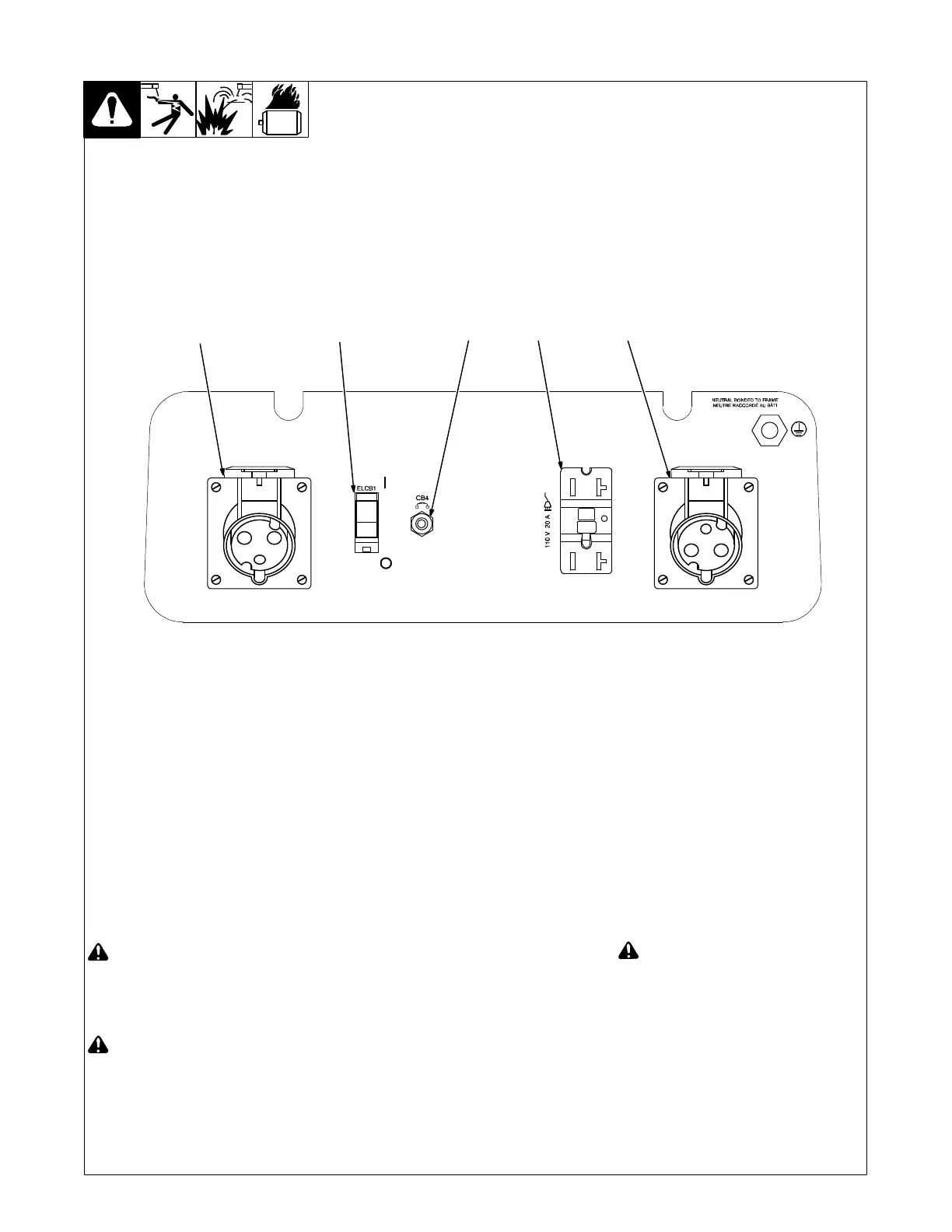

1 220V 16 A AC Receptacle RC11
2 Earth Leakage Circuit Breaker ELCB1
ELCB1 protects receptacle from overload
and earth leakage fault. If circuit breaker
opens, the receptacle does not work. Place
switch in On position to reset circuit break-
er.
3 Supplementary Protector CB4
CB4 protects GFCI1 from overload. If sup-
plementary protector opens, the receptacle
does not work. Press button to reset.
4 110V 20 A AC Receptacle GFCI1
5 110V16A AC Receptacle RC12
Receptacles supply 50/60 Hz single-phase
power.
Maximum combined output of all recep-
tacles is 5.3 kVa/kW.
! Test GFCI monthly. See Section 7-3
for GFCI information and for reset-
ting and testing procedures.
 At least once a month, run engine at
weld/power speed and press test but-
ton to verify ELCB1is working properly.
 If a supplementary protector or circuit
breaker continues to open, contact
Factory Authorized Service Agent.
 Generator power decreases as weld
output increases.
7-2. Export Auxiliary Power Receptacles
256 593-A
1
2
3
4
5
