8

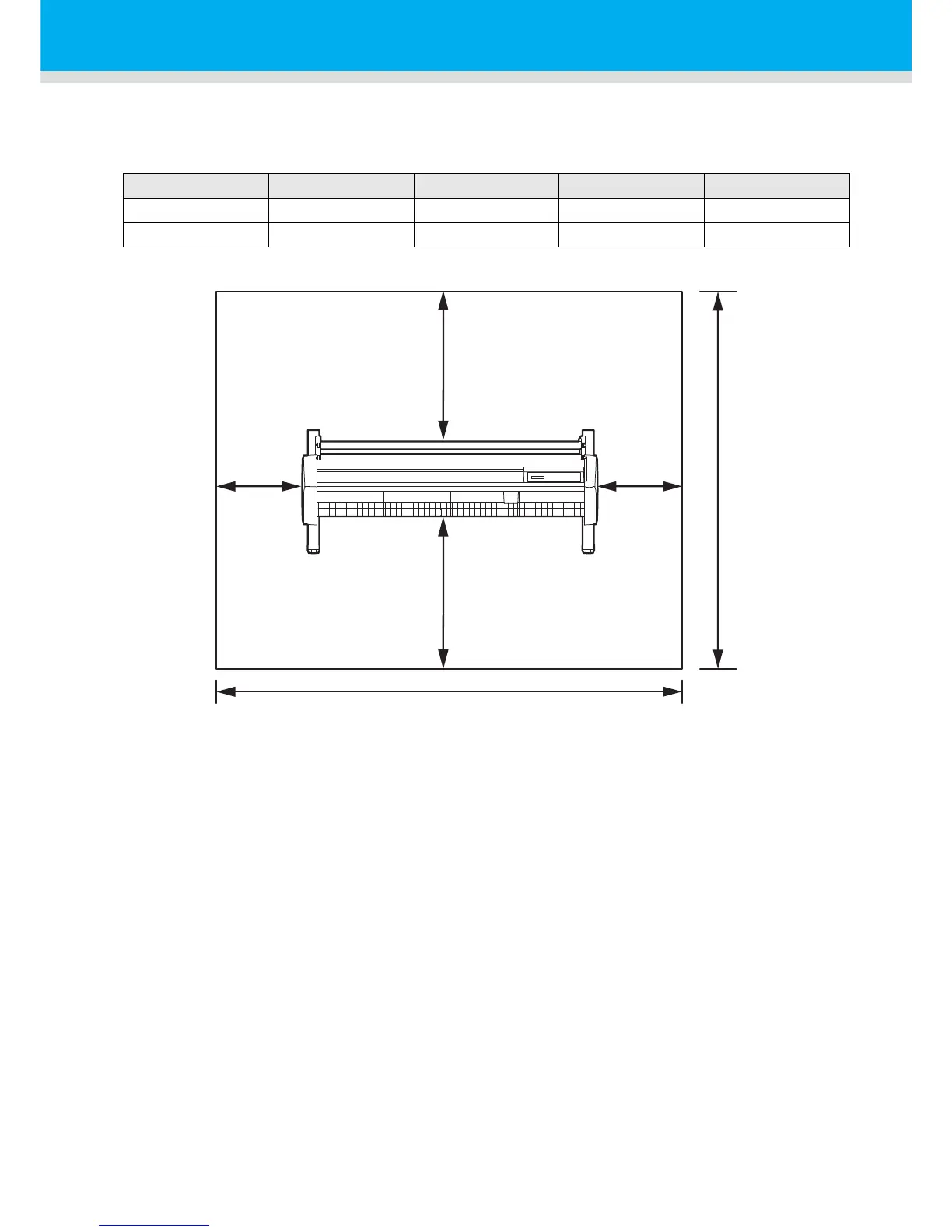

CWhere to install this machine
Secure a suitable installation space before assembling this machine.
The place of installation must have enough sp
ace for no
t only this machine itself but also for printing
operation.
Model
Width
Depth
Height
Gross weight
CG-100SRII
1435 mm
580 mm
1
125
mm
38 kg
CG-130SRII
1735 mm
580 mm
1
125
mm
44 kg
CG-100SRII
:
243
5 mm
CG-130SRII
:
273
5 mm
500 mm
or more
500 mm
or more
1000 mm or more
1000 mm or more
2580 mm
or more
8
10
Table of Contents
Default Chapter
2
Table of Contents
2
Foreword
4
Caution
5
Disclaimer of Warranty
5
Requests
5
FCC Statement (USA)
5
Interference to Televisions and Radios
5
About Media
5
Safety Precautions
6
Symbols
6
Safety Labels
8
Cwhere to Install this Machine
9
Configuration and Function
10
The Front
10
The Rear
11
Operation Panel
12
Connecting the Cables
13
USB Cable Connection
13
RS-232C Cable Connection
13
Connecting the Power Cable
14
Operation Flow
15
Installing a Tool
16
Using a Cutter
16
How to Install a Ballpoint Pen
19
Turning the Power on
20
Setting the Tool Conditions
21
Kinds of the Tool Conditions
21
Set the Tool Conditions
22
Loading a Sheet of Media
24
Loading a Leaf Sheet (Cut Sheet)
27
How to Place the Roll Sheet
29
Test Cutting (Plotting)
32
Cutting (Plotting)
33
Setting the Origin
33
Start Cutting (Plotting)
34
Cut off the Sheet (Manual Cutting)
35
Turning the Power off
36
Cut out Data with Registration Mark
37
Making Sticker with a Register Mark (When Using Finecut)
37
Making Sticker with a Register Mark (When Using Simplecut)
38
Enter the Registration Mark Detection Mode
39
Precautions in Inputting Data with Registration Marks
40
Set for Detecting the Registration Marks
44
Method of Detecting Registration Marks
49
Confirm the Following When Failed in Cutting Correctly
58
