8.2.8 IBP_C.O._Sidestream CO
2
Module Assembly

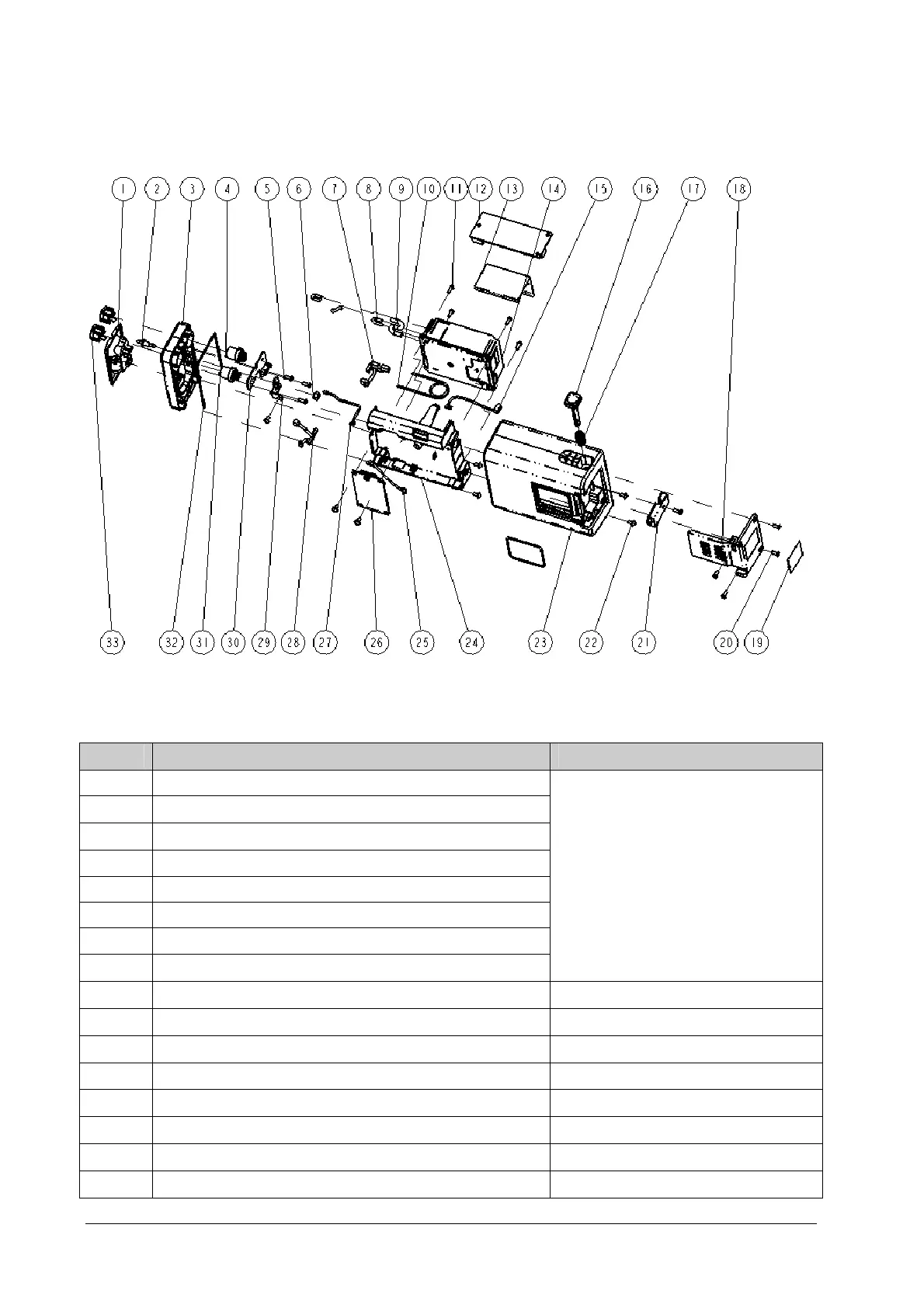

8.2.8.1 Exploded View
8.2.8.2 Parts List
SN Description FRU part number
1 Dryline receptacle, Mindray 801-9261-00026-00/115-050364-00
2 Gas Outlet
3 Front housing, A2 module
4 Receptacle, 2-IBP adapter cable
27 Module indicator and cable
30 C.O.-IBP panel board PCBA
31 C.O. Housing
5 Screw, self-tapping, PT3×8
6 Nut, Stainless Steel M5 GB6170 /
7 IBP/C.O. signal cable (4-way) 009-002214-00
8 System tubing PUR.AION,1.4/2.8mm,60-12110-00 /
9 System tubing PUR.AION, 2.2/4.4mm,60-12120-00 /
10 Moisture exchanger (Nafion Tube for Mindray CO2) /
11 Screw, Pan Head Phillips M3×8 /
12 C.O./IBP (M03B) module M03B-30-26064
13 Sampling tube, slice ,A module /
