SN Description FRU part number
14 Sidestream CO
2
main unit(FDA) 115-030767-00/115-050565-00
15 Cable between the converter board and M03B module 009-001971-00
16 A module button 043-001891-01/043-008803-00
17 Spring washer /
18 External converter board (plug-in modules) 051-000874-00
19 Module label (no manufacturer information) /
20 Screw, Flat Head Phillips M3×8 /
21 Lock for A module 043-001892-01
22 Screw, Pan head with washer, Phillips M3×6 /
23 Rear housing of A modules 043-002103-01/043-008850-00
24 Bracket for A module 043-001890-01
25 Cable between the converter board and copper board 009-001970-00
26 External module interface board PCBA, 801-9261-00018-00
28 Cable for M02C module interface 009-002309-00/009-008469-00
29 Holder connector 2, A module /
32 Silicone tube(1.6 mm OD X 0.8 mm ID) /
33 Blank IBP socket 043-001893-01/043-008498-00
8.2.9 IBP_C.O._Microstream CO
2
Module Assembly

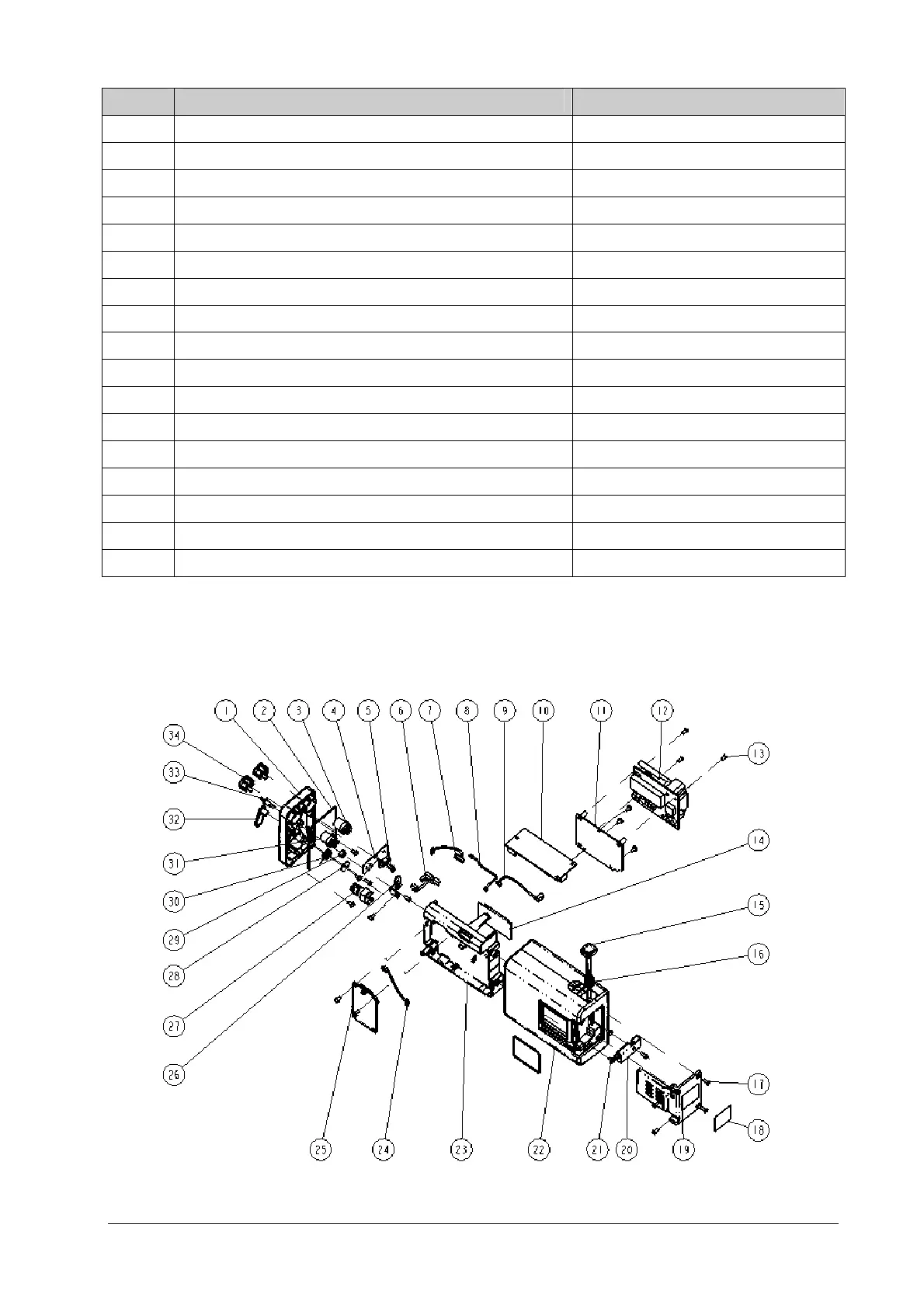

8.2.9.1 Exploded View
To Next Page
