Mindray DC-80 User Manual

Image Optimization 5-39

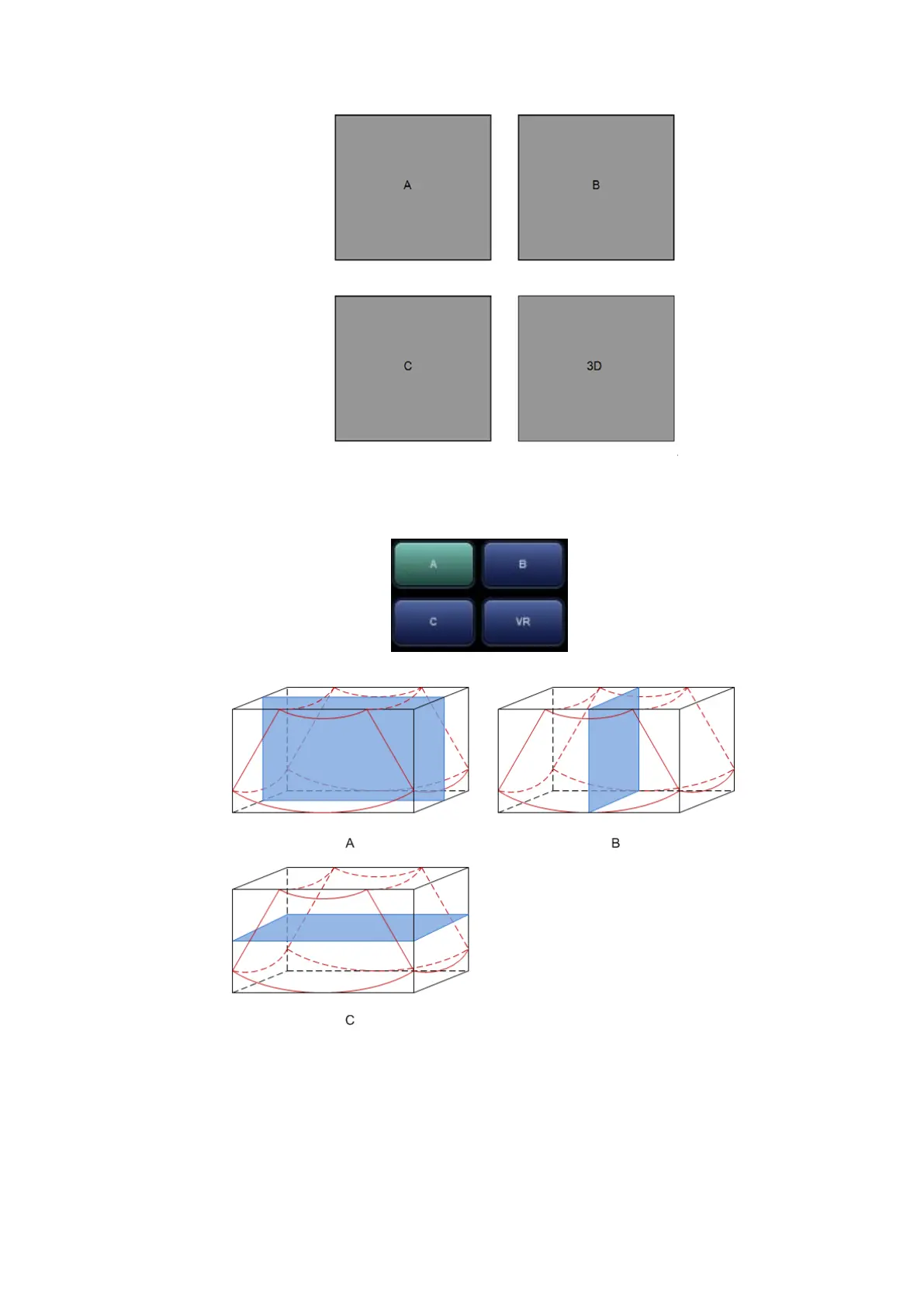

 On the touch screen, the current window’s icon is highlighted; as shown in the following, A
window is the current activated window.
A, B, C sectional images are corresponding to the following sections of 3D image.
 Section A: corresponds to the 2D image in B mode. Section A is the sagittal section in fetal
face up posture, as shown in the Figure A above.
 Section B: it is the horizontal section in fetal face up posture, as shown in the Figure B
above.
 Section C: it is the coronal section in fetal face up posture, as shown in the Figure C
above.
A window
B window
C window
3D window (VR)

Mindray DC-80 Specifications

General

Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, Tissue Doppler, 3D/4D Imaging
Probes	Convex, Linear, Phased Array, Volume
Advanced Features	Auto Optimization, Auto EF
Connectivity	DICOM 3.0, USB, HDMI, VGA, Ethernet
Transducer Ports	4
Applications	Abdominal, Cardiac, Obstetrics/Gynecology, Vascular, Small Parts, Musculoskeletal, Urology, Pediatrics, Neonatal
Transducer Types	Convex, Linear, Phased Array, Volume
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	30% to 80%
