Mindray DC-80 User Manual

5-46 Image Optimization
c
d
e
f

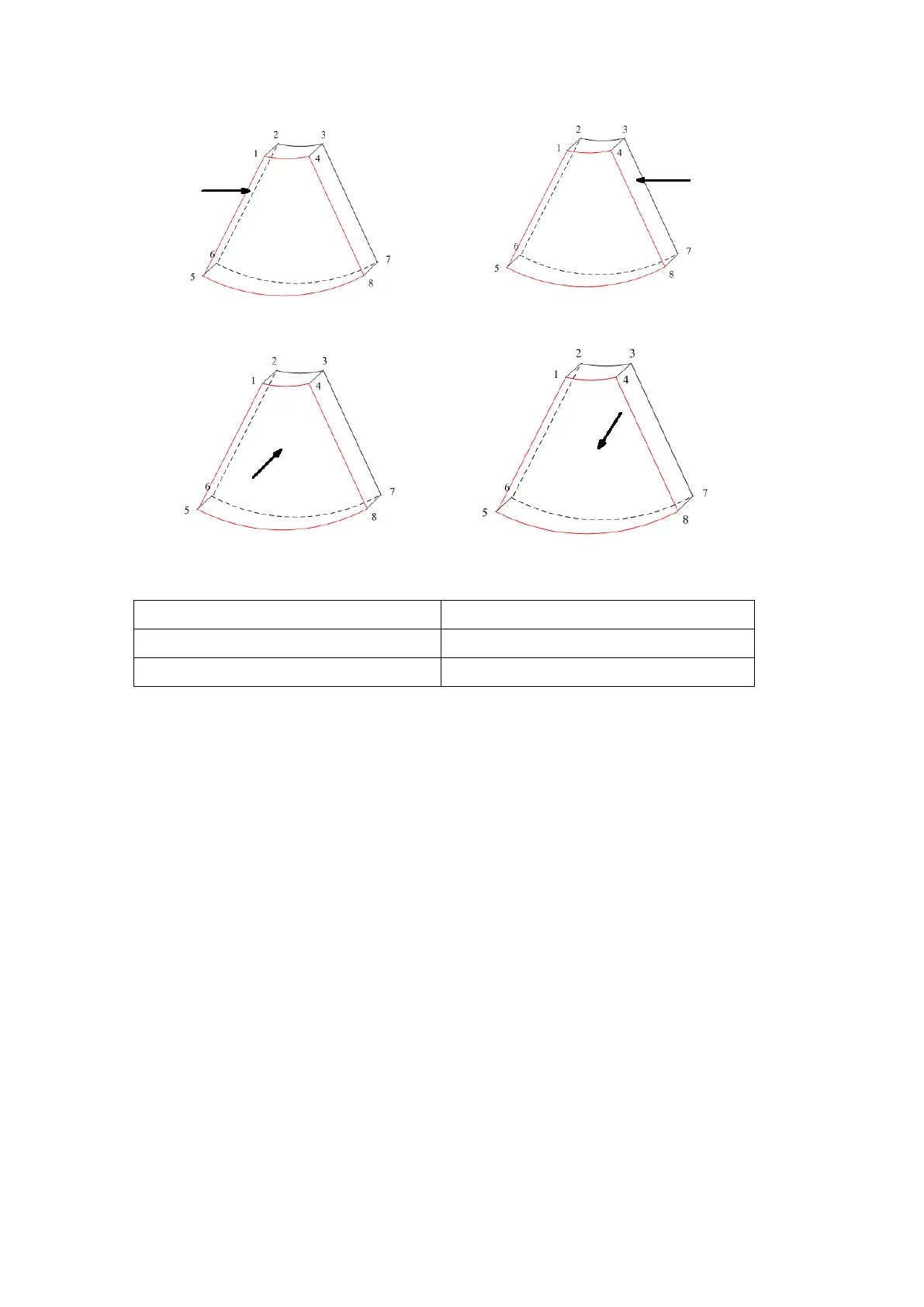

View Direction
a. Up/Down
b. Down/Up
c. Left/Right
d. Right/Left
e. Front/Back
f. Back/Front
Touch [Up/Down], [Left/Right] or [Front/Back] on the second page of the touch screen to select the
direction of the above Figure a, c and e.
Touch [Flip] on the touch screen to observe by the converse direction of the current direction, as
shown in the Figure b, d and f.
Adjust VOI
 VOI On
VR image displays VOI information.
1. In image viewing status, touch [VOI] to be ―On‖.
2. Select a desired window by touching [A], [B] or [C] or [VR].
3. Roll the trackball to adjust VOI position, size and curved VOI, and press <Set> to switch
among the adjusting status; or you can rotate <4D> knob on the control panel to adjust relative
position of MPRs so as to slice through the VR.
 VOI Off
VR image displays ROI information.
Touch [VOI] to be ―Off‖, then the ROI image is displayed on the screen, roll the trackball to observe
MPR.
 Accept VOI
1. This function is usually used for MPR observation and to determine the relative position of the
MPR to the VR.
2. Touch [Accept VOI] on the touch screen.
3. Select a desired MPR by touching [A], [B] or [C] or [VR].

Mindray DC-80 Specifications

General

Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, Tissue Doppler, 3D/4D Imaging
Probes	Convex, Linear, Phased Array, Volume
Advanced Features	Auto Optimization, Auto EF
Connectivity	DICOM 3.0, USB, HDMI, VGA, Ethernet
Transducer Ports	4
Applications	Abdominal, Cardiac, Obstetrics/Gynecology, Vascular, Small Parts, Musculoskeletal, Urology, Pediatrics, Neonatal
Transducer Types	Convex, Linear, Phased Array, Volume
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	30% to 80%
