Mindray DC-80 User Manual

Image Optimization 5-105

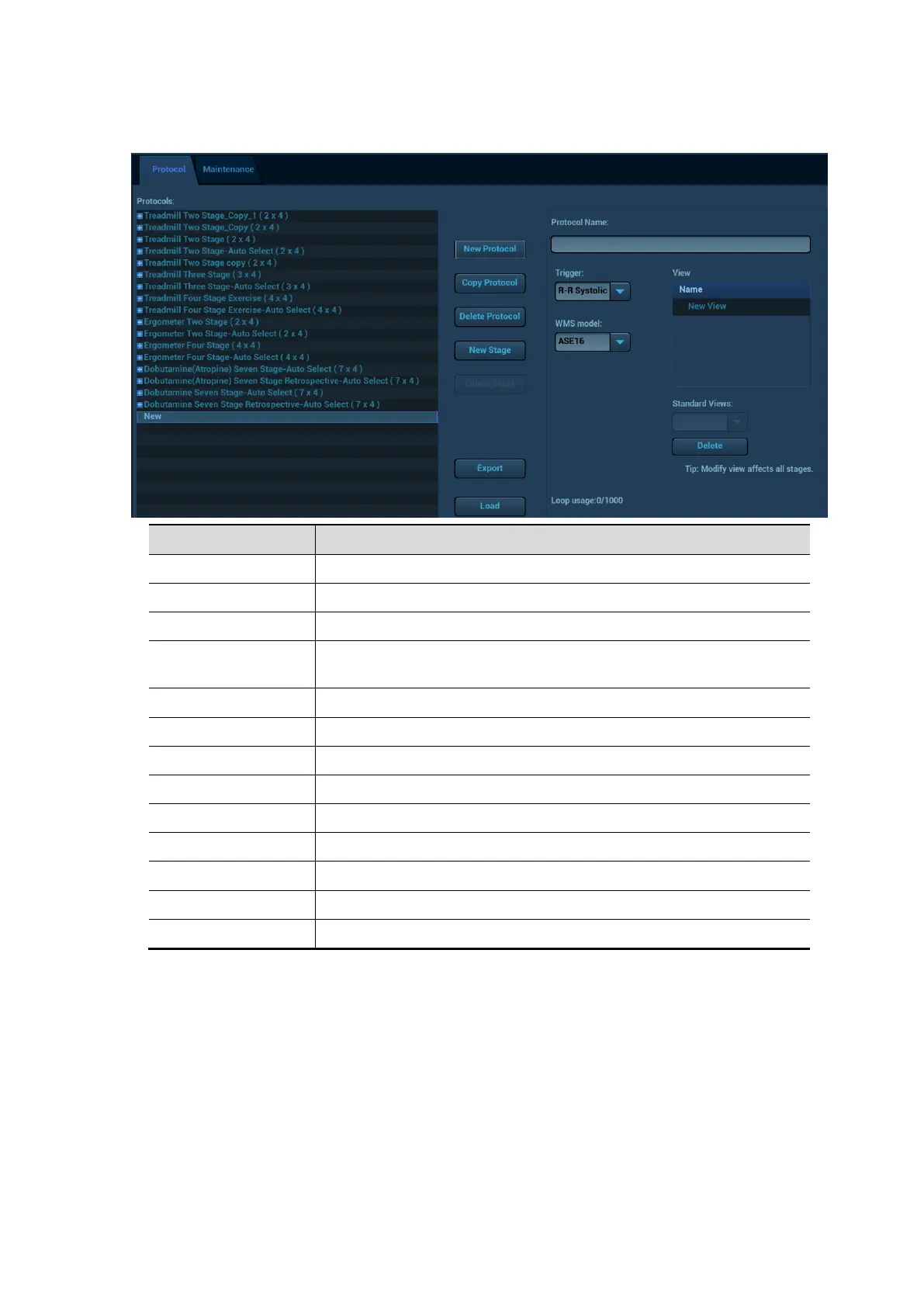

Access the Protocol Editor dialog box by clicking [Protocol] in [Setup][Stress Echo][Protocol],
or clicking [Edit] on the Select Protocol screen as shown in the figure below:
Item
Function Description
Protocol name
Enter the protocol name.
Trigger
Set the trigger type.
WMS model
Set the methods of chamber segments division.
Loop usage
Displays the acquired loop number as well as the total usable loop
number.
View
Set the views for the each stage.
Standard views
Set the standard view.
Load
Import a protocol.
Export
Export a protocol.
New protocol
Create a new protocol.
Copy protocol
Create a new protocol with an existing one.
Delete protocol
Delete the protocol.
New stage
Create a stage for the current protocol.
Delete stage
Delete the stage.
Creating a Stress Echo Protocol
To create a stress echo protocol:
1. Click [New Protocol] button on the right of the Protocol Editor dialog box.
2. Enter the protocol name in the Protocol Name box at the top.
3. For each phase in the protocol:
(a) Select ―new‖ in the Stage list.
(b) Enter a phase name in the Description box.
(c) Select ―Auto Select‖, the system jumps to Select Mode after retrospective acquisition.
(d) Select the required option from the Clip Capture drop-down list.

Mindray DC-80 Specifications

General

Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, Tissue Doppler, 3D/4D Imaging
Probes	Convex, Linear, Phased Array, Volume
Advanced Features	Auto Optimization, Auto EF
Connectivity	DICOM 3.0, USB, HDMI, VGA, Ethernet
Transducer Ports	4
Applications	Abdominal, Cardiac, Obstetrics/Gynecology, Vascular, Small Parts, Musculoskeletal, Urology, Pediatrics, Neonatal
Transducer Types	Convex, Linear, Phased Array, Volume
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	30% to 80%
