5-108 Image Optimization
5.15.2 Tissue Tracking QA Screen Description

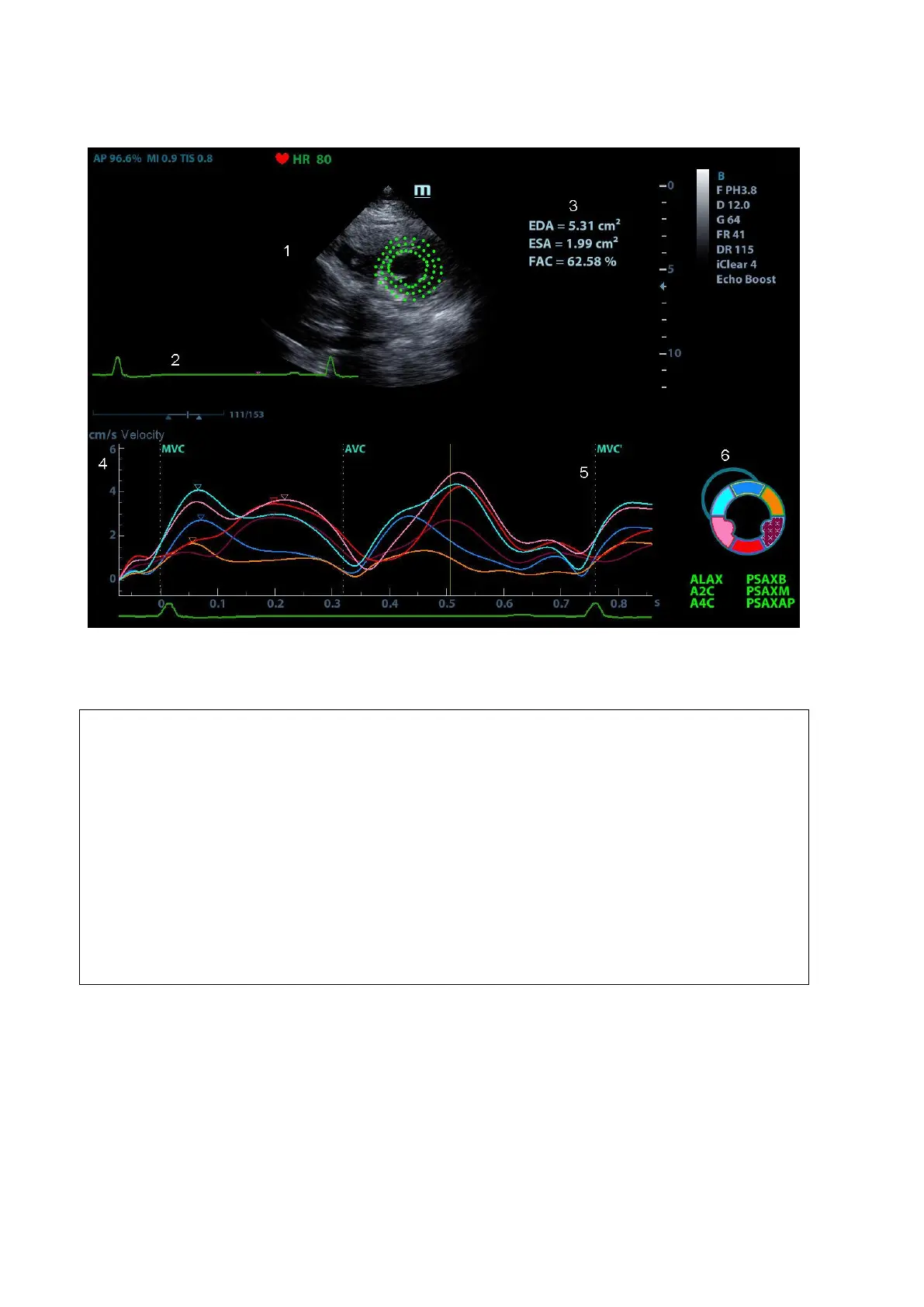

1—Displays image used to generate trace curve
2—Displays ECG trace
3—Displays measurement and calculation results:
EDV:
maximum value of the end diastolic volume during the trace.
EDA:
maximum value of the end diastolic area (Left Ventricular) during the trace.
ESV:
maximum value of the end systolic volume (Left Ventricular) during the trace.
ESA:
maximum value of the end systolic area (Left Ventricular) during the trace.
FAC:
Fractional Area Change= (EDA — ESA)/EDA.
This parameter is available under short axis section.
EF:
Ejection fraction.
This parameter is available under long axis section.
HR:
Heart rate.
GS:
Global Strain

Mindray DC-80 Specifications

General

Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, Tissue Doppler, 3D/4D Imaging
Probes	Convex, Linear, Phased Array, Volume
Advanced Features	Auto Optimization, Auto EF
Connectivity	DICOM 3.0, USB, HDMI, VGA, Ethernet
Transducer Ports	4
Applications	Abdominal, Cardiac, Obstetrics/Gynecology, Vascular, Small Parts, Musculoskeletal, Urology, Pediatrics, Neonatal
Transducer Types	Convex, Linear, Phased Array, Volume
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	30% to 80%
