Mindray DC-80 User Manual

5-114 Image Optimization
5.16.2 Magnetic Navigator
Note:
Place the set of the magnetic navigator away from the electromagnetic interference
sources, such as power filter, signal indication, magnetically activated metal materials,
cell phone in the use of the devices.
Connect the magnetic navigator when the magnetic navigation controller is OFF.
Exit Fusion imaging before reconnecting/disconnecting sensor from the magnetic
navigation controller. Turn off the magnetic navigation controller before
connecting/disconnecting connecting generator.
Plug the auxiliary output power supply cable, data cable, magnetic generator and sensor to the
magnetic navigator respectively following the arrow’s guide.

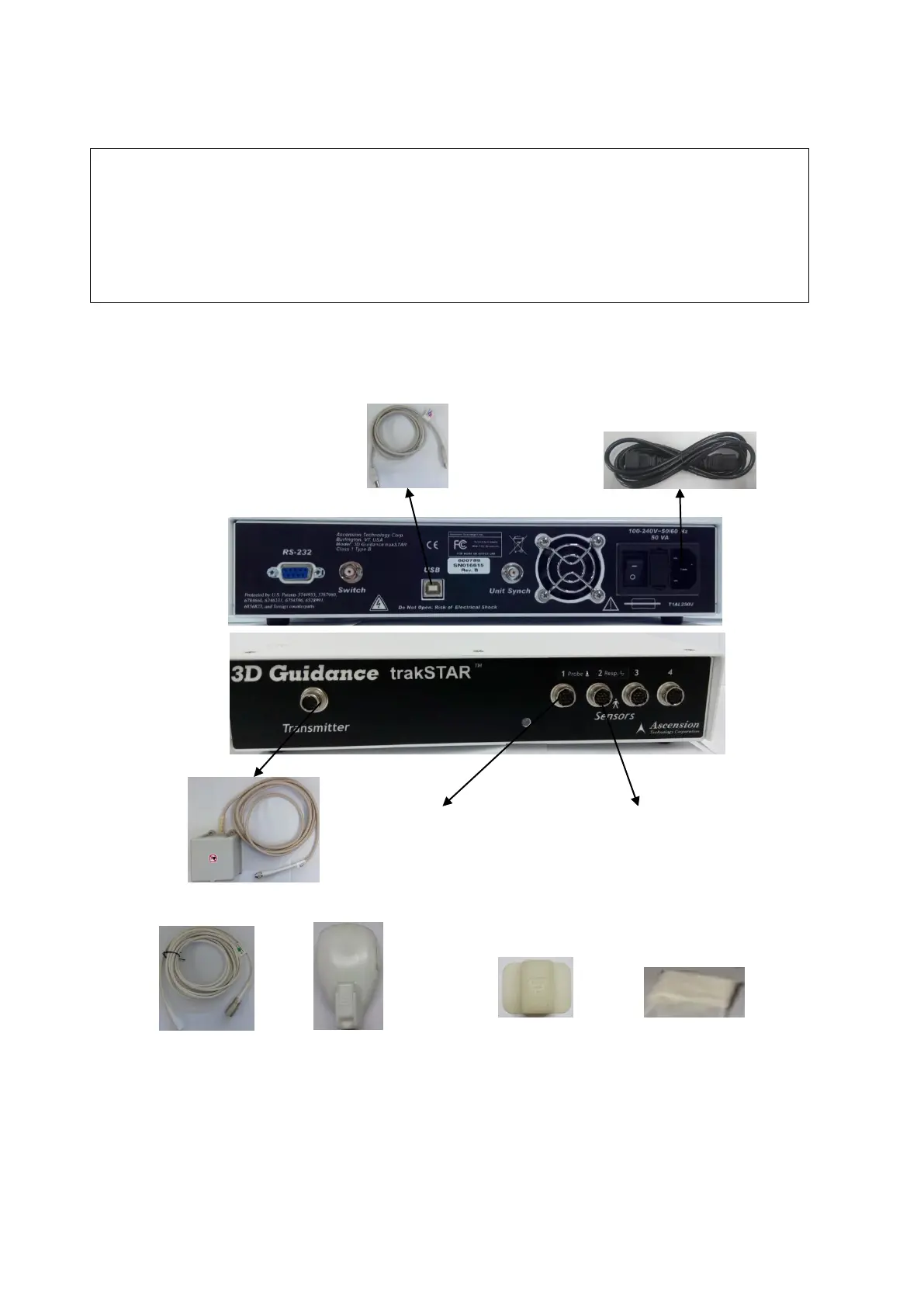

The description of the magnetic navigator is given in details. See the table below.
<3>Magnetic generator
<2>USB Data cable
<1>Auxiliary
output power
supply cable
<10>Magnetic
navigator
(front)
<6>Sensor (2)
<7>Positioning (probe)
navigation support
<8>Motion
(abdomen) sensor
support
<4>Positioning (probe)
sensor port
<5>Motion (abdomen)
sensor port
<9>sterile sheath
<10>Magnetic
navigator (rear)

Mindray DC-80 Specifications

General

Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, Tissue Doppler, 3D/4D Imaging
Probes	Convex, Linear, Phased Array, Volume
Advanced Features	Auto Optimization, Auto EF
Connectivity	DICOM 3.0, USB, HDMI, VGA, Ethernet
Transducer Ports	4
Applications	Abdominal, Cardiac, Obstetrics/Gynecology, Vascular, Small Parts, Musculoskeletal, Urology, Pediatrics, Neonatal
Transducer Types	Convex, Linear, Phased Array, Volume
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	30% to 80%
