Mindray DC-80 User Manual

Probes and Biopsy 13-15
13.2.1 Needle-guided Brackets
A needle-guided bracket is available for purchase as an optional accessory; it is used in
combination with the probe. Some of the probes have matched needle-guided bracket and needles.
To order needle-guided brackets, contact MINDRAY Customer Service Department or sales
representative.
For biopsy or treatment, ultrasound-guided biopsy procedures can be performed using the probe in
combination with a needle-guided bracket (optional accessory) and a biopsy needle (provided by
the user).
Names of Parts
This section describes the parts and corresponding functions of each needle-guided bracket. Here,
we take a matched probe as an example.

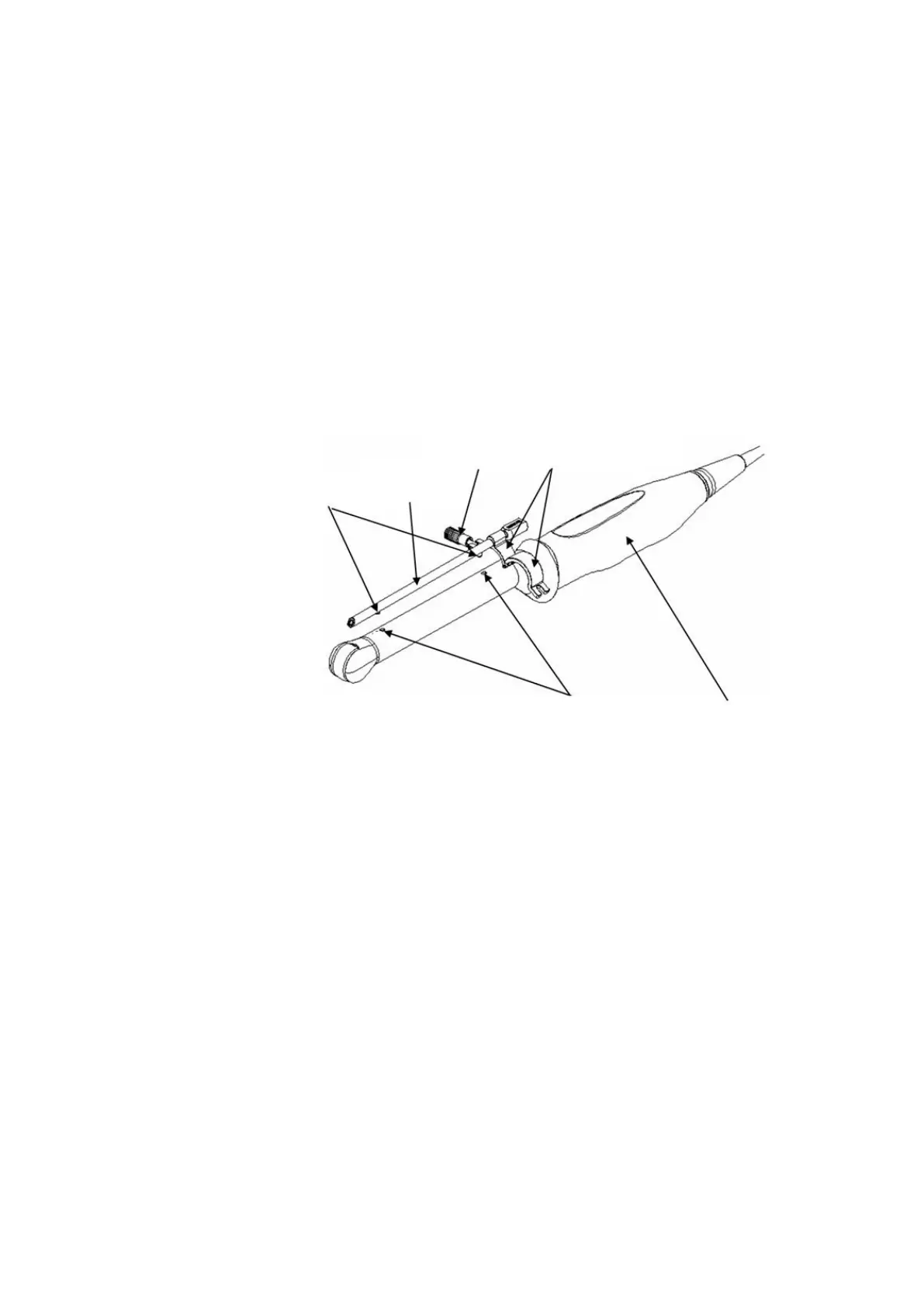

 NGB-004
Probe
Locating groove
Retaining clamp
Locating bulge
Locking nut
Needle guide

Mindray DC-80 Specifications

General

Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, Tissue Doppler, 3D/4D Imaging
Probes	Convex, Linear, Phased Array, Volume
Advanced Features	Auto Optimization, Auto EF
Connectivity	DICOM 3.0, USB, HDMI, VGA, Ethernet
Transducer Ports	4
Applications	Abdominal, Cardiac, Obstetrics/Gynecology, Vascular, Small Parts, Musculoskeletal, Urology, Pediatrics, Neonatal
Transducer Types	Convex, Linear, Phased Array, Volume
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	30% to 80%
