Mindray DC-80 User Manual

13-16 Probes and Biopsy
 NGB-007/NGB-035

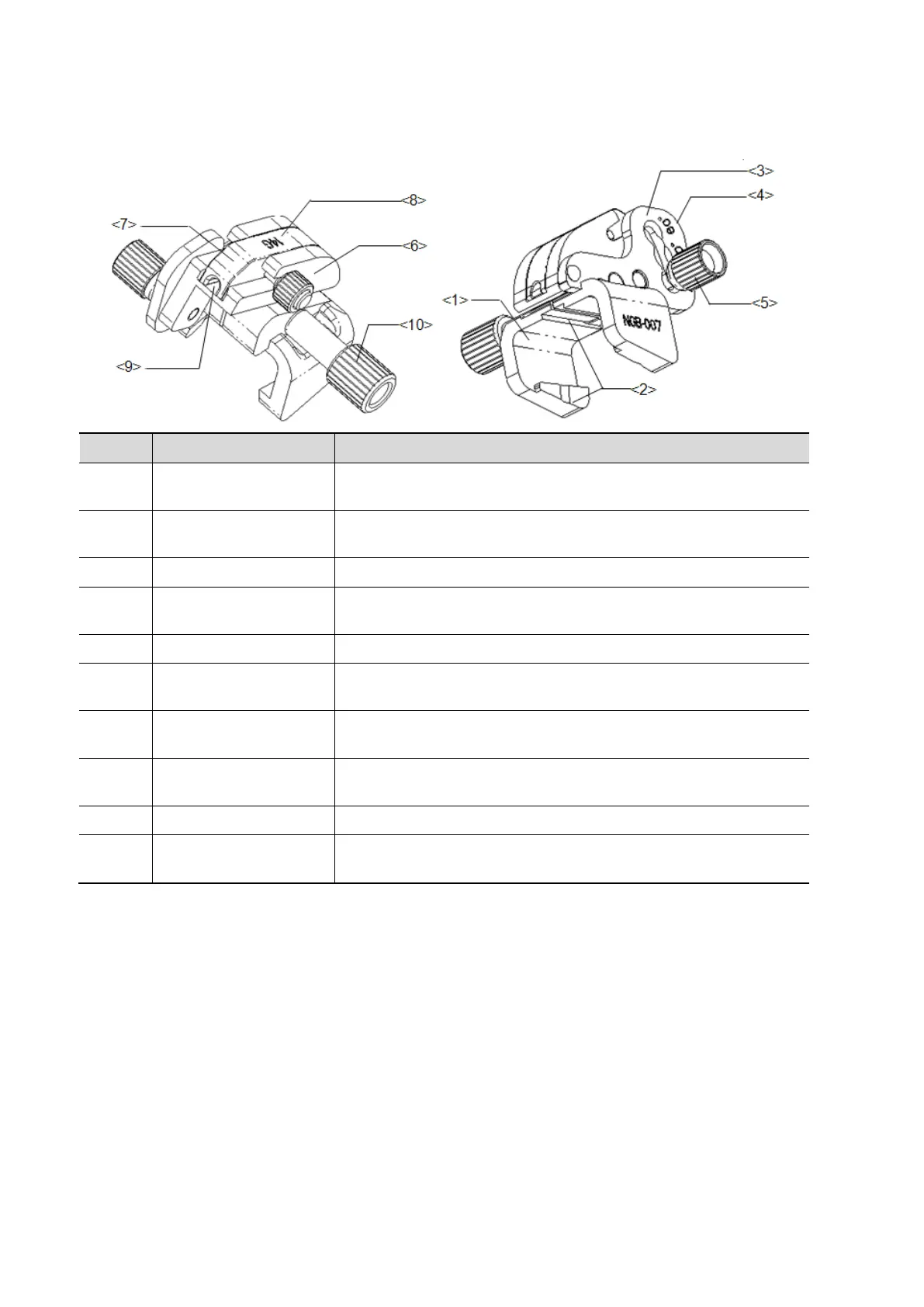

Metal/needle detachable needle-guided bracket:
No.
Name
Description
<1>
Support of needle-
guided bracket
Used for installing the needle-guided bracket on the probe.
<2>
Groove and tab of the
needle-guided bracket
Respectively matched with the tab and groove of the probe.
<3>
Angle adjusting base
There are 3 types of angles available to be adjusted.
<4>
Angle shift sign
(40°,50°,60°)
Matched with the biopsy angle (40°, 50°, and 60°) .
<5>
Angle pinch nut
Used for fixing the angle lock at a chosen angle.
<6>
Angle block
Used for determining the angle of the biopsy; different
specifications of blocks can be used.
<7>
Guiding block
Used for installing biopsy needle; there are five specifications
of guiding blocks for different biopsy needles.
<8>
Specification of
guiding block (14G)
Matched with the corresponding biopsy needle (14G).
<9>
Needle guide hole
Used for installing the biopsy needle.
<10>
Pinch nut of needle-
guided bracket
Used for locking the needle-guided bracket and the probe.

Mindray DC-80 Specifications

General

Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, Tissue Doppler, 3D/4D Imaging
Probes	Convex, Linear, Phased Array, Volume
Advanced Features	Auto Optimization, Auto EF
Connectivity	DICOM 3.0, USB, HDMI, VGA, Ethernet
Transducer Ports	4
Applications	Abdominal, Cardiac, Obstetrics/Gynecology, Vascular, Small Parts, Musculoskeletal, Urology, Pediatrics, Neonatal
Transducer Types	Convex, Linear, Phased Array, Volume
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	30% to 80%
