Mindray DC-80 User Manual

13-34 Probes and Biopsy
 NGB-007/NGB-035

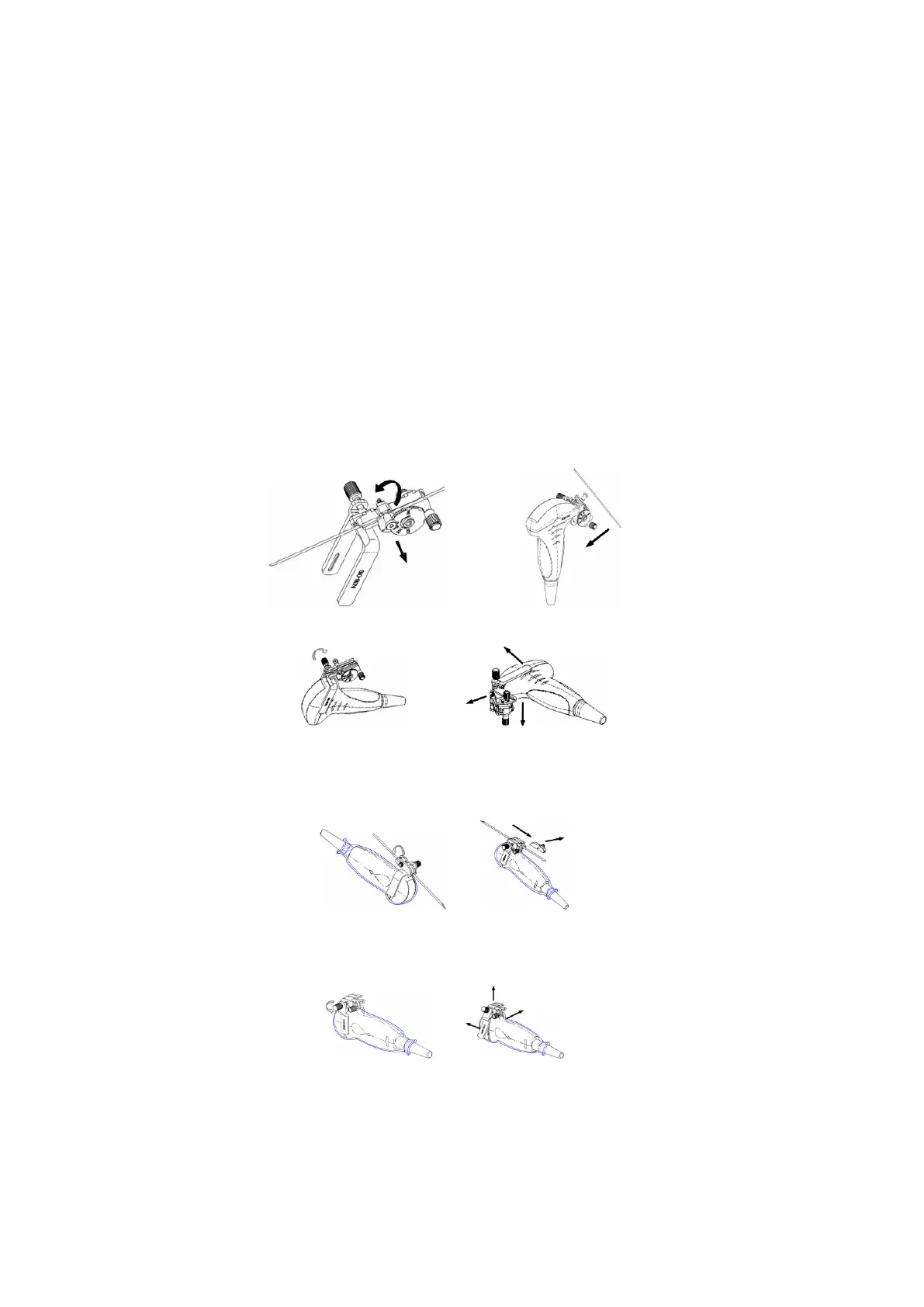

Metal needle-guided bracket:
(1) Screw the nut of the guiding block and remove the guiding block slightly along the
direction of the needle’s tail.
(2) Separate the residual part of the needle-guide bracket and the probe from the needle.
(3) Screw the pinch nut of the bracket, and remove the needle-guided bracket from the probe.
Plastic needle-guided bracket:
(1) Remove the guiding block slightly along the direction of the needle’s tail.
(2) Separate the residual part of the needle-guide bracket and the probe from the needle.
(3) Remove the support of needle-guided bracket from the probe.
 NGB-011
Hold the probe and the needle-guided bracket, and then open the grip knob of the needle-
guided bracket.
 NGB-015/NGB-019/NGB-022/NGB-023
(1) Pull the lock pin and open up the V-shaped cover to expose the needle.
(2) Separate the bracket and the transducer from the needle.
(3) Screw the pinch nut to release the needle-guided bracket.
(4) Separate the bracket and the transducer.
 NGB-018
(1) Screw the nut of the guiding block and remove the guiding block slightly along the
direction of the needle’s tail.
(2) Separate the residual part of the needle-guide bracket and the transducer from the needle.
(3) Screw the pinch nut of the bracket, and remove the needle-guided bracket from the
transducer.
 NGB-020/NGB-040
(1) Pull the lock pin out and open up the V-shaped cover to expose the needle.

Mindray DC-80 Specifications

General

Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, Tissue Doppler, 3D/4D Imaging
Probes	Convex, Linear, Phased Array, Volume
Advanced Features	Auto Optimization, Auto EF
Connectivity	DICOM 3.0, USB, HDMI, VGA, Ethernet
Transducer Ports	4
Applications	Abdominal, Cardiac, Obstetrics/Gynecology, Vascular, Small Parts, Musculoskeletal, Urology, Pediatrics, Neonatal
Transducer Types	Convex, Linear, Phased Array, Volume
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	30% to 80%
