Mindray DC-80 User Manual

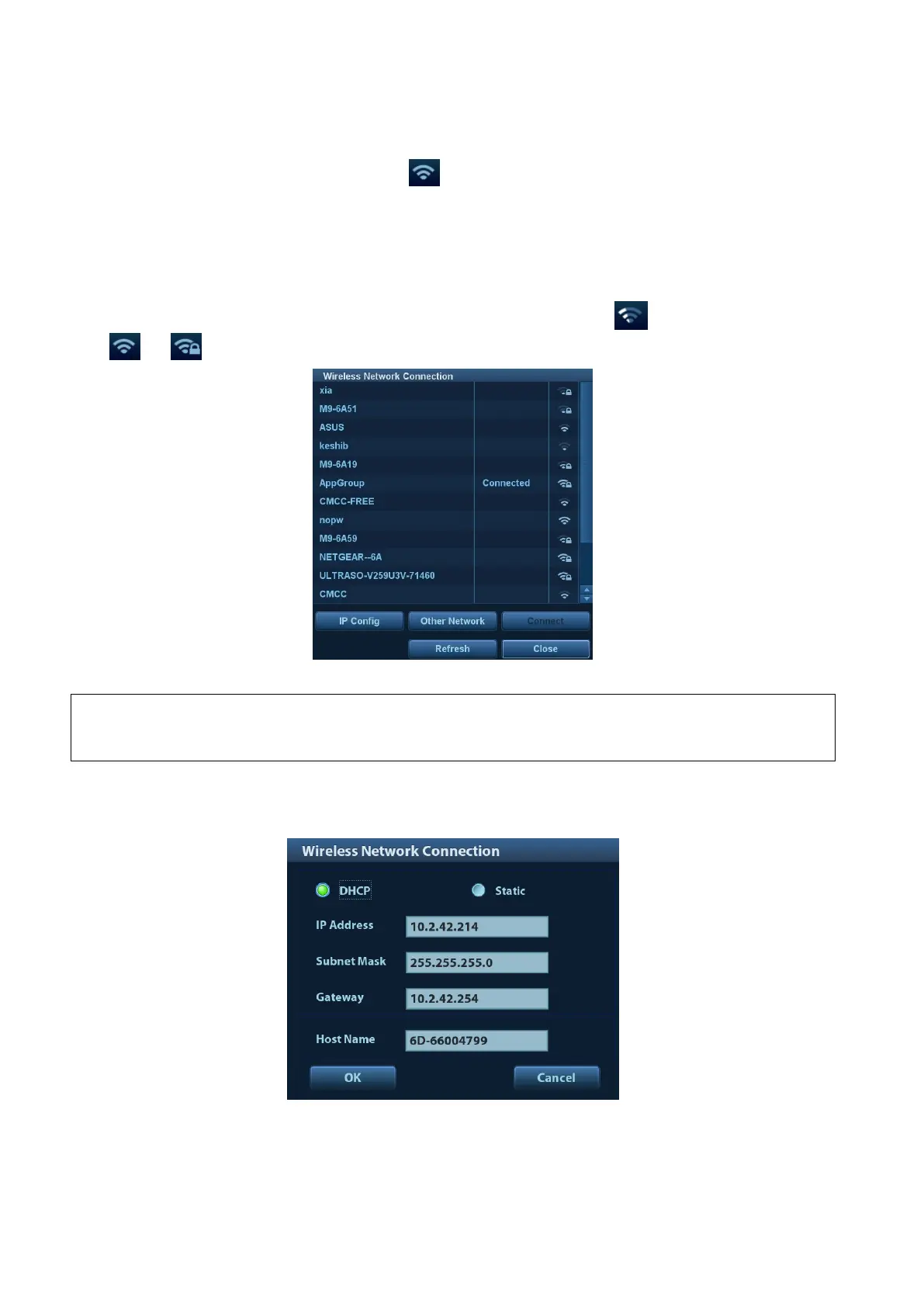

A-2 Wireless LAN
A.1 Use the Wireless feature
1. Press <Cursor> to show the cursor, click in the bottom bar to open the wireless network
manager.
2. Roll the trackball and press <Set> to select the target network, click [Connect] to connect to the
network.
When connecting an encrypted network, enter the password in the box first.You can select to hide
password characters or not.
3. The system tries to connect and the wireless manager icon turns into . The icon turns into
or after successful connection.
 IP Config
NOTE:
When the system background is processing network task (DICOM sending for example),
please do not enter network setting to change the IP, otherwise the background task may fail.
You can check if there are tasks undergoing in the task manager.
IP config is used for setting local network parameters, which is also applied to DICOM connection.
1. In Wireless network manager screen, click [IP Config] to open the page:
 If ―DHCP‖ is selected, the IP address will be automatically obtained from the DNS server.
 Click [Refresh] to check current IP address.
 If ―Static‖ is selected (using a static IP address), enter the IP address.
 IP address of the system should be in the same network segment with the server.

Mindray DC-80 Specifications

General

Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, Tissue Doppler, 3D/4D Imaging
Probes	Convex, Linear, Phased Array, Volume
Advanced Features	Auto Optimization, Auto EF
Connectivity	DICOM 3.0, USB, HDMI, VGA, Ethernet
Transducer Ports	4
Applications	Abdominal, Cardiac, Obstetrics/Gynecology, Vascular, Small Parts, Musculoskeletal, Urology, Pediatrics, Neonatal
Transducer Types	Convex, Linear, Phased Array, Volume
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	30% to 80%
