Repair Information Disassembly Instructions
5. Remove the four screws that secure the assembly to the rear housing and main frame.
6. Disconnect the CO
2
tubing and cable from the multi-parameter board assembly (if CO
2
module is configured).
7. Remove the multi-parameter board assembly carefully.

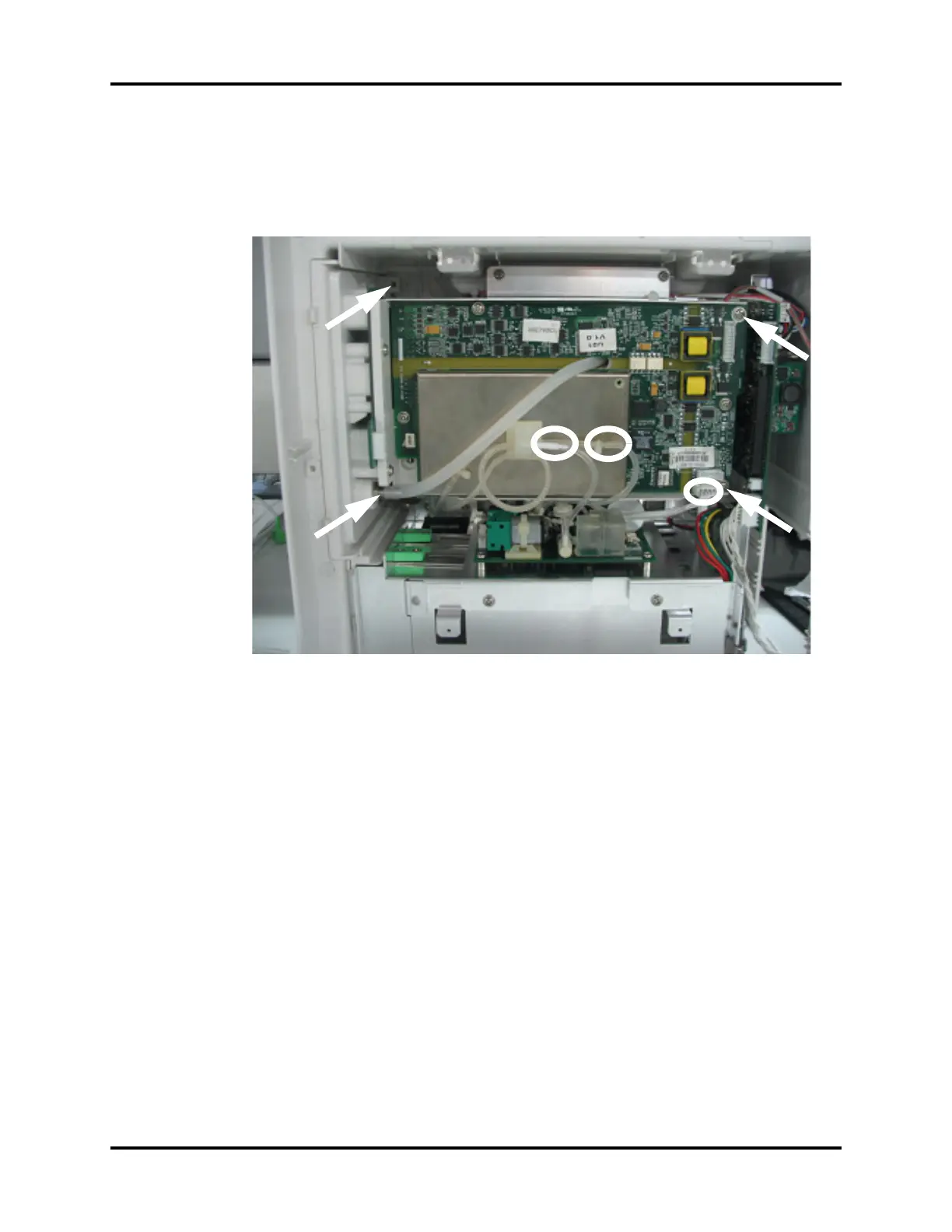

FIGURE 3-14 Remove the multi-parameter board assembly
