Mindray Passport V Service Manual

Passport V™ Service Manual 0070-10-0705 4 - 15
Isometric Drawings and Parts List Masimo SpO
2
PCB Assembly
4.13 Masimo SpO
2
PCB Assembly

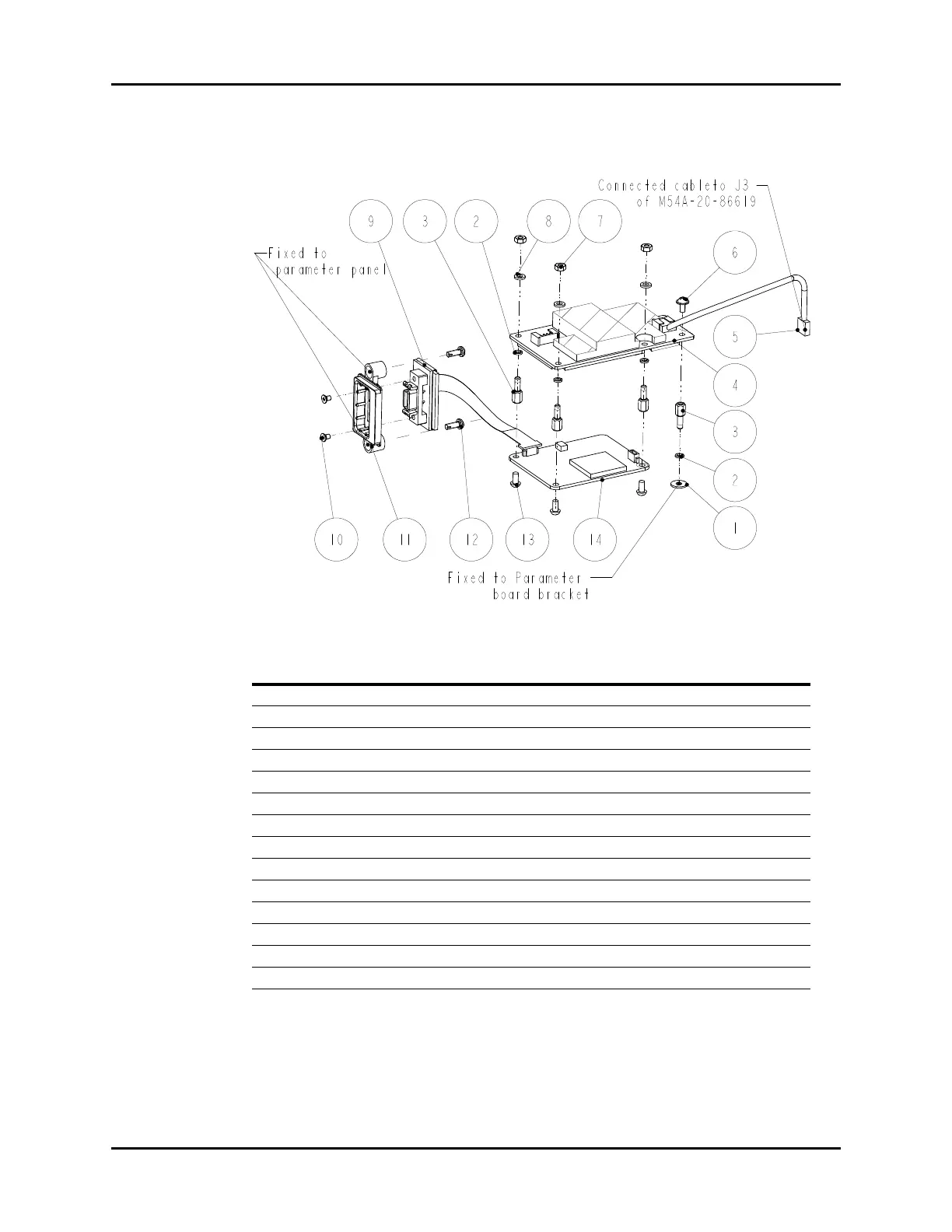

FIGURE 4-12 Masimo SpO
2
PCB Assembly
ITEM NO DESCRIPTION PART NUMBER
1 Large Flat Washer, GB96 3 N/A
2 Spring Washer, GB93 3 N/A
3 Screw, Stud M3X7 N/A
4 PCBA, Masimo Transfer Board 801-6101-00015-00
5 Communication cable. OEM SpO
2
9211-20-87242
6 Screw, Pan Head W/Washer Phillips M3X6 M04-004012---
7 Nut, Stainless Steel M3 GB6170 N/A
8 Washer, insulating 3X1mm N/A
9 SpO
2
flex cable assembly 2685 040-000150-00
10 Screw, Flat Head PhillipsM2.5X4 N/A
11 Frame, Masimo SpO
2
Connector 6101-20-46720-52
12 Screw, Self-Tapping PT3X8 N/A
13 Screw, Pan Head Phillips M3X6 N/A
14 Masimo MS-2013 board 801-6101-00016-00
