Mindray Passport V Service Manual

Passport V™ Service Manual 0070-10-0705 3 - 19
Repair Information Disassembly Instructions
3.5.21 Removal of the CF Card Assembly
1. Remove the main frame and multi-parameter board assembly as stated in “Removal of
the Main Frame and Multi-parameter Board Assembly” on page 3-16.
2. Remove the two screws that secure the CF card assembly.
3. Disconnect the CF card cable.
4. Remove the CF card assembly.

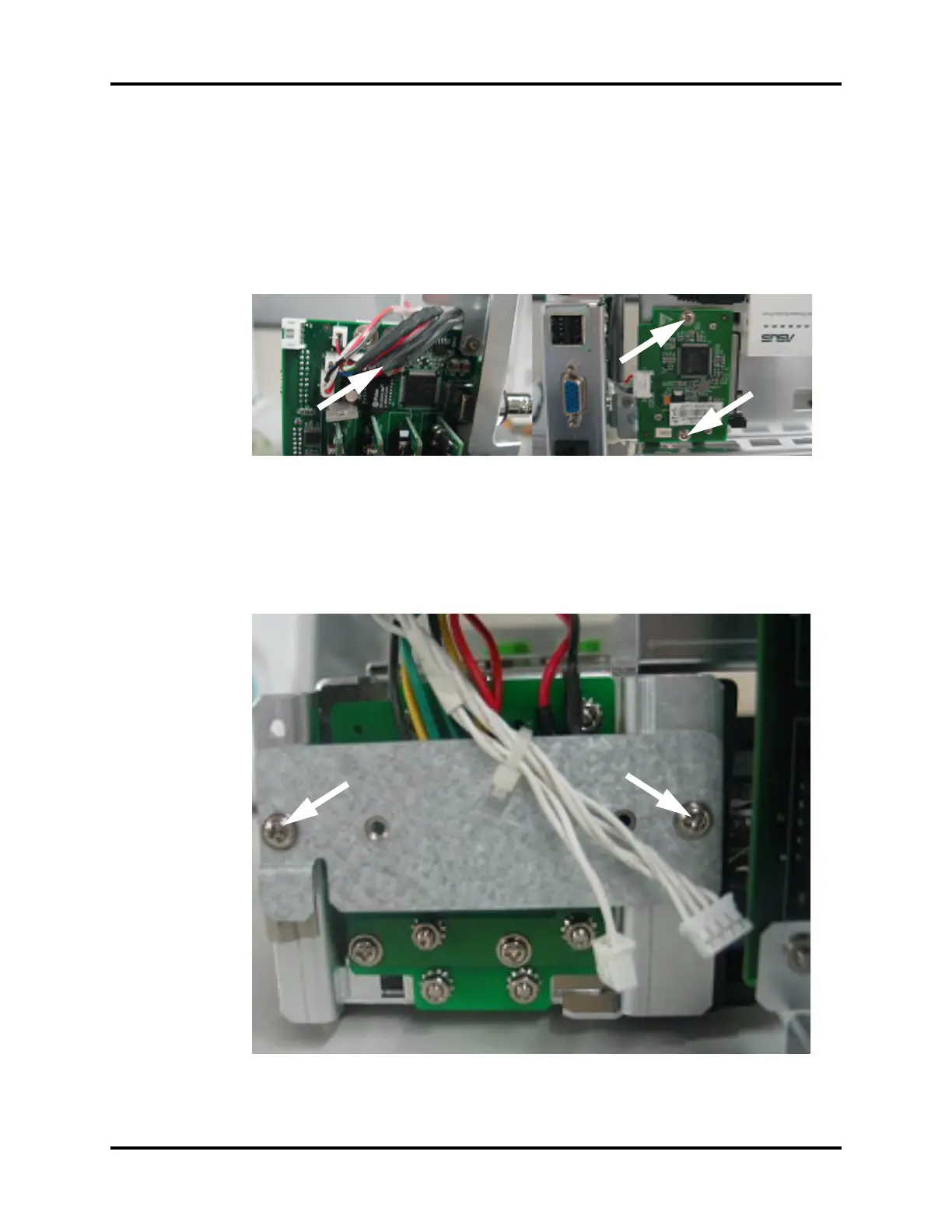

FIGURE 3-33 Remove the CF card assembly
3.5.22 Removal of the Power Board
1. Remove the main frame and multi-parameter board assembly as stated in “Removal of
the Main Frame and Multi-parameter Board Assembly” on page 3-16.
2. Remove the two screws that secure the recorder connecting board and then remove the board.
FIGURE 3-34 Remove the screws securing the recorder connecting board
