Repair Information Disassembly Instructions
3.5.11 Removal of the Multi-parameter board
1. Remove the parameter front panel assembly as stated in “Removal of the Parameter
Front Panel Assembly” on page 3-12.
2. Remove the three screws that secure the multi-parameter board.
3. Remove the multi-parameter board.

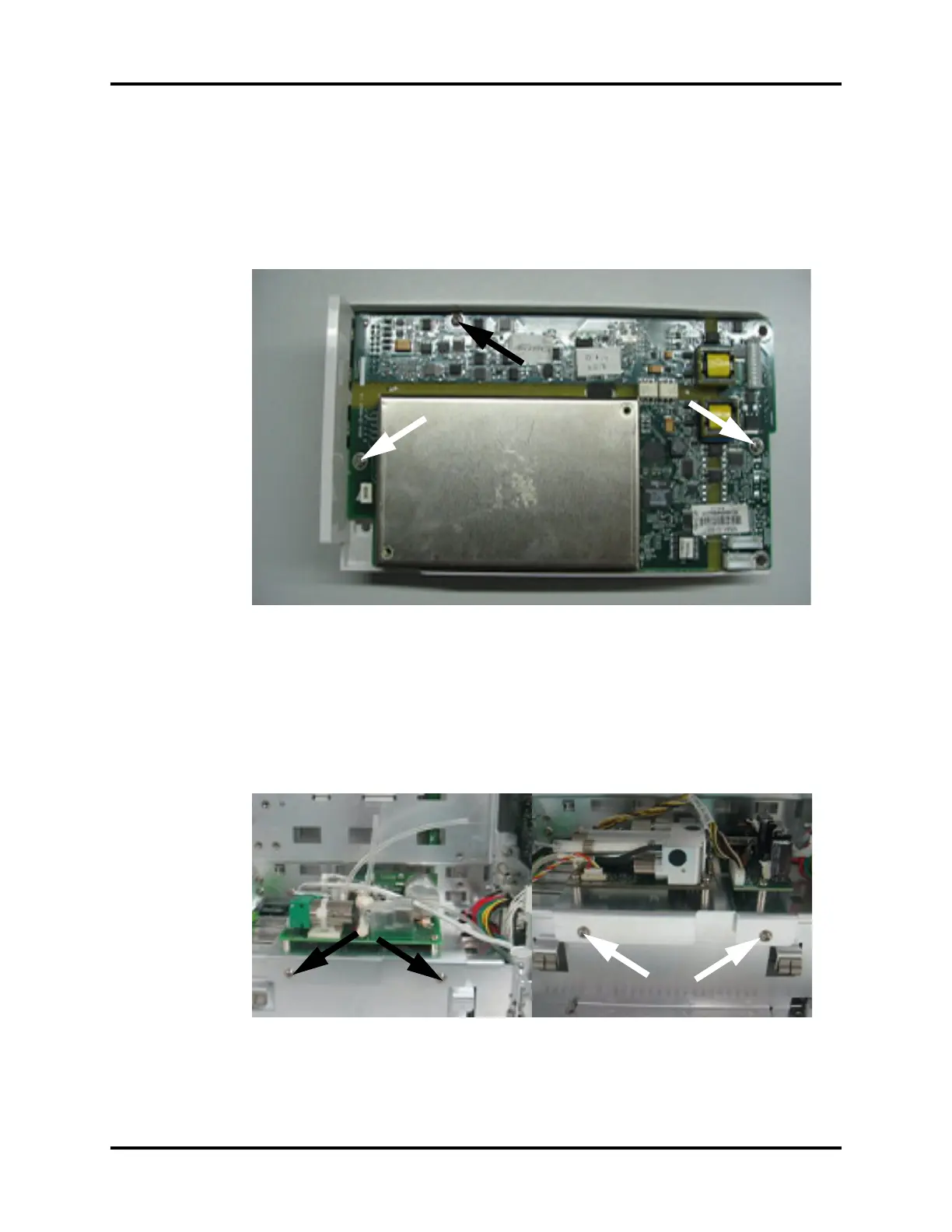

FIGURE 3-19 Remove the multi-parameter board
3.5.12 Removal of the CO
2
Module
1. Remove the multi-parameter board assembly as stated in “Removal of the Multi-
parameter Board Assembly” on page 3-10.
2. Remove the two screws that secure the module to the main frame.
3. Remove the CO
2
module.
4. Remove the water trap connector assembly or microstream CO
2
connector fixture
assembly from the parameter front panel assembly (if necessary).
FIGURE 3-20 DPM CO
2
FIGURE 3-21 Microstream CO
2
