Mindray Passport V Service Manual

DPM CO
2
Module Assembly Isometric Drawings and Parts List
4 - 14 0070-10-0705 Passport V™ Service Manual
4.12 DPM CO
2
Module Assembly

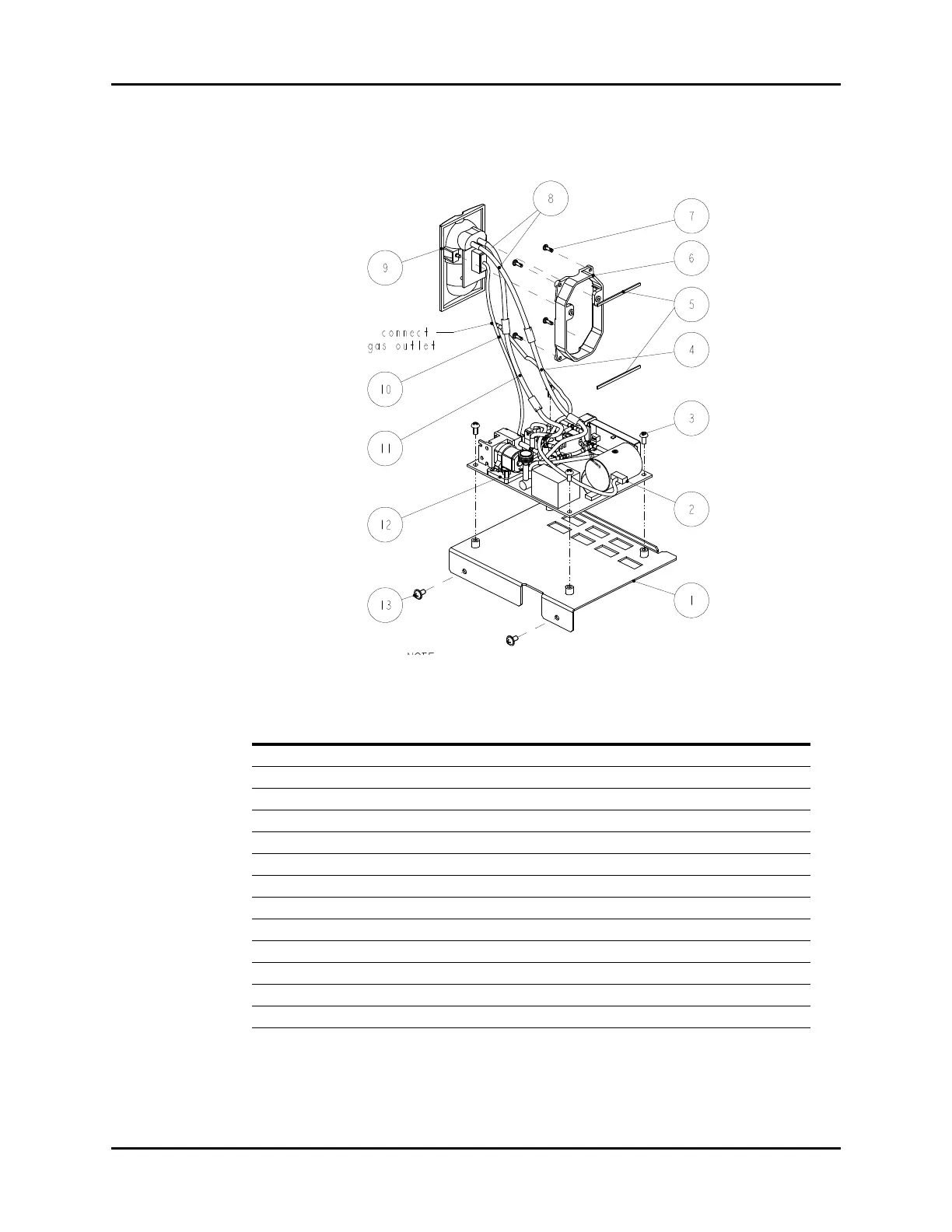

FIGURE 4-11 DPM CO
2
Module
ITEM NO DESCRIPTION PART NUMBER
1 Bracket, Sidestream CO
2
Mounting N/A
2 Cable Assembly, Sidestream CO
2
6100-20-86321
3 Screw, Pan Head Cross Recessed M3X6 N/A
4 Moisture exchanger (Nafion Tube for DPM CO
2
)M02A-10-25936
5 Cushion, water trap receptacle 6100-20-86355
6 Mounting Frame. DRYLINE, Flush 040-000226-00
7 Screw, Pan head Self-Tapping PT2X6 N/A
8 Tubing( ID 1/16’ OD 1/8’) (20feet) 3001-10-07069
9 Flush Mount, Water Trap 040-000225-00
10 Flow restrictor tube M02A-21-25944
11 Cable Assembly, Watertrap cable 009-000101-00
12 Module, CO
2
Host (M02B) N/A
13 Screw, Pan Head W/Washer Phillips M3X6 M04-004012---
