3.5.25 Removal of the Wireless AP
1. Remove the multi-parameter board assembly as stated in “Removal of the Multi-
parameter Board Assembly” on page 3-10.
2. Remove the recorder assembly (if installed) as stated in “Removal of the Recorder
Assembly” on page 3-15.
3. Disconnect the power switch cable from the interface board.
4. Remove the six screws that secure the main frame to the rear housing.

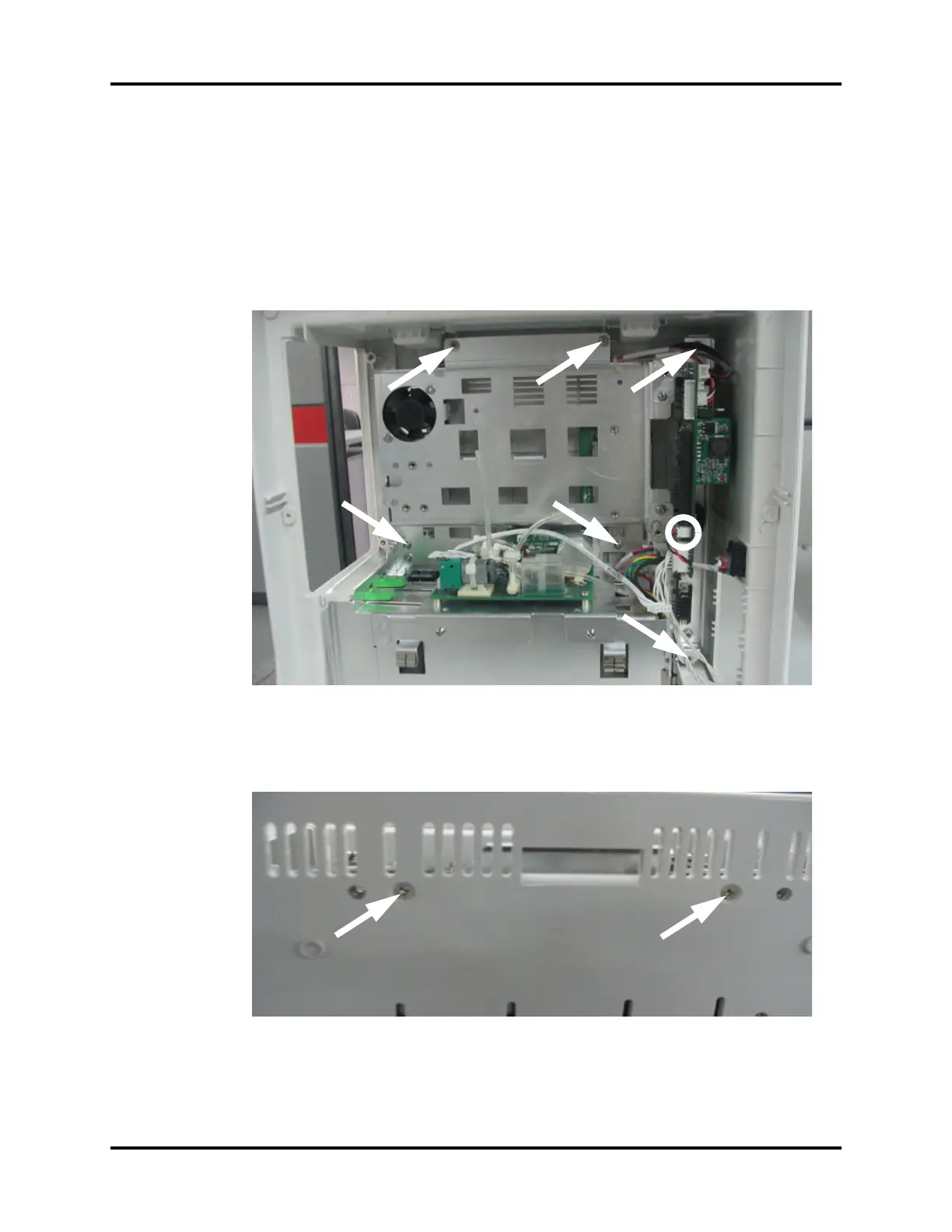

FIGURE 3-46 Remove the screws from the main frame
5. Remove the two screws that secure the main frame from the bottom.
6. Remove the main frame assembly.
FIGURE 3-47 Remove the screws securing the main frame
