Passport V™ Service Manual 0070-10-0705 3 - 17
Repair Information Disassembly Instructions

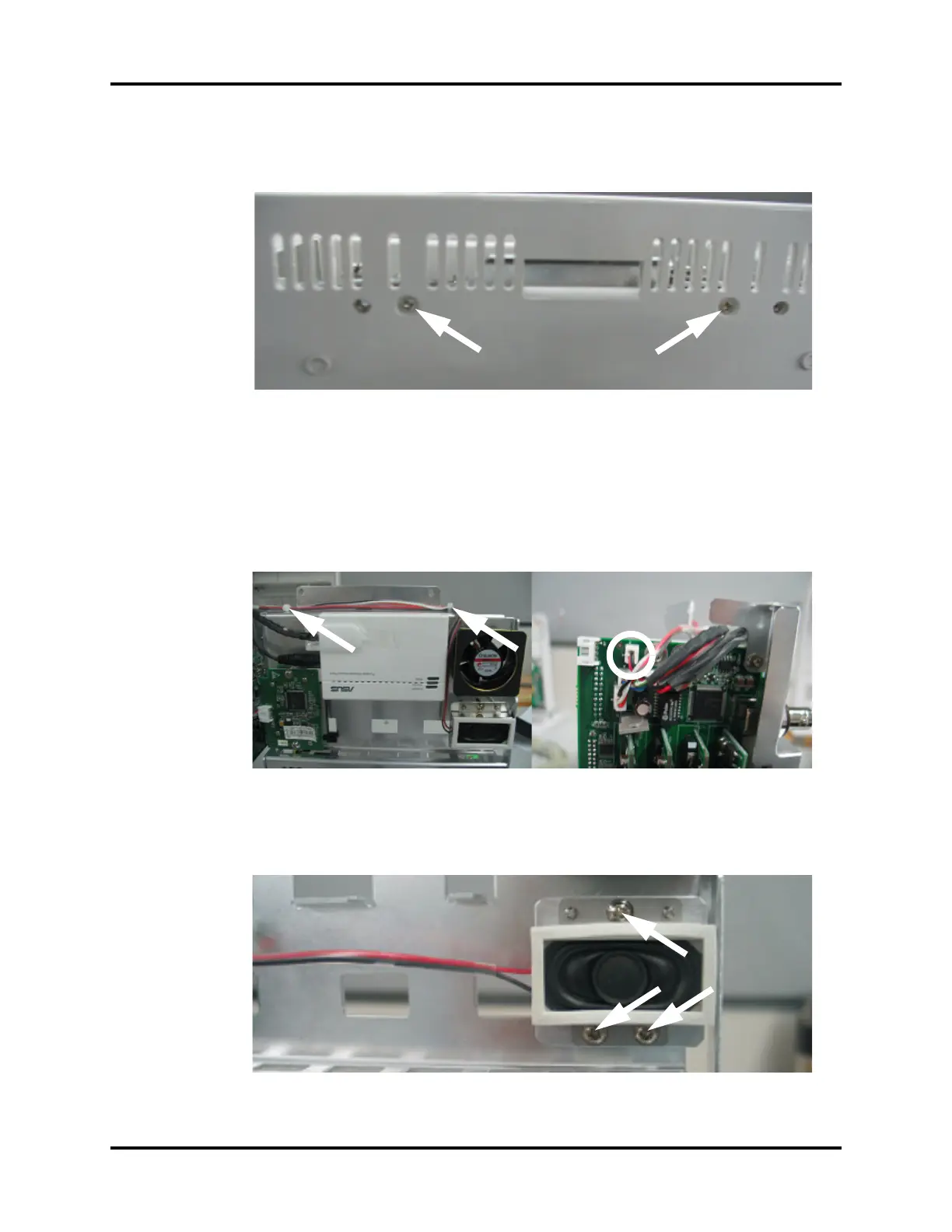

5. Remove the two screws that secure the main frame from the bottom.
6. Remove the main frame and multi-parameter board assembly.
FIGURE 3-28 Remove the main frame and multi-parameter board assembly
3.5.19 Removal of the Speaker Assembly
1. Remove the main frame and multi-parameter board assembly as stated in “Removal of
the Main Frame and Multi-parameter Board Assembly” on page 3-16.
2. Cut the clamp that secures the speaker cable.
3. Disconnect the speaker cable from the interface board.
FIGURE 3-29 Disconnect the speaker cable from the interface board
4. Remove the three screws that secure the speaker.
5. Remove the speaker assembly.
FIGURE 3-30 Remove the speaker assembly
