Disassembly Instructions Repair Information

3 - 22 0070-10-0705 Passport V™ Service Manual

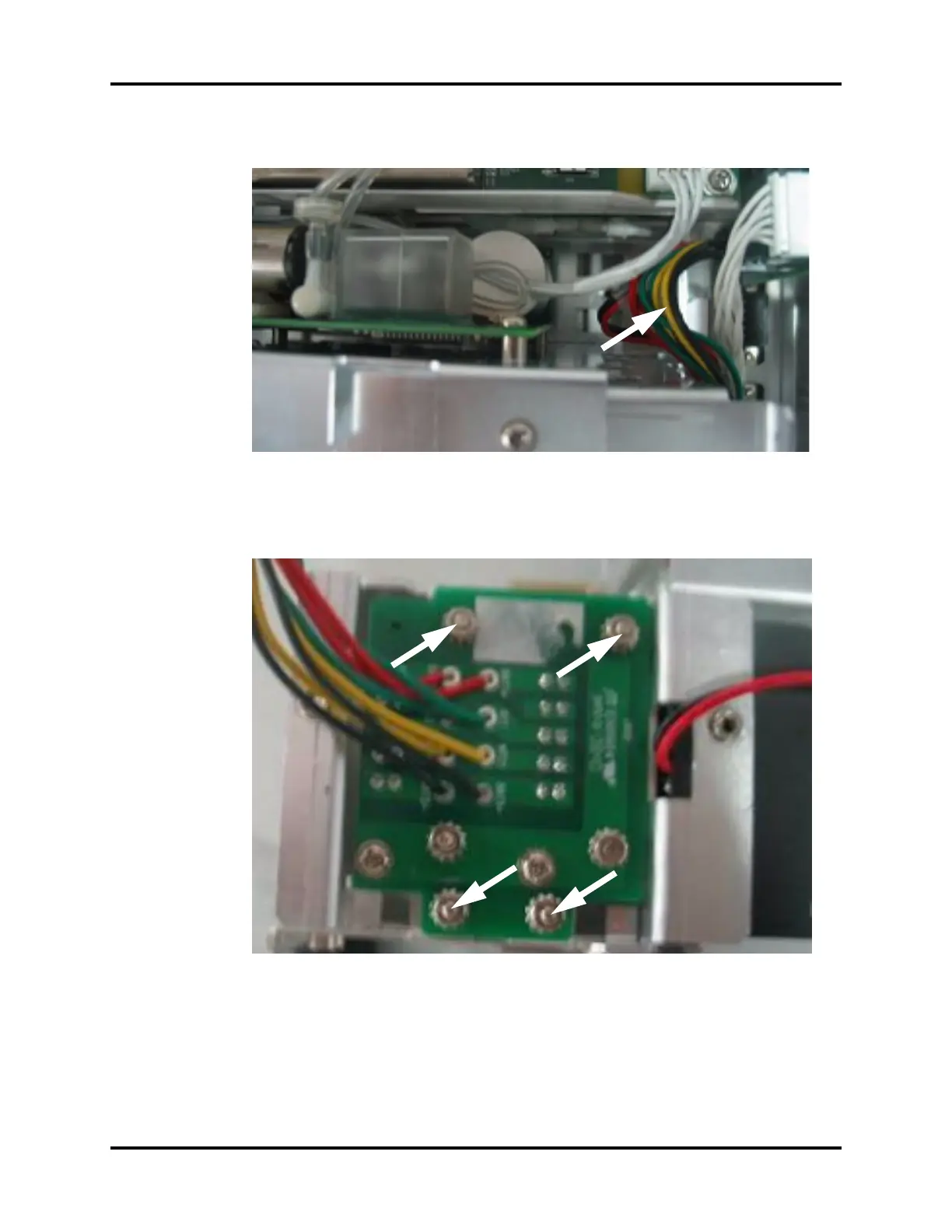

4. Disconnect the Li-ion battery interface board cable from the interface board.

FIGURE 3-39 Disconnect the Li-ion battery interface board cable

5. Remove the four nuts that secure the Li-ion battery interface board assembly.

6. Remove the Li-ion battery interface board assembly.

FIGURE 3-40 remove the Li-ion battery interface board assembly
