2-4 T1 Service Manual

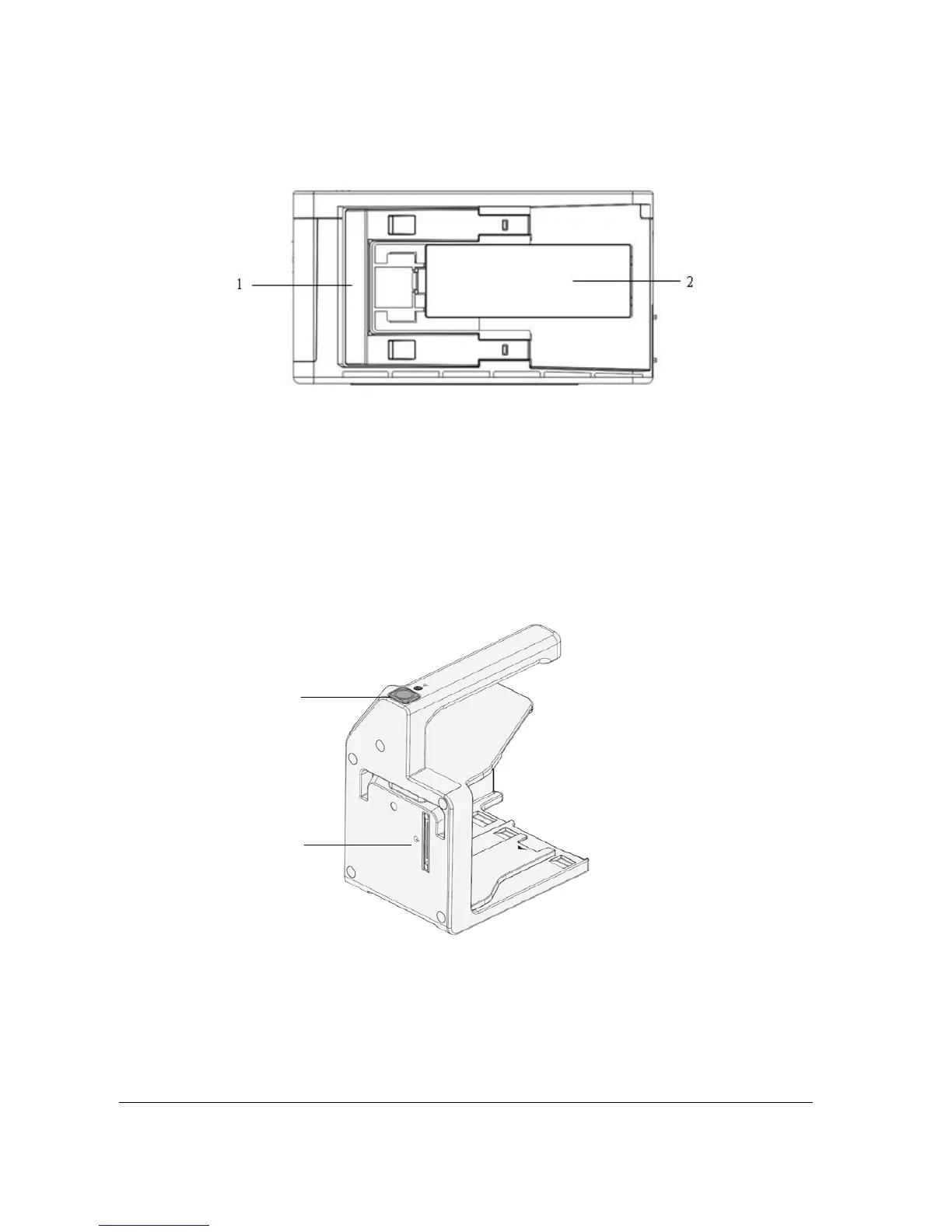

2.2.4 Bottom View
1. Latch: locks T1 when T1 is in use with a Passport 12m or17m patient monitor, T1 docking station, or T1 handle. Pressing
here releases T1 so that you can take it out from the host monitor, T1 docking station, or T1 handle.
2. Battery door
2.3 T1 handle
2.3.1 Left View
1. Release button: pressing this button releases the T1 handle from the T1 docking station.
2. T1 handle multi-pin connector 1: connects the T1 handle and T1 docking station.
1
2
