Mindray T1 - Parts Identification and Replacement

T1 Service Manual 8-1
8 Parts
8.1 Introduction
This chapter contains the exploded views and replaceable parts lists of the main unit and other assemblies. It helps the
service engineers to identify the parts during disassembly of the patient monitor and parts replacement. The part number
listed in the Parts List is only for checking the FRU part number which is also included in the Parts List. Please provide the FRU
part number if you want to purchase spare parts.

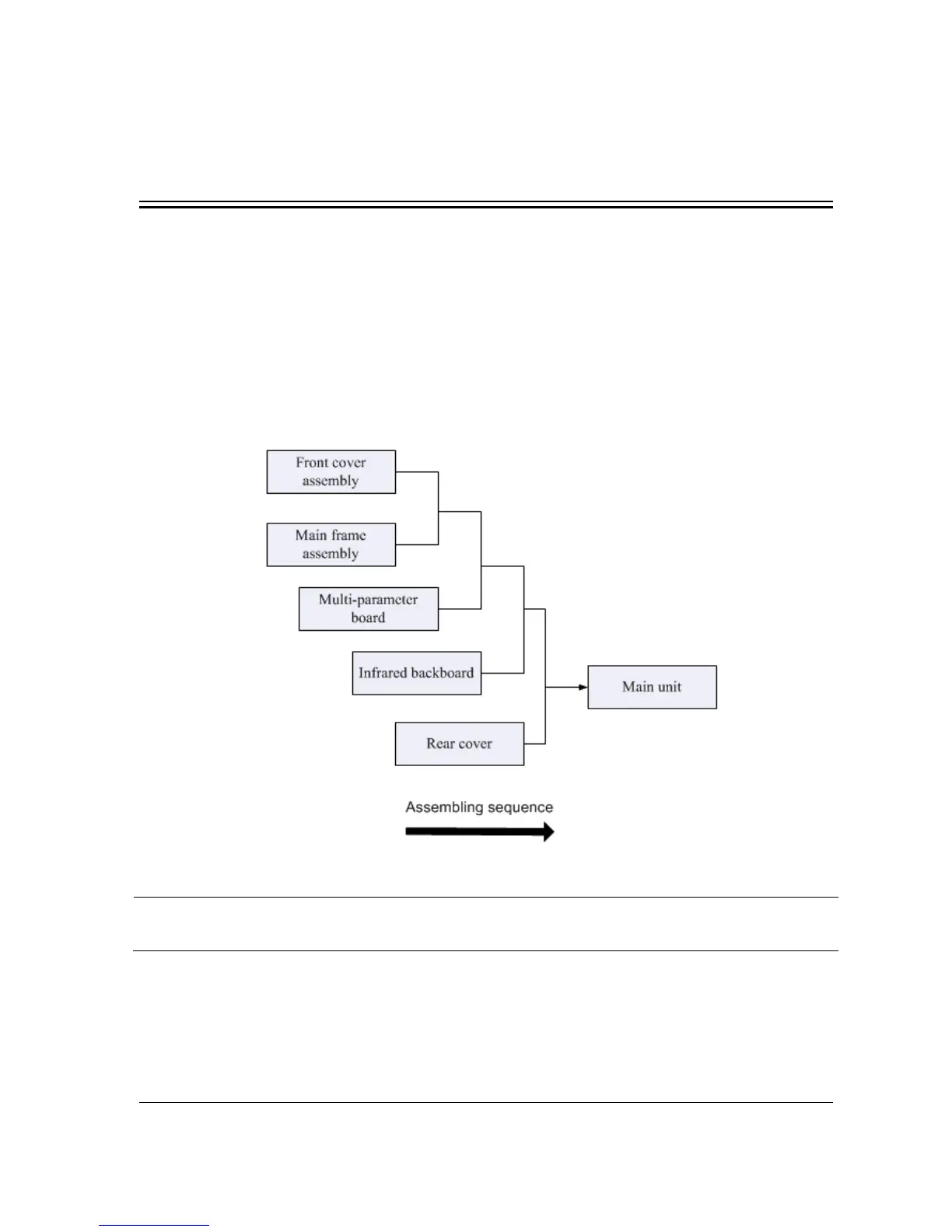

The figure below shows the hardware architecture of the equipment’s main unit.
NOTE
 The part number listed in the Parts List is only for checking the FRU part number which is also included in the
Parts List. Please provide the FRU part number if you want to purchase the spare parts.
