8.5 Main Frame Assembly

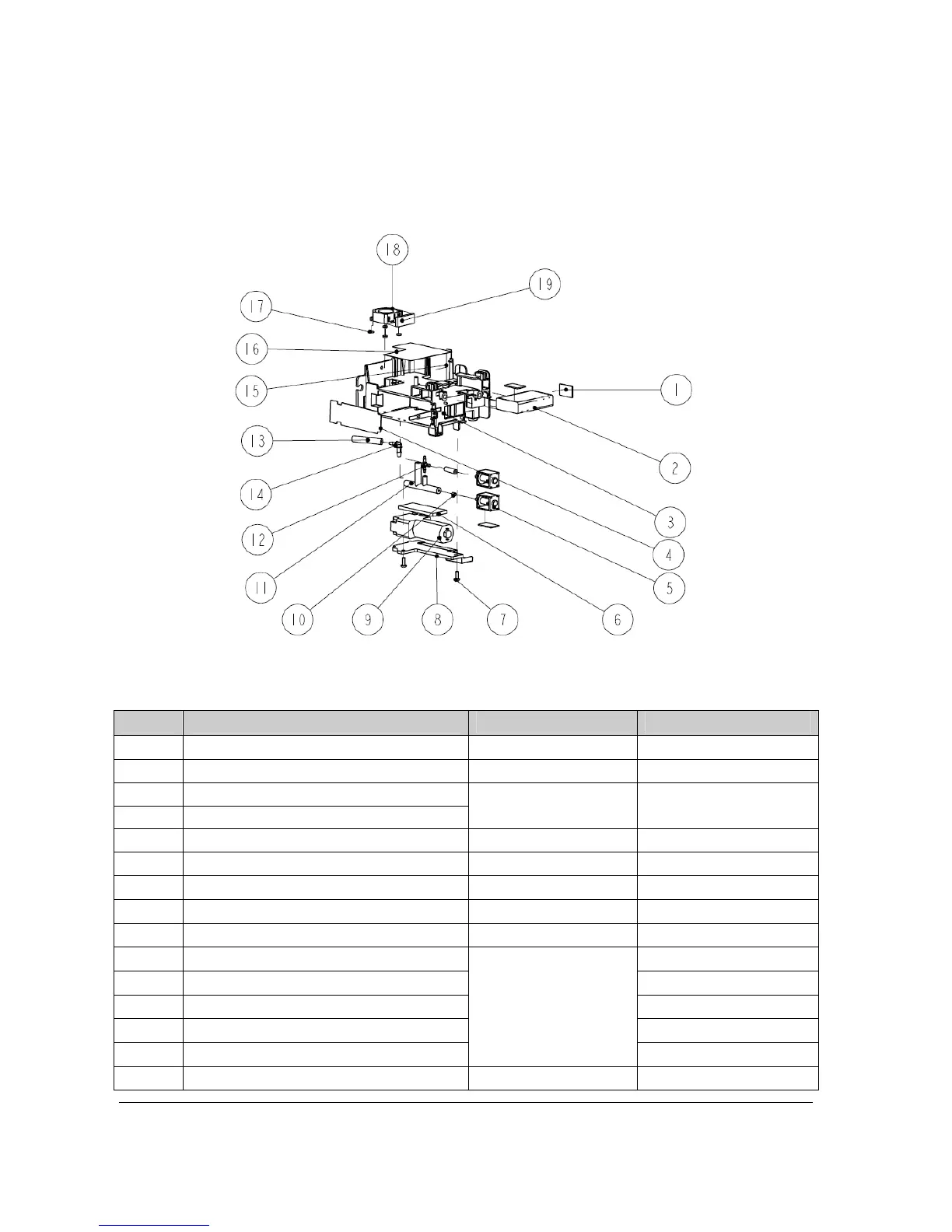

8.5.1 Exploded View

8.5.2 Parts List

SN Description FRU part number Remark

1 Shock absorption block 801-9281-00004-00 /

2 Backup lithium battery 801-9281-00025-00 /

3 Main frame (with tether) 115-021319-00 /

4 Battery direction label

5 Air valve 801-9281-00004-00 /

6 Shock absorption cushion for pump 801-9281-00003-00 /

7 Screw, pan head, Phillips M3×8 / /

8 NIBP mounting board 043-001737-00 /

9 Pump, PI6B07 801-9281-00003-00 /

10 630F reducer 801-9281-00005-00 /

11 4-channel silicone tube /

12 Connector

13 Silicone tube /

14 Connector /

15 Antenna 115-010234-00 (2.4GHz) or /
