Mindray T1 Service Manual

7-2 T1 Service Manual
7.3 Disassembling T1 Main Unit
7.3.1 Removing the Battery Door and Battery
1. Open the battery door. If a battery is installed, take out the battery.
2. Use your finger to press the battery door tether and then detach the battery door, as shown below:
7.3.2 Disassembling the Rear Housing Assembly

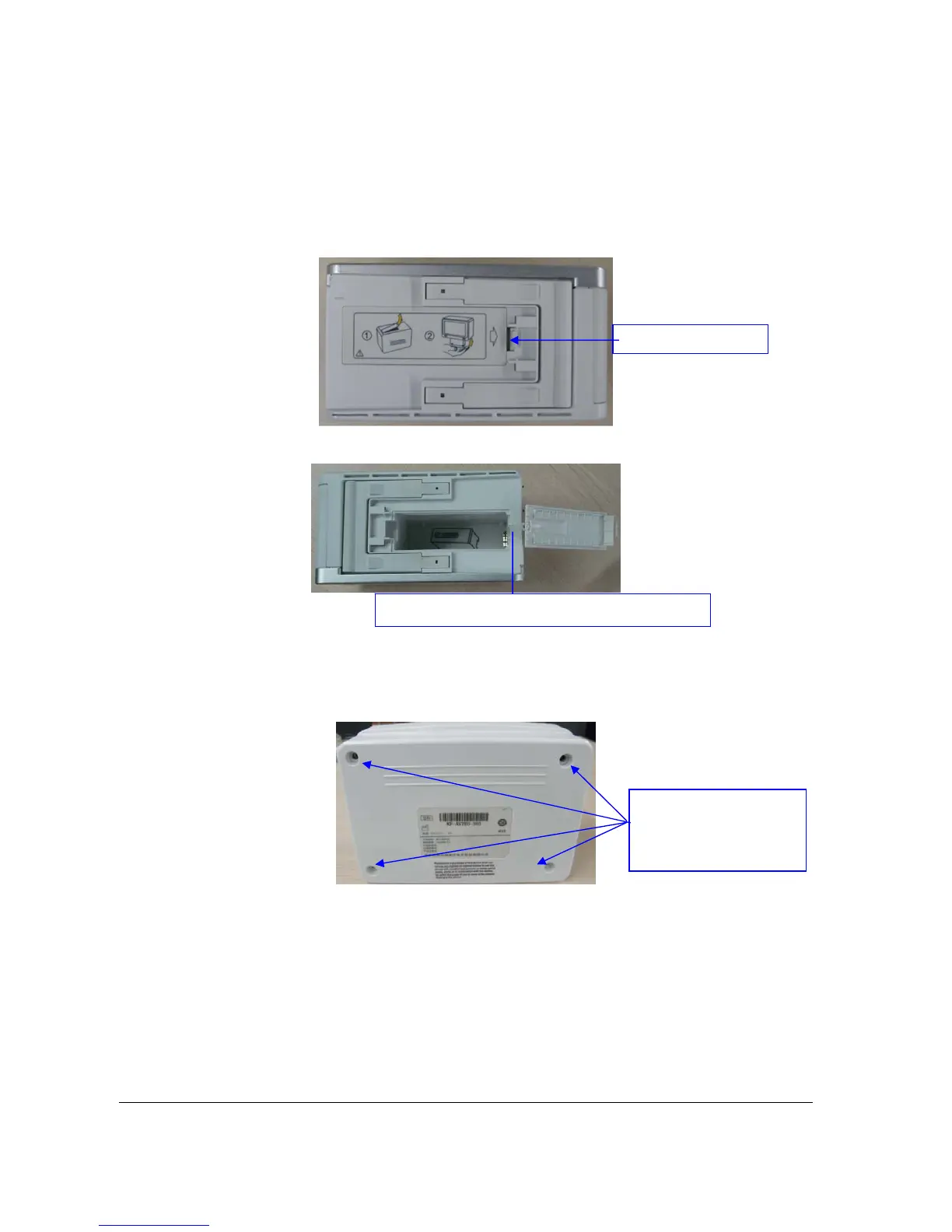

1. Remove the four plastic caps covering the screw holes. Then unscrew the four M3×8 screws as shown below:
Remove the four plastic
plugs and unscrew the four
M3×8 screws
O
p
en the batter
y
door
Press the retaining clip to detach the battery door from the
