Mindray T1 - Main Unit; Exploded View; Parts List

8-2 T1 Service Manual
8.2 Main Unit

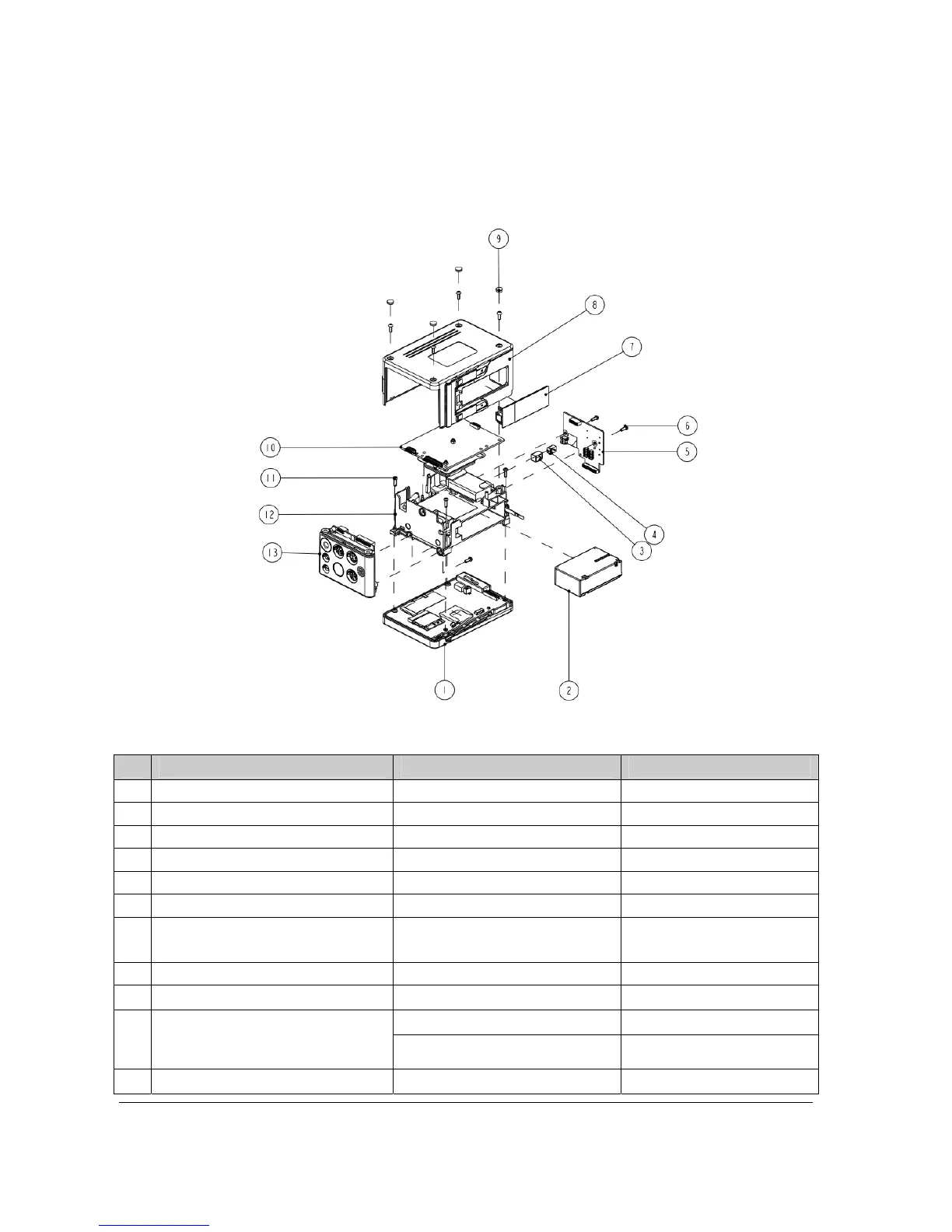

8.2.1 Exploded View
8.2.2 Parts List
SN Description FRU part number Remark
1 Display assembly 115-024223-00 /
2 Lithium battery 115-018016-00 /
3 Power supply waterproof sheath / /
4 DC-IN plug 009-003302-00 /
5 Infrared Communication Backboard 051-000821-01 /
6 Phillips screw, pan head, M3×8 / /
7 Battery door 115-018386-00 The battery door is included in
the rear cover assembly
8 Rear cover assembly 115-018386-00 /
9 Screw hole cover / /
10 Parameter assembly 051-001969-00 Without 12 lead ECG
051-001970-00 With 12 lead ECG
11 Crosshead tapping screw, pan head, / /
