Probes and Biopsy 13-5

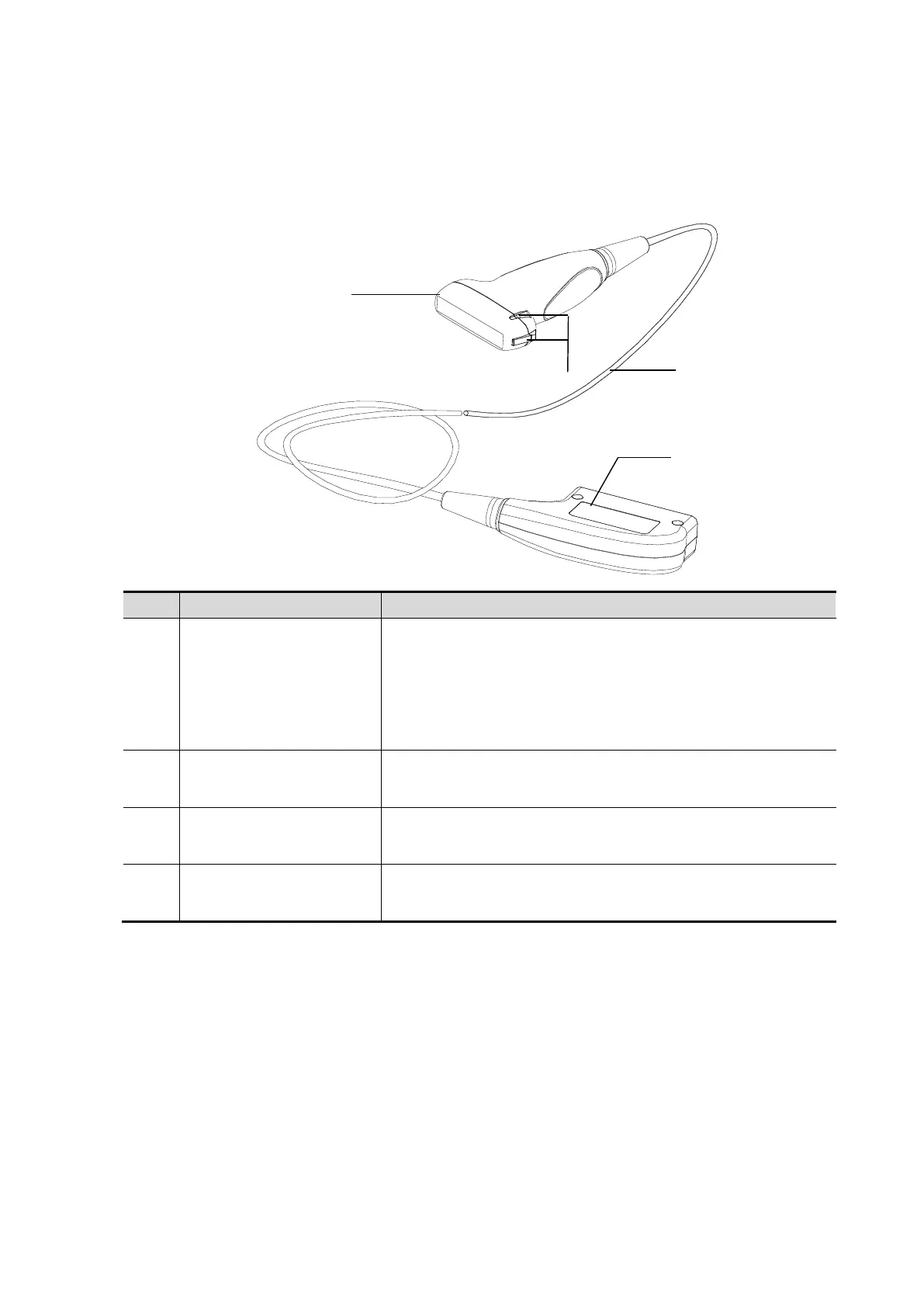

13.1.1 Probe Functions by Part

The basic structures and corresponding functions of probes are basically the same. The following

takes probe L14-6Ns as an example.

No.

Name

Function

<1>

Probe head

Converts the electrical signal to an ultrasonic signal,

focusing the sound beams in a given direction while it

receives the reflected ultrasonic signal and converts it to an

electrical signal for transmission over the cable. The lens on

the surface is the acoustic lens. Apply ultrasound gel to the

acoustic lens for correct operation.

<2>

Needle-guided bracket

fixing tabs and grooves

Provides mounting support for the needle-guided bracket.

<3>

Probe cable

Transmits electrical signals between the probe body and

connector.

<4>

Probe connector

Connects the probe and cable to the ultrasound diagnostic

system.

Tip:

The probes’ structure, marked <2> in the figure above, may vary depending on the corresponding

needle-guided brackets.

<2>

<1>

<3>

<4>

Mindray TE5 User Manual
