2-8 System Overview

 Parts that can be used within patient environment:

 Main unit;

 Probes;

 Footswitch;

 Printers: MITSUBISHI P95DW-N, SONY UP-D25MD, SONY UP-D898MD, SONY UP-

X898MD.

NOTE:

1. If the ultrasound system cannot recognize the SONY UP-X898MD and SONY

UP-D898MD printers automatically, you may need to change the settings on the

printer: push <PUSH ENTER> to enter the main menu and select

[DIGITAL]->[DRIVER], and select [897].

2. USB cable length of the printers should be within 5-6 ft, otherwise the lifting of

the trolley will be affected if the USB cable is too short or even the ultrasound

system and the printer cannot be connected; or it’s not easily to arrange the

cable tidily if the USB cable is too long.

WARNING:

This system complies with IEC60601-1-2:2007, and its RF

emissions meet the requirements of CISPR11 Class B. In a

domestic environment, the customer or user should

ensure the system is connected to Class B peripheral

devices, otherwise RF interference may occur, and the

customer or user must take adequate measures

accordingly.

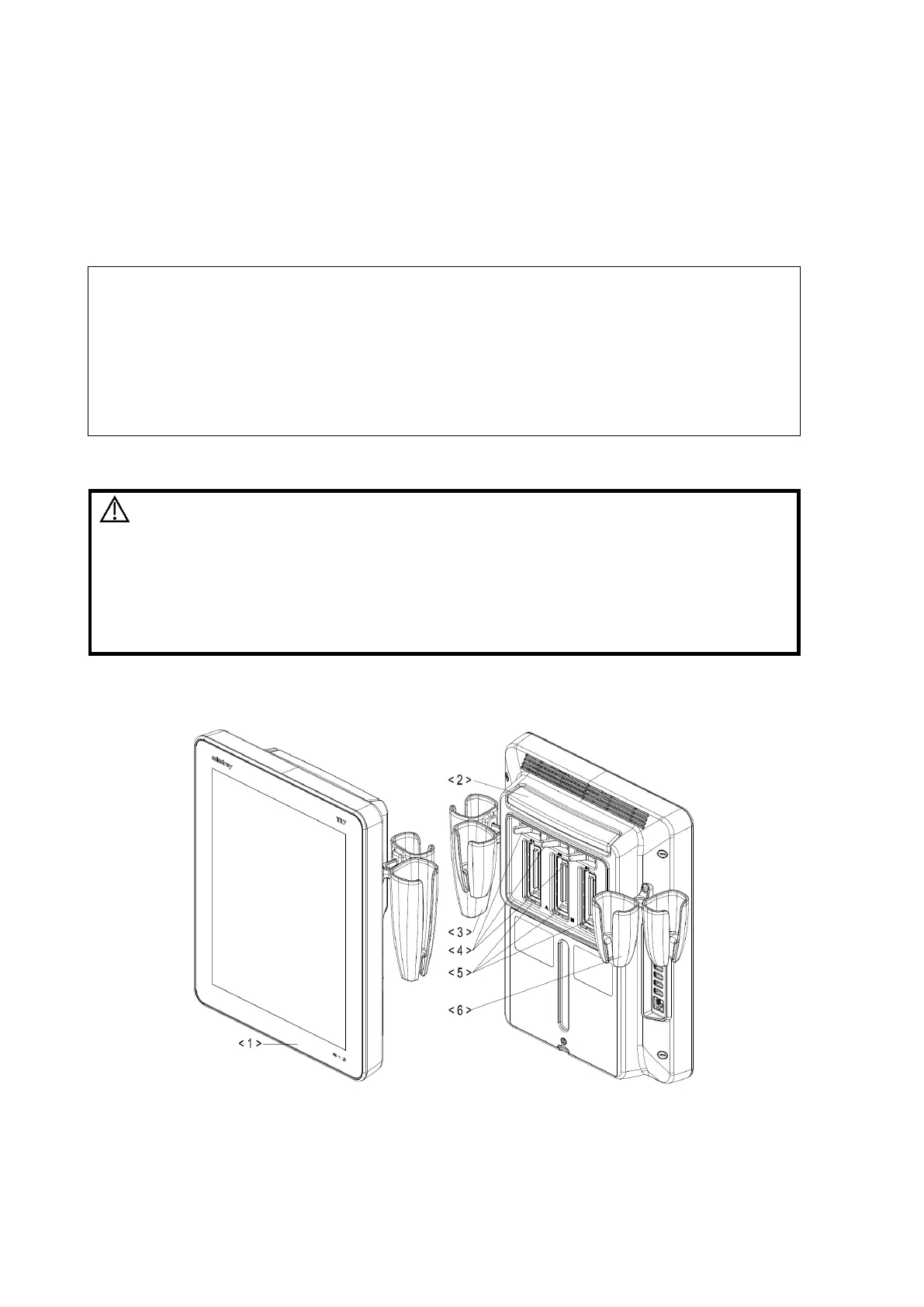

2.4 Introduction of Each Unit
