Mindray TE5 User Manual

Probes and Biopsy 13-21
No.
Name
Description
<1>
Support for needle-
guided bracket
Used for installing the needle-guided bracket on the probe.
<2>
Angle block
Used for determining the angle of the biopsy. There are three
angle block specifications.
<3>
Guiding block
Used for installing biopsy needles. There are five guiding
block specification for different biopsy needles.
<4>
Tab and groove for
the needle-guided
bracket
Corresponding to the tab and groove of the probe.
<5>
Guiding block
specification (13G)
Matched with the corresponding biopsy needle (13G).
<6>
Biopsy needle guiding
hole
Used for installing the biopsy needle.
<7>
Angle block
specification (60°)
The corresponding biopsy angle is 60°.

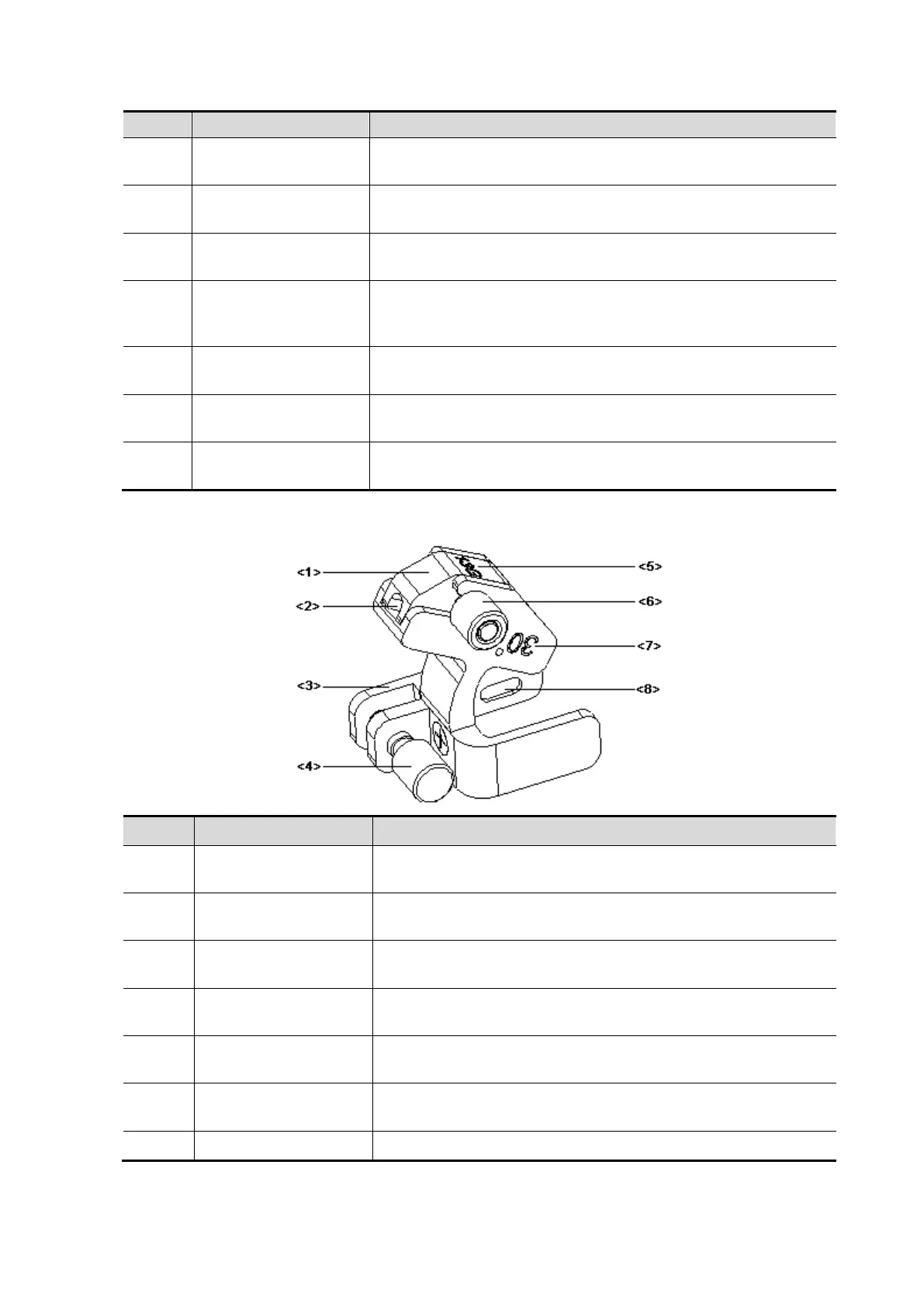

 NGB-010
No.
Name
Description
<1>
Guiding block
Used for installing biopsy needle; there are five specifications
of guiding blocks for different biopsy needles.
<2>
Guiding hole of the
biopsy needle
Used for installing the biopsy needle.
<3>
Support of needle-
guided bracket
Used for installing the needle-guided bracket on the probe.
<4>
Knob of fixing needle-
guided bracket
Used for fixing the needle-guided bracket on the probe.
<5>
Specification of
guiding block (13G)
Matched with the corresponding biopsy needle (13G).
<6>
Knob of fixing the
guiding block
Used for fixing the guiding block.
<7>
Needle guide angle
The needle guide angle of this needle-guided bracket.
