Mindray TE5 User Manual

13-24 Probes and Biopsy

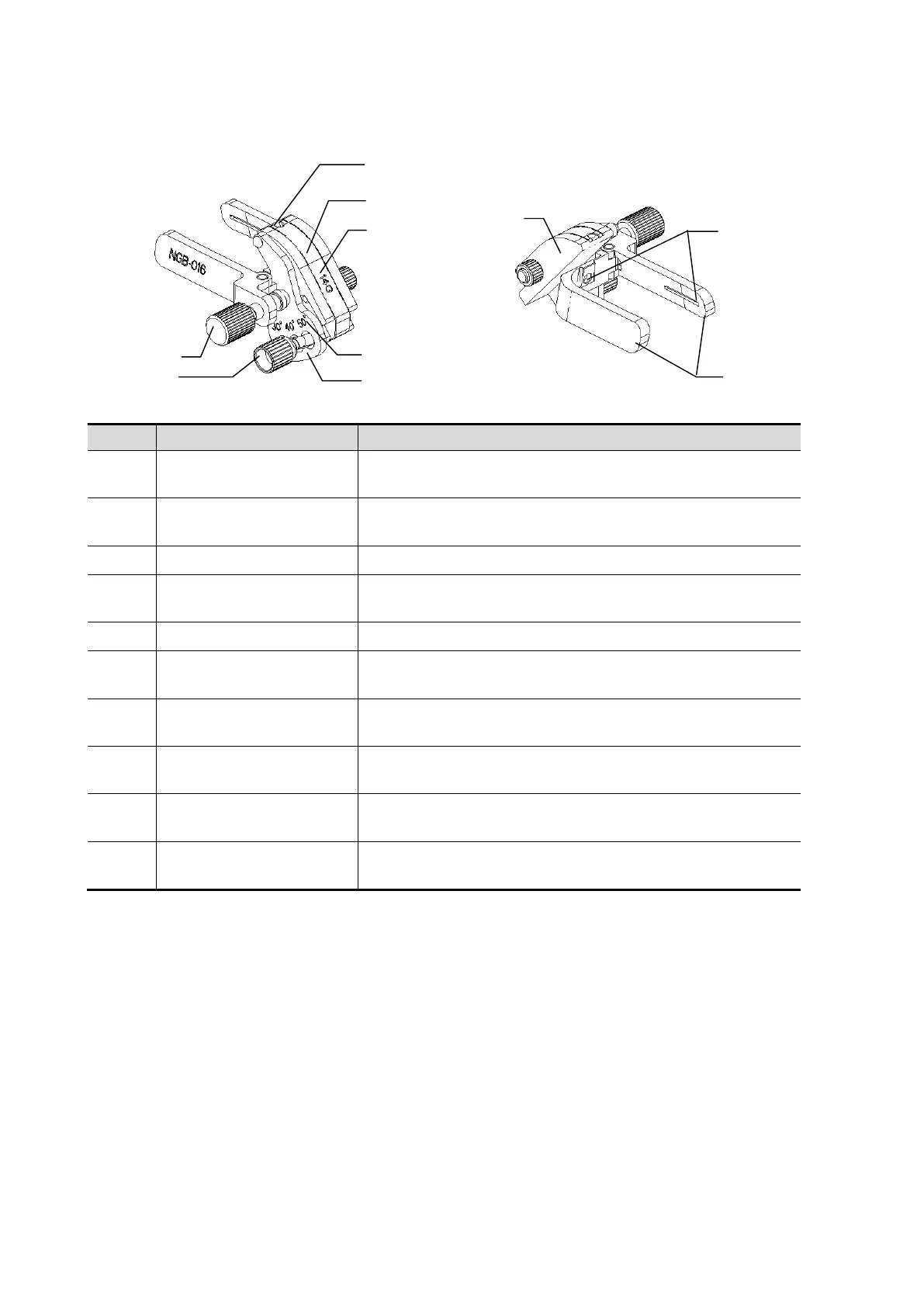

 NGB-016
No.
Name
Description
<1>
Clamp of needle-guided
bracket
Used for installing the needle-guided bracket on the
transducer.
<2>
Groove of the needle-
guided bracket
Matches with the tab of the transducer.
<3>
Angle adjusting base
There are 3 types of angles available to be adjusted.
<4>
Angle shift sign (30°, 40°,
50°)
Matches with the biopsy angle (30°, 40°, 50°).
<5>
Angle pinch nut
Used for fixing the angle lock at a chosen angle.
<6>
Angle block
Determines the angle of the biopsy; different specifications
of blocks can be used.
<7>
Guiding block
Used for installing the needles of different specifications, 5
types of needles are available.
<8>
Specification of guiding
block (14G)
Matched with the corresponding biopsy needle (14G).
<9>
Guiding hole of biopsy
needle
Used for installing the needles.
<10>
Pinch nut of needle-
guided bracket
Used for locking the needle-guided bracket and the
transducer.
<3>
<4>
<5>
<7>
<8>
<9>
<10>
<1>
<6>
<2>
