13-30 Probes and Biopsy
NGB-010

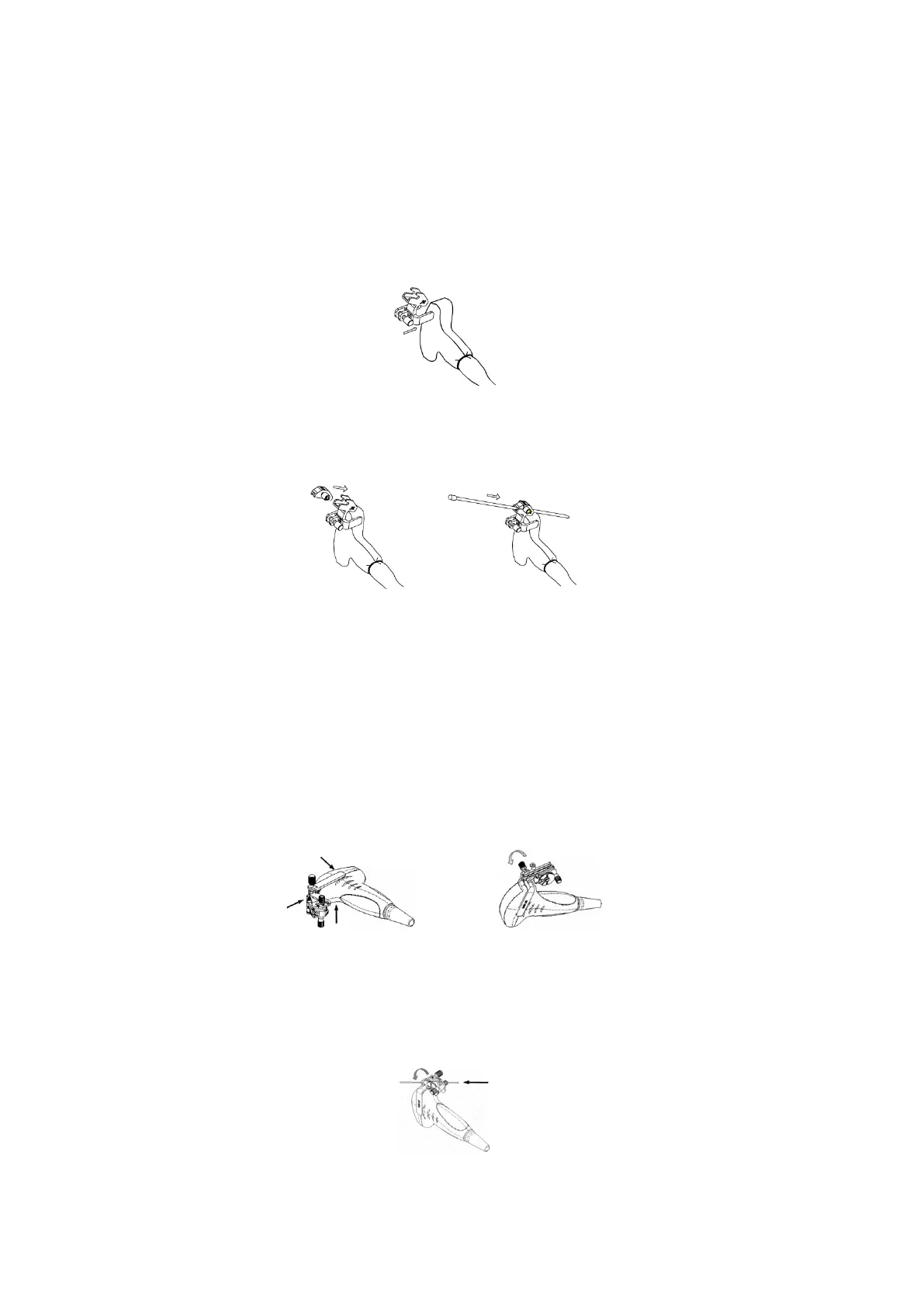

1. Put on the probe cover.
2. Hold the probe by one hand, select proper needle-guided bracket, and hold it with the other
hand, and align the grooves of the needle-guided bracket with the tabs of the probe, then push
the needle-guided bracket forward, making the grooves of the needle-guided bracket to match
with the tabs of the probe. Set the needle-guided bracket at the desired position, turn tightly
the knob of fixing needle-guided bracket to fix the needle-guided bracket.
3. Check manually to confirm the needle-guided bracket is securely installed on the probe.
4. Select a proper guiding block and push it into the groove above the support of needle-guided
bracket, then turn tightly the knob of fixing the guiding block to fix the guiding block on the
support of needle-guided bracket.
5. Insert a biopsy needle with the same specification as that of the guiding block into the hole of
the guiding block.
NGB-011
1. Connect the locating groove on the clamp with the two raised edges on the probe head and
align the locating pit of the clamp with the convex point on the probe head.
2. Turn the grip knob at the tail of the needle-guided bracket tightly.
NGB-015/NGB-022
1. Put on the sterile transducer sheath.
2. Hold the transducer by one hand, select the proper needle-guided bracket, and hold it with the
other hand. Match the groove of the bracket with the tab of the transducer. Amount the bracket
onto the transducer.
3. Screw the pinch nut of the needle-guided bracket to confirm that the needle-guided bracket is
properly installed on the transducer.
4. Adjust the dial scale to the required needle type shift, and then screw the needle fixing nut to
lock the dial scale. (To adjust the dial scale you have to loosen the needle fixing nut first.)
5. Pull the lock pin and close the V-shaped cover to fix the lock pin in the groove of the needle
type adjusting base, so as to install the needle into the guiding hole.
