Mindray TE5 User Manual

13-40 Probes and Biopsy

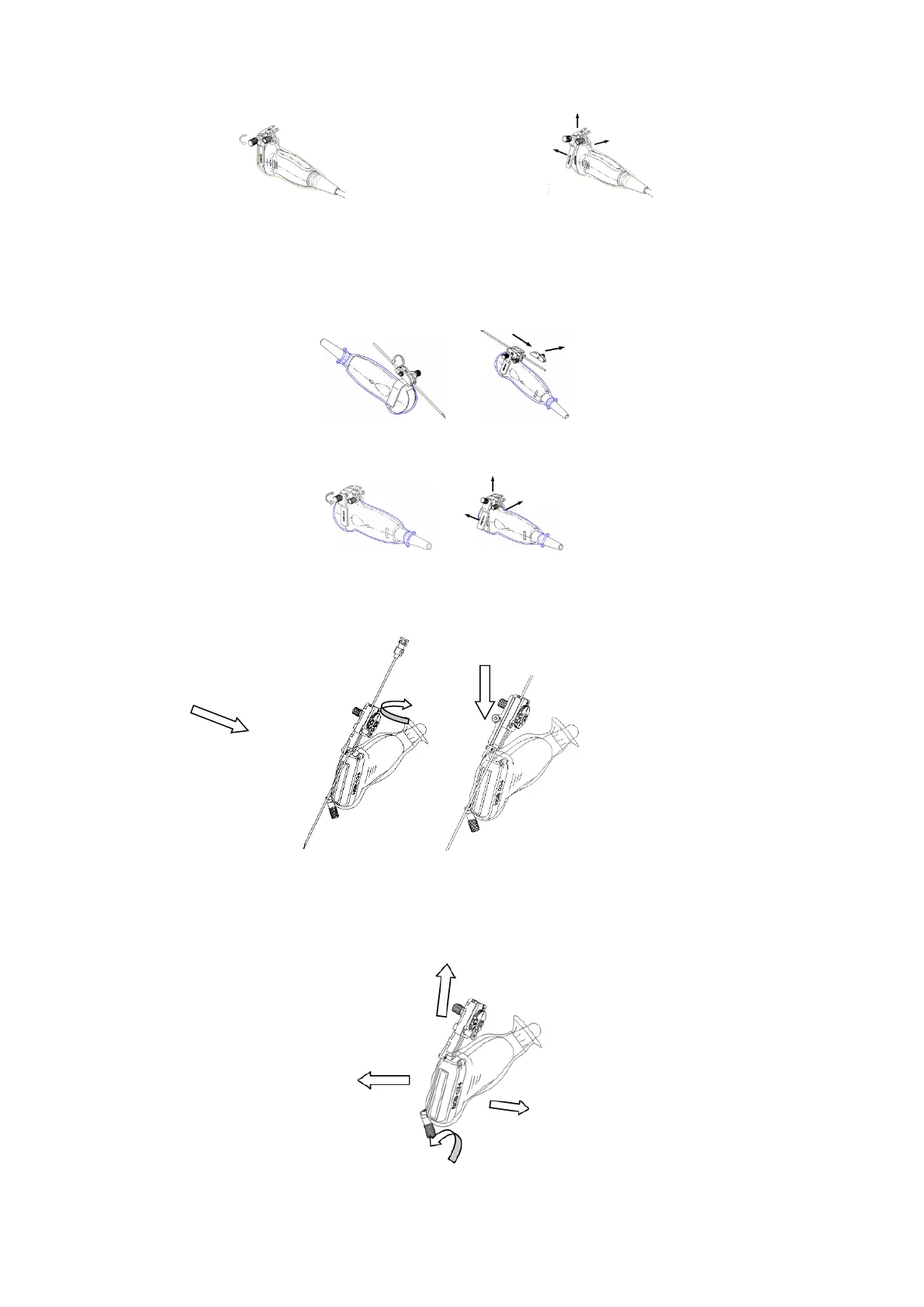

4. Separate the transducer and the needle-guided bracket.
 NGB-018
1. Loosen the guiding block's nut and slightly move the guiding block in the direction of the
needle’s tail.
2. Separate the residual part of the needle-guide bracket and the transducer from the needle.
3. Loosen the bracket's pinch nut and remove the needle-guided bracket from the transducer.
 NGB-034
 Separation of the needle in the operation
1. Pull the lock pin out until the V-shaped cover can be turned and opened up.
2. Turn over the V-shaped cover to expose the needle. Remove the probe and bracket.
 Removing the needle-guided bracket
Screw the pinch nut to release the needle-guided bracket.
