Barcode Reader C-5
2. Aim the reader at the barcode. Press the trigger.

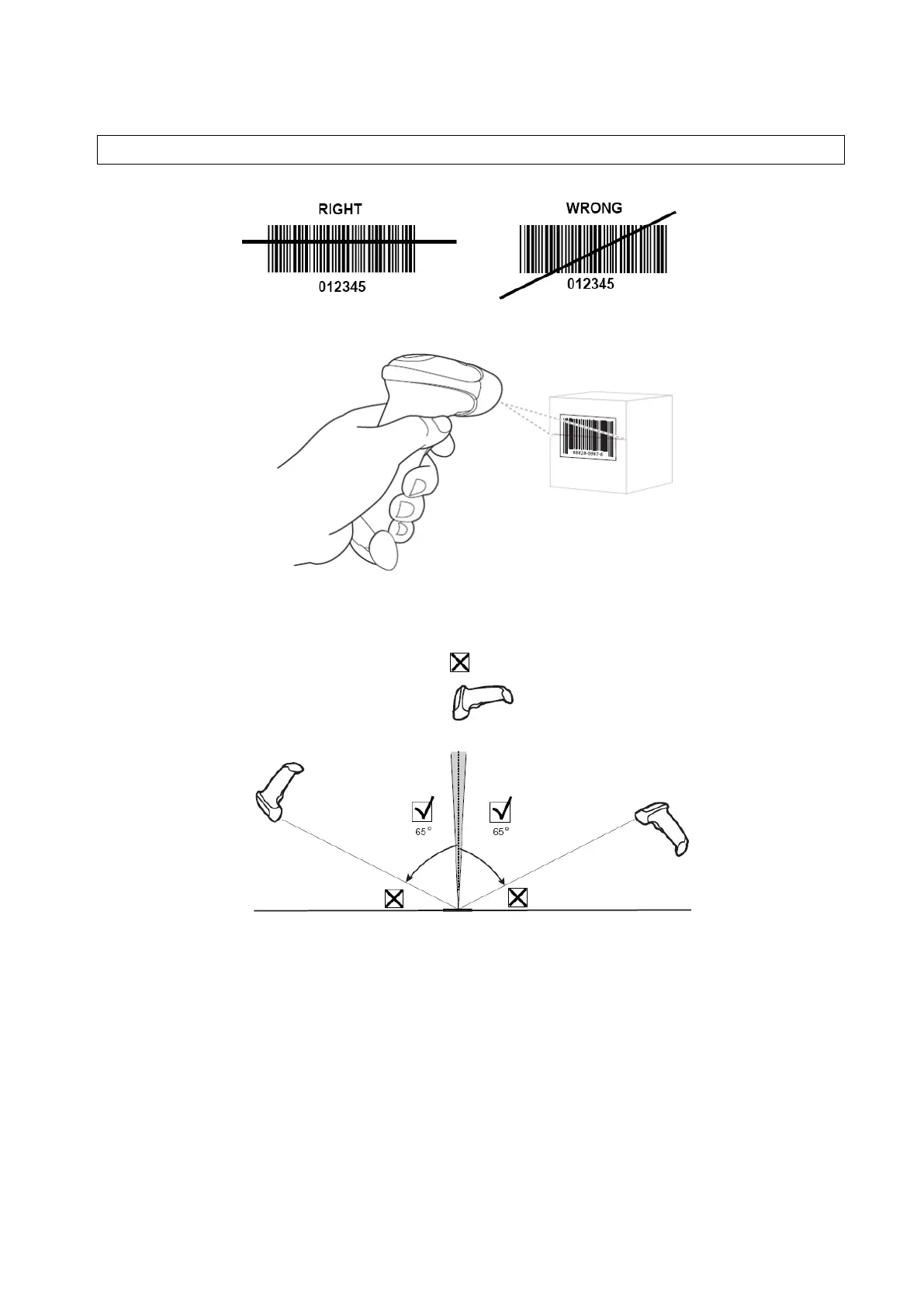

Ensure the scan line crosses every bar and space of the symbol, see the figure below.
3. If decoding is successful, the reader beeps and the LED turns green.
Tip: Do not hold the reader directly over the barcode. Laser light reflecting directly back into the reader
from the barcode is known as specular reflection. Specular reflection can make decoding difficult. You
can tilt the reader up to 55° forward or backward and achieve a successful decoding
