Mindray TE5 User Manual

D-2 Trolley and Accessories

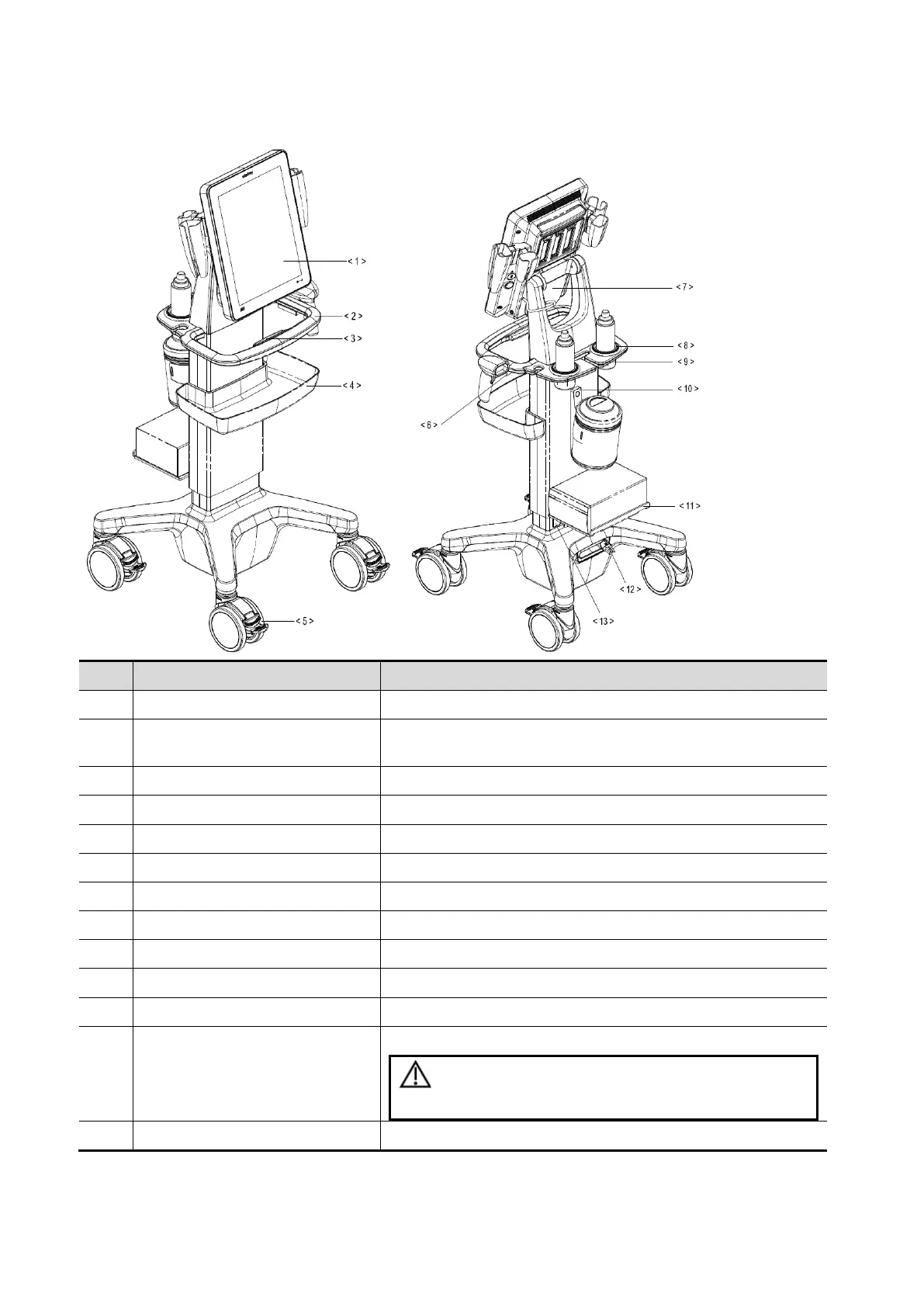

D.1.2 Introduction of Each Unit
No.
Name
Function
<1>
Main unit of ultrasound system
/
<2>
Trolley handle
Used for ascending/descending the trolley or moving the
trolley.
<3>
Height lever
Press to adjust the height of the stand.
<4>
Storage bin
Used for keeping the cases, towelette, etc.
<5>
Caster
Used for securing or moving the system.
<6>
Reader support
Used for placing the barcode reader.
<7>
Main unit support
Used for fixing the ultrasound system.
<8>
Gel holder
Used for placing the gel.
<9>
Cable management slot
Used for organizing the probe cables and peripheral cables.
<10>
Towelette holster
Used for placing the towelette container.
<11>
Printer bracket
Used for placing the printer.
<12>
Retractable cable
AC power supply cable.
CAUTION:
DO NOT insert fingers into the gap
next to the plug in case of injury.
<13>
Power outlet
Supplies the power for peripheral devices.
Retractable cable and telescoping mechanism of the trolley are options before factory. For details,
please contact Mindray service engineer.
