4. Device installation | 4.3 - Hardware construction | 39

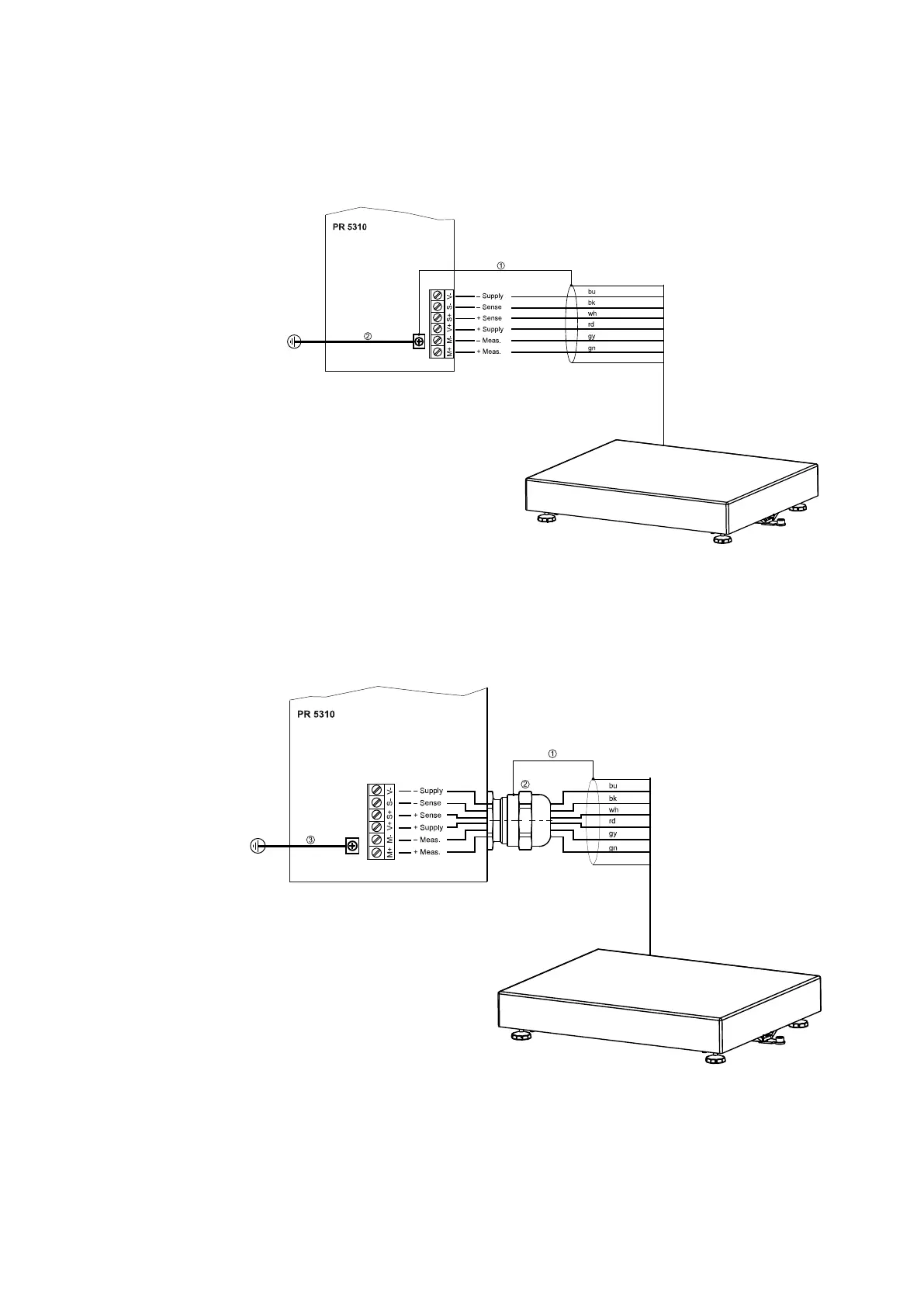

4.3.3.2 Connecting an analog weighing platform with a 6-wire cable
Connection example Panel device
①Screen
②Potential equalization
Connection example table-top device
①Screen
②Cable gland
③Potential equalization
